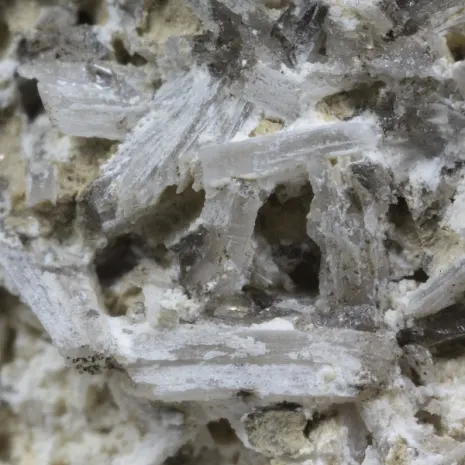

Viitaniemiite

NaCaAl(PO4)F3
IMA status
  • Approved
IMA symbol
Vtm
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-043
  • Viitaniemiiet

Where it forms, where it's found

Geological setting

Granite pegmatite

Type locality
Viitaniemi pegmatite
  1. Eräjärvi area
  2. Orivesi
  3. Pirkanmaa
  4. Finland

61.5844°, 24.6772°

13recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Gray-white
Cleavage
Very Good

(101)

Density
3.245 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 75 – 81° · 2V calc = 74 – 81°
Refractive index
1.532 – 1.571
Surface relief
Moderate
Principal indices
nα 1.532 – 1.557 · nβ 1.544 – 1.565 · nγ 1.551 – 1.571
Dispersion
r > v strong
Extinction
Y = b; X ∧ c = 24°.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0165
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]165 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation165 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 6.83 Å · b = 7.14 Å · c = 5.44 Å
Cell angles
β = 109.37 °
Ratio a:b:c
1 : 1.045 : 0.796
Z
1
Twinning

On (100), twin and composition plane, polysynthetic, common.

Type-locality form

An inclusion in eosphorite and as a rim around a grain of morinite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen415.99963.996
26.44%
9FFluorineFluorine318.99856.994
23.55%
20CaCalciumCalcium140.07840.078
16.56%
15PPhosphorusPhosphorus130.97430.974
12.80%
13AlAluminiumAluminium126.98226.982
11.15%
11NaSodiumSodium122.99022.990
9.50%
Total242.014100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1977-043
  • Viitaniemiiet

In other languages

German
IMA 1977-043 · Viitaniemiit
Italian
Viitaniemiite

Classification

Strunz
10th ed.

8.BL.15

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BLWith medium-sized and large cations, (OH, etc.):RO4 = 3:1Group
  • 8.BL.15ViitaniemiiteSpecies
Dana
8th ed.

41.03.05.01

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.03(AB)3(XO4)ZqType
  • 41.03.05— unnamed intermediate level —Group
  • 41.03.05.01ViitaniemiiteSpecies
CIM

22.1.19

  • 22Phosphates, Arsenates or Vanadates with other AnionsClass
  • 22.1Phosphates, arsenates or vanadates with fluorideGroup
  • 22.1.19ViitaniemiiteSpecies

Literature, links & citation

Citations
  1. 1981Cabri, Louis J., Fleischer, Michael, Pabst, Adolf (1981) New Mineral Names. American Mineralogist, 66 (9-10) 1099-1103
  2. 1981Lahti, Seppo I. (1981) On the granitic pegmatites of the Eräjärvi area in Orivesi, southern Finland. Bulletin de la Commission Géologique de Finlande Vol. 314. Geological Survey of Finland
  3. 1983Ramik, R. A., Sturman, B. D., Roberts, A. C., Dunn, P. J. (1983) Viitaniemiite from the Francon Quarry, Montreal, Quebec. The Canadian Mineralogist, 21 (3) 499-502
  4. 1984Pajunen, Aarne, Lahti, Seppo I. (1984) The crystal structure of viitaniemiite. American Mineralogist, 69 (9-10) 961-966
  5. 1991Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva (1991): 120: 74.
