Volkovskite

KCa4B22O32(OH)10Cl · 4H2O
IMA status
  • Approved
IMA symbol
Vlk
Discovered
1966
Also known as
  • Volkovskiet

Where it forms, where it's found

Geological setting

Evaporite deposits.

Type locality
Inder B deposit and salt dome
  1. Inder District
  2. Atyrau Region
  3. Kazakhstan

48.5167°, 51.9500°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colourless · pink · varying from pale to deep orange
Tenacity
brittle
Cleavage
Perfect

(010) and (100)

Fracture
Splintery
Density
2.27 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 14.6° · 2V calc = 14.4°
Refractive index
1.523 – 1.605
Surface relief
Moderate
Principal indices
nα 1.523 – 1.539 · nβ 1.539 – 1.540 · nγ 1.596 – 1.605
Dispersion
No dispersion
Extinction
Y = b; Z ∧ a = 31°.
Michel-Lévy diagramhighlighted lineδ = 0.0695
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]695 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation695 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#1
Cell parameters
a = 6.575(2) Å · b = 23.921(8) Å · c = 6.522(2) Å
Cell angles
α = 90.58(3) ° · β = 119.10(2) ° · γ = 95.56(3) °
Ratio a:b:c
1 : 3.638 : 0.992
Z
1
Morphology

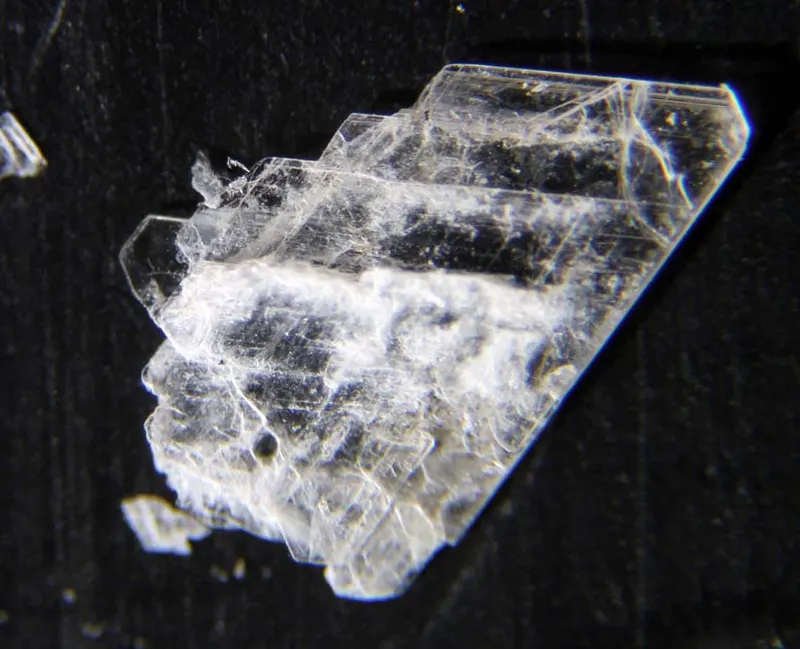

The crystals possess perfect cleavages occurring as thinly layered pseudohexagonal/triangular, elongated platy masses. New Brunswick material: Pseudohexagonal, platy crystals tabular on (010). Forms identified: (010), (010), (001), (001), (281), (281) and (181).

Type-locality form

Pseudohexagonal to triangular crystals and micaceous plates, to 1 cm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen4615.999735.954
59.99%
5BBoronBoron2210.810237.820
19.38%
20CaCalciumCalcium440.078160.312
13.07%
19KPotassiumPotassium139.09839.098
3.19%
17ClChlorineChlorine135.45035.450
2.89%
1HHydrogenHydrogen181.00818.144
1.48%
Total1226.778100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Volkovskiet

In other languages

German
Volkovskit
Italian
Volkovskite
Chinese
沃硼钙石

Classification

Strunz
10th ed.

6.EC.20

  • 6BoratesClass
  • 6.EPentaboratesDivision
  • 6.ECPhyllo-pentaboratesGroup
  • 6.EC.20VolkovskiteSpecies
Dana
8th ed.

26.05.16.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.05PentaboratesType
  • 26.05.16— unnamed intermediate level —Group
  • 26.05.16.01VolkovskiteSpecies
CIM

10.1.14

  • 10Borates with other anionsClass
  • 10.1Borates with halideGroup
  • 10.1.14VolkovskiteSpecies

Literature, links & citation

Citations
  1. 1966Fleischer, M. (1966) New Mineral Names. American Mineralogist, 51 (9-10) 1546-1554
  2. 1966Kondrat’eva, V.V., Ostrovskaya, I.V. & YarzhemskiiI, YA. (1966): Volkovskite, a new hydrous calcium borate. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva 95, 45-50.
  3. 1966Kondrat’eva, V.V., Ostrovskaya, I.V. & YarzhemskiiI, YA. (1966): Volkovskite, a new hydrous calcium borate. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva 95, 45-50 (in Russian).
  4. 1989Simmons, W.B., Webber, K.L. (1989) Volkovskite: new data from an occurrence in the subsurface, Clarke Co., Alabama. Rochester Mineral. Symposium Program Abs., 16, 16.
  5. 1990Mandarino, Jospeh A., Rachlin, Alan L., Dunn, Pete, J., Le Page, Yvon, Back, Malcolm E., Murowchick, Bernard L., Ramik, Robert A., Falls, Robert B. (1990) Redefinition of volkovskite and its description from Sussex, New Brunswick. The Canadian Mineralogist, 28 (2) 351-356
