Vorontsovite

(Hg5Cu)TlAs4S12
IMA status
  • Approved
IMA symbol
Vor
Discovered
2016
IMA approved
2016
Also known as
  • IMA2016-076
  • Vorontsoviet

Where it forms, where it's found

Type locality
Vorontsovskoe deposit (Vorontsovsk gold deposit
  1. Vorontsovka deposit)
  2. Tur'insk
  3. Turya river
  4. Serovsky District
  5. Sverdlovsk Oblast
  6. Russia

59.6514°, 60.2156°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Black
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
5.140 g/cm³

Optical

Pleochroism
Non-pleochroic
Optical colour
Light gray
Bireflectance
None observed
Internal reflections
None observed
Tropism
Isotropic
Reflectance R%
(25.62) 400, (25.82) 420, (25.97) 440, (26.20) 460, (26.31) 470, (26.42) 480, (26.54) 500, (26.95) 520, (27.21) 540, (27.30) 546, (27.55) 560, (27.87) 580, (28.11) 589, (28.30) 600, (28.70) 620, (29.06) 640, (29.28) 650, (29.47) 660, (29.98) 680, (30.44) 700
UV response
None observed
Reflected-light panel
27.7 %isotropic · single curve
Specimen sRGB 195, 132, 69
White reference100 % reflector under same lamp
Bireflectance
None observed
Reflected colour
Light gray
Internal reflections
None observed

Crystallography

Crystal system
Isometric
Space group
#210
Cell parameters
a = 10.2390(7) Å
Unit cell volume
1073.43 ų
Z
2
Parting
None observed
Type-locality form

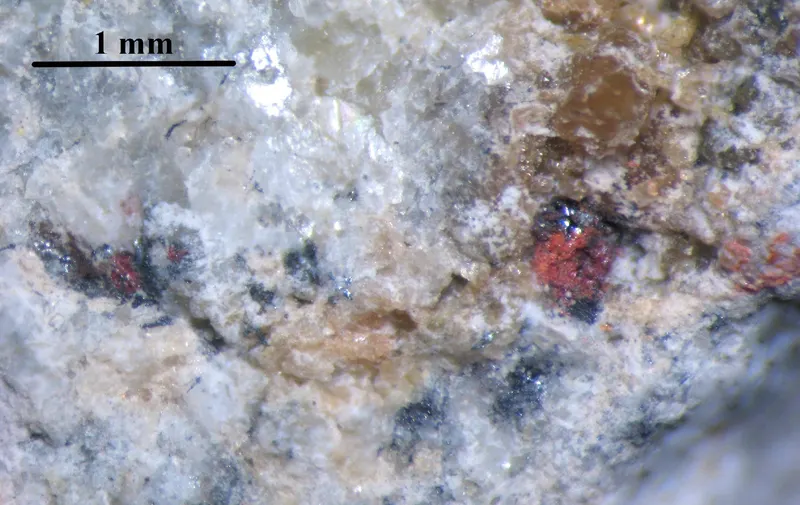

Anhedral grains up to 0.5 mm in domolite-calcite matrix.

Comment

From type description

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
80HgMercuryMercury5200.5921002.960
51.29%
16SSulfurSulfur1232.060384.720
19.68%
33AsArsenicArsenic474.922299.688
15.33%
81TlThalliumThallium1204.380204.380
10.45%
29CuCopperCopper163.54663.546
3.25%
Total1955.294100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2016-076
  • Vorontsoviet

In other languages

German
IMA 2016-076 · Vorontsovit

Classification

Strunz
10th ed.

2.GB.20

  • 2Sulfides and SulfosaltsClass
  • 2.GSulfarsenites, sulfantimonites, sulfbismuthitesDivision
  • 2.GBNeso-sulfarsenites, etc. with additional SGroup
  • 2.GB.20VorontsoviteSpecies

Group, growth & confusion

In the same group
2 members
Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 2016(2016)
  2. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter No 34. Mineralogical Magazine, 80 (7) 1315-1321 doi:10.1180/minmag.2016.080.086DOI: 10.1180/minmag.2016.080.086
  3. 2018Kasatkin, Anatoly, Nestola, Fabrizio, Agakhanov, Atali, Škoda, Radek, Karpenko, Vladimir, Tsyganko, Mikhail, Plášil, Jakub (2018) Vorontsovite, (Hg5Cu)Σ6TlAs4S12, and Ferrovorontsovite, (Fe5Cu)Σ6TlAs4S12: The Tl- and Tl-Fe-Analogues of Galkhaite from the Vorontsovskoe Gold Deposit, Northern Urals, Russia. Minerals, 8 (5) 185 doi:10.3390/min8050185 DOI: 10.3390/min8050185
  4. 2020(2020) Vorontsovite. Handbook of Mineralogy. Mineralogical Society of America
