Vysokýite

U4+[AsO2(OH)2]4 · 4H2O
IMA status
  • Approved
IMA symbol
Vys
IMA approved
2012
Also known as
  • IMA2012-067
  • Vysokýiet

Where it forms, where it's found

Type locality
Geschieber vein
  1. Svornost Mine
  2. Jáchymov
  3. Karlovy Vary District
  4. Karlovy Vary Region
  5. Czech Republic

50.3725°, 12.9117°

1recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789102/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Light-green
Streak
Greenish-gray to grayish
Tenacity
brittle
Cleavage
Perfect

along (100) and (001)

Fracture
Irregular/Uneven
Density
3.393 g/cm³

Optical

Refractive index
1.617 – 1.654
Surface relief
Moderate
Principal indices
nα 1.617 · nγ 1.654
Dispersion
refractive indices measured along and perpendicular to fibres
UV response
non-fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]370 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation370 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 10.749 Å · b = 5.044 Å · c = 19.1778 Å
Cell angles
α = 89.872 ° · β = 121.534 ° · γ = 76.508 °
Ratio a:b:c
1 : 0.469 : 1.784
Unit cell volume
852.1 ų
Z
2
Morphology

Fibrous crystals.

Type-locality form

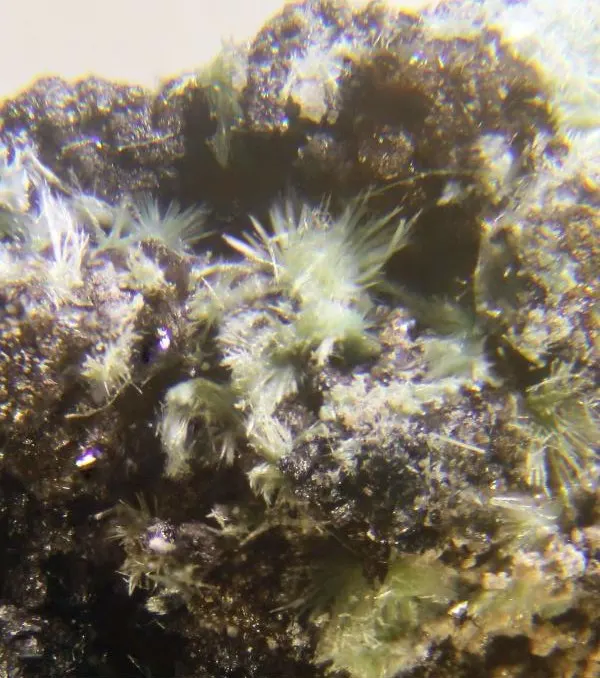

Extremely fibrous light-green crystals up to 8 mm long on altered surface of massive native As.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2015.999319.980
36.62%
33AsArsenicArsenic474.922299.688
34.30%
92UUraniumUranium1238.029238.029
27.24%
1HHydrogenHydrogen161.00816.128
1.84%
Total873.825100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Si

Synonyms

  • IMA2012-067
  • Vysokýiet

In other languages

German
IMA 2012-067 · Vysokýit
Italian
vysokýite

Classification

Strunz
10th ed.

8.CJ.47

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CJWith only large cationsGroup
  • 8.CJ.47VysokýiteSpecies

Literature, links & citation

Citations
  1. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) IMA Commission on New Minerals, Nomenclature and Classification. CNMNC Newsletter No. 15. Mineralogical Magazine, 77 (1) 1-12 doi:10.1180/minmag.2013.077.1.01DOI: 10.1180/minmag.2013.077.1.01
  2. 2013Plášil, J., Fejfarová, K., Hloušek, J., Škoda, R., Novák, M., Sejkora, J., Čejka, J., Dušek, M., Veselovský, F., Ondruš, P., Majzlan, J., Mrázek, Z. (2013) Štěpite, U(AsO3OH)2·4H2O, from Jáchymov, Czech Republic: the first natural arsenate of tetravalent uranium. Mineralogical Magazine, 77 (1) 137-152 doi:10.1180/minmag.2013.077.1.12 DOI: 10.1180/minmag.2013.077.1.12
  3. 2013Plášil, J., Hloušek, J., Škoda, R., Novák, M., Sejkora, J., Čejka, J., Veselovský, F., Majzlan, J. (2013) Vysokýite, U4+[AsO2(OH)2]4·4H2O, a new mineral from Jáchymov, Czech Republic. Mineralogical Magazine, 77 (8) 3055-3066 doi:10.1180/minmag.2013.077.8.01 DOI: 10.1180/minmag.2013.077.8.01
  4. 2023(2023) Vysokýite. Handbook of Mineralogy. Mineralogical Society of America
