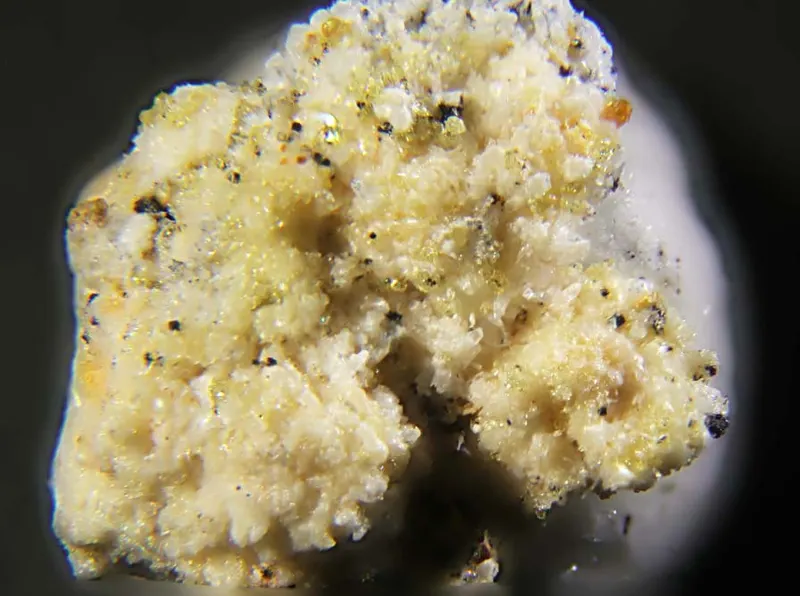

Wadalite

Ca6Al5Si2O16Cl3
IMA status
  • Approved
IMA symbol
Wdl
Discovered
1987
IMA approved
1993
Also known as
  • IMA1987-045
  • Wadaliet

Where it forms, where it's found

Geological setting

Calcsilicate xenolith in two-pyroxene andesite.

Type locality
Koriyama City
  1. Fukushima Prefecture
  2. Japan
12recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Transparent · Translucent
Colour
Lemon-yellow · colourless · grey · black

In thin section, wadalite is transparent and colorless to pale yellowish brown.

Streak
White
Cleavage
None Observed
Density
3.06 g/cm³

Optical

Optical type
Isotropic
Surface relief
High
Principal indices
n 1.700 – 1.712
UV response
Not fluorescent in ultraviolet.
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 1.706

Crystallography

Crystal system
Isometric
Space group
#209
Cell parameters
a = 12.009(2) Å
Z
4
Morphology

Tris-tetrahedral crystals showing dominant (211) and truncated by (211).

Type-locality form

Tris-tetrahedral crystals up to 1 mm in size. Along margins and fractures, it is partially replaced by katoite. There are also pseudomorphs of katoite and other species after wadalite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
32.24%
20CaCalciumCalcium640.078240.468
30.29%
13AlAluminiumAluminium526.982134.910
16.99%
17ClChlorineChlorine335.450106.350
13.40%
14SiSiliconSilicon228.08556.170
7.08%
Total793.882100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg
  • Fe

Synonyms

  • IMA1987-045
  • Wadaliet

In other languages

German
IMA 1987-045 · Wadalit
Italian
wadalite
Portuguese
IMA1987-045 · Wadalita
Japanese
和田石

Classification

Strunz
10th ed.

9.AD.25

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.ADNesosilicates without additional anions; cations in [6] and/or greater coordinationGroup
  • 9.AD.25WadaliteSpecies
Dana
8th ed.

51.04.05.01

  • 51Nesosilicates Insular Sio4 Groups OnlyClass
  • 51.04Insular SiO4 Groups Only with cations in [6] and >[6] coordinationType
  • 51.04.05— unnamed intermediate level —Group
  • 51.04.05.01WadaliteSpecies

Group, growth & confusion

In the same group
2 members

Literature, links & citation

Citations
  1. 1988Feng, Q. L., Glasser, F. P., Howie, R. A., Lachowski, E. E. (1988) Chlorosilicate with the 12CaO.7Al2O3 structure and its relationship to garnet. Acta Crystallographica Section C Crystal Structure Communications, 44 (4) 589-592 doi:10.1107/s0108270187012046DOI: 10.1107/s0108270187012046
  2. 1993Jambor, John L., Vanko, David A. (1993) New Mineral Names. American Mineralogist, 78 (11-12) 1314-1319
  3. 1993Tsukimura, K., Kanazawa, Y., Aoki, M., Bunno, M. (1993) Structure of wadalite Ca6Al5Si2O16Cl3. Acta Crystallographica Section C Crystal Structure Communications, 49 (2) 205-207 doi:10.1107/s0108270192005481DOI: 10.1107/s0108270192005481
  4. 1995Glasser, F. P. (1995) Comments on wadalite, Ca6Al5SiO16Cl3, and the structures of garnet, mayenite and calcium chlorosilicate. Addendum. Acta Crystallographica Section C Crystal Structure Communications, 51 (2) 340 doi:10.1107/s0108270195099781DOI: 10.1107/s0108270195099781
  5. 1996Gottschalk, Matthias (1996) Internally consistent thermodynamic data for rock-forming minerals in the system SiO2-TiO2-Al2O3-Fe2O3-CaO-MgO-FeO-K2O-Na2O-H2O-CO2. European Journal of Mineralogy, 9 (1) 175-223 doi:10.1127/ejm/9/1/0175DOI: 10.1127/ejm/9/1/0175
