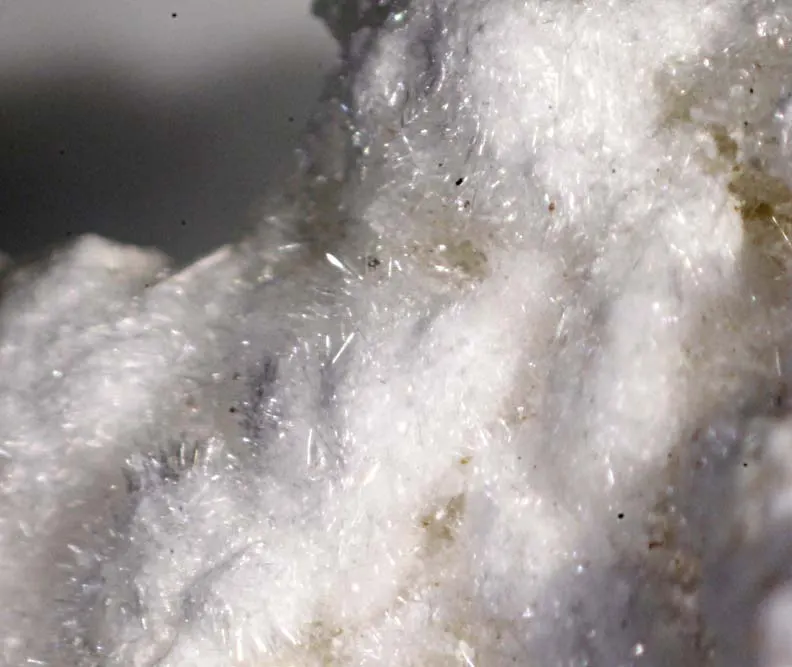

Wardsmithite

Ca5Mg(B4O7)6 · 30H2O
IMA status
  • Approved
IMA symbol
Wsm
Discovered
1967
IMA approved
1967
Also known as
  • IMA1967-030
  • Wardsmithiet

Where it forms, where it's found

Geological setting

weathered veins of colemanite and priceite

Type locality
Hard Scramble claim
  1. Ryan
  2. Furnace Creek Mining District (Furnace Creek Borate Mining District)
  3. Inyo County
  4. California
  5. USA

36.3350°, -116.7028°

5recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless · white
Streak
White
Cleavage
Distinct/Good

(001), good.

Density
1.85 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.476 – 1.49
Surface relief
Low
Principal indices
nω 1.490 · nε 1.476
UV response
none
Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Morphology

anhedral with platy habit

Type-locality form

fine grained nodules

Comment

Point Group: n.d.; Space Group: n.d. Z = n.d.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen7215.9991151.928
67.90%
5BBoronBoron2410.810259.440
15.29%
20CaCalciumCalcium540.078200.390
11.81%
1HHydrogenHydrogen601.00860.480
3.57%
12MgMagnesiumMagnesium124.30524.305
1.43%
Total1696.543100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1967-030
  • Wardsmithiet

In other languages

German
IMA 1967-030 · Wardsmithit
Italian
Wardsmithite
Chinese
瓦钙镁硼石

Classification

Strunz
10th ed.

6.H0.25

  • 6BoratesClass
  • 6.HUnclassified boratesDivision
  • 6.H0— unnamed intermediate level —Group
  • 6.H0.25WardsmithiteSpecies
Dana
8th ed.

26.07.07.01

  • 26Hydrated Borates Containing Hydroxyl or HalogenClass
  • 26.07MiscellaneousType
  • 26.07.07— unnamed intermediate level —Group
  • 26.07.07.01WardsmithiteSpecies
CIM

9.3.24

  • 9BoratesClass
  • 9.3Borates of Ca and SrGroup
  • 9.3.24WardsmithiteSpecies

Literature, links & citation

Citations
  1. 1970Erd, Richard C., McAllister, James F., Vlisidis, and Angelina C. (1970) Wardsmithite, 5CaO·MgO·12B2O3·30H2O, new borate mineral from the Death Valley Region, California. American Mineralogist, 55 (3-4) 349-357
  2. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
  3. 2005(2005) Wardsmithite. Handbook of Mineralogy. Mineralogical Society of America
