Weberite

Na2MgAlF7
IMA status
  • Approved
  • Grandfathered
IMA symbol
Web
Discovered
1938
Also known as
  • Weberiet

Where it forms, where it's found

Geological setting

Cryolite deposit and overlying pegmatite.

Type locality
Ivigtut Mine
  1. Ivigtut stock
  2. Arsuk Fjord
  3. Sermersooq
  4. Greenland

61.2061°, -48.1756°

11recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Grayish white · colourless in transmitted light.
Streak
White
Cleavage
Poor/Indistinct

On (101) poor; on (010) indistinct.

Fracture
Irregular/Uneven
Density
2.96 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 83° · 2V calc = 88°
Refractive index
1.344 – 1.35
Surface relief
Low
Principal indices
nα 1.344 – 1.346 · nβ 1.346 – 1.348 · nγ 1.347 – 1.350
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0035
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]35 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation35 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#58
Cell parameters
a = 7.31 Å · b = 7.06 Å · c = 9.99 Å
Ratio a:b:c
1 : 0.966 : 1.367
Z
4
Morphology

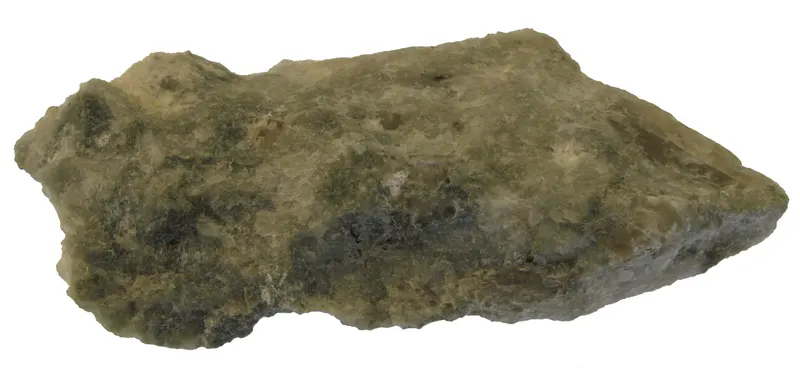

Irregular grains and masses. Inclusions in cryolite.

Twinning

With [_1_11] as twin axis and (011) as composition plane, commonly as contact twins.

Type-locality form

Irregular grains, to 2.5 mm, in fluorite or cryolite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
9FFluorineFluorine718.998132.986
57.76%
11NaSodiumSodium222.99045.980
19.97%
13AlAluminiumAluminium126.98226.982
11.72%
12MgMagnesiumMagnesium124.30524.305
10.55%
Total230.253100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Weberiet

In other languages

German
Weberit
Spanish
Weberita
Italian
Weberite

Classification

Strunz
10th ed.

3.CB.25

  • 3HalidesClass
  • 3.CComplex halidesDivision
  • 3.CBNeso-aluminofluoridesGroup
  • 3.CB.25WeberiteSpecies
Dana
8th ed.

11.06.13.01

  • 11Halide ComplexesClass
  • 11.06Aluminofluorides - Isolated OctahedraType
  • 11.06.13— unnamed intermediate level —Group
  • 11.06.13.01WeberiteSpecies
CIM

8.6.8

  • 8Halides - Fluorides, Chlorides, Bromides and Iodides; also Fluoborates and FluosilicatesClass
  • 8.6Halides of AlGroup
  • 8.6.8WeberiteSpecies

Literature, links & citation

Citations
  1. 1938Bøgvad, R. (1938) Weberite, a new mineral from Ivigtut. Meddelelser om Grønland: 119: 3-11.
  2. 1939Foshag, W.F. (1939) New mineral names. American Mineralogist: 24: 278.
  3. 1943Brosset (1943) American Chemical Society: 37: 13.
  4. 1944Byström, A. (1944) The structure of weberite, Na2MgAlF7. Arkiv för kemi, mineralogi och geologi: 18(1).
  5. 1948Ferguson, R.B. (1948) Observations on weberite and jarlite. American Mineralogist: 33(3-4): 195-195.
