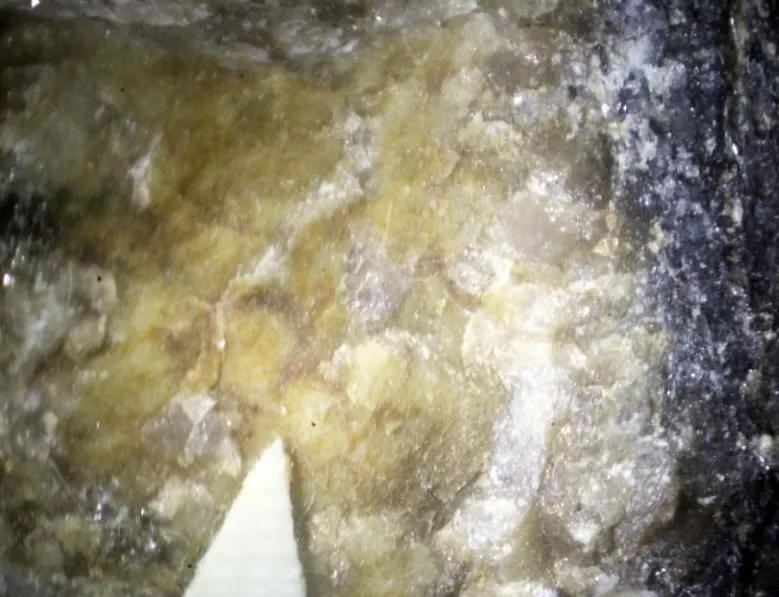

Werdingite

Mg2Al14Si4B4O37
IMA status
  • Approved
IMA symbol
Wrd
Discovered
1988
IMA approved
1988
Also known as
  • IMA1988-023
  • Mg-Werdingit
  • Mg-Werdingite
  • +1 more

Where it forms, where it's found

Geological setting

High-grade metamorphic rocks.

Type locality
Bok se Puts Farm
  1. Kamiesberg Local Municipality
  2. Namakwa District Municipality
  3. Northern Cape
  4. South Africa

-30.1610°, 18.4893°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Brown-yellow · honey-yellow
Streak
Buff-white
Cleavage
Poor/Indistinct

prismatic poor

Fracture
Conchoidal
Density
3.04 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 33° · 2V calc = 42°
Refractive index
1.614 – 1.651
Surface relief
Moderate
Principal indices
nα 1.614 · nβ 1.646 · nγ 1.651
Pleochroism
Weak

X = Z = colorless; Y = yellow.

Dispersion
r > v moderately strong
Extinction
Z = c.
Michel-Lévy diagramhighlighted lineδ = 0.0370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]370 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation370 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 7.995(2) Å · b = 8.152(1) Å · c = 11.406(4) Å
Cell angles
α = 110.45(2) ° · β = 110.85(2) ° · γ = 84.66(2) °
Ratio a:b:c
1 : 1.020 : 1.427
Z
1
Twinning

Composition plane parallel to [001], simple twins, common; also lamellar twins with several individuals.

Type-locality form

Millimeter-sized rounded grains and small clusters of grains in kornerupine.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen3715.999591.963
50.43%
13AlAluminiumAluminium1426.982377.748
32.18%
14SiSiliconSilicon428.085112.340
9.57%
12MgMagnesiumMagnesium224.30548.610
4.14%
5BBoronBoron410.81043.240
3.68%
Total1173.901100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti

Synonyms

  • IMA1988-023
  • Mg-Werdingit
  • Mg-Werdingite
  • Werdingiet

In other languages

German
IMA 1988-023 · Werdingit
Italian
Werdingite
Chinese
沃丁石

Classification

Strunz
10th ed.

9.BD.35

  • 9SilicatesClass
  • 9.BSorosilicatesDivision
  • 9.BDSi2O7 groups, with additional anions; cations in tetrahedral [4] and greater coordinationGroup
  • 9.BD.35WerdingiteSpecies
Dana
8th ed.

56.03.02.01

  • 56Sorosilicates Si2o7 Groups, with Additional O, Oh, F and H2oClass
  • 56.03Si2O7 Groups and O, OH, F, and H2O with[Si2O7] with borate groupsType
  • 56.03.02— unnamed intermediate level —Group
  • 56.03.02.01WerdingiteSpecies
CIM

17.5.39

  • 17Silicates Containing other AnionsClass
  • 17.5BorosilicatesGroup
  • 17.5.39WerdingiteSpecies

Literature, links & citation

Citations
  1. 1922Lacroix, Alfred (1922) Minéralogie de Madagascar, Tome I. Géologie-Minéralogie descriptive. Augustin Challamel. 624 pp.
  2. 1981Huijsmans, J.P.P. (1981) A grandidierite bearing pegmatite from the Almgjotheii, Rogaland, SW Norway. M.Sc. thesis (Petrology), Inst. of Earth Sciences, State University of Utrecht, The Netherlands (in Dutch).
  3. 1982Huijsmans, J.P.P.; Barton, M.; van Bergen, M.J. (1982) A pegmatite containing Fe-rich grandidierite, Ti-richdumortierite and tourmaline from the Precambrian, high-grade metamorphic complex of Rogaland, S-W.Norway. Neues Jahrbuch für Mineralogie - Abhandlungen, 143 (3). 249-261
  4. 1990Moore, John M., Waters, David J., Niven, Margaret L. (1990) Werdingite, a new borosilicate mineral from the granulite facies of the western Namaqualand metamorphic complex, South Africa. American Mineralogist, 75 (3-4) 415-420
  5. 1991Niven, Margaret L., Waters, David J., Moore, John M. (1991) The crystal structure of werdingite, (Mg,Fe)2Al12(Al,Fe)2Si4(B,Al)4O37 and its relationship to sillimanite, mullite, and grandidierite. American Mineralogist, 76 (1-2) 246-256
