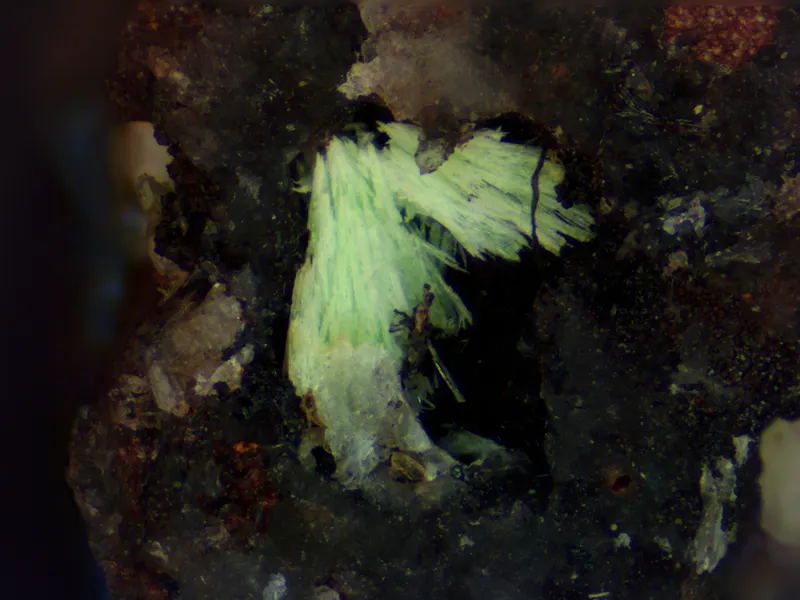

Wherryite

Pb7Cu2(SO4)4(SiO4)2(OH)2
IMA status
  • Approved
  • Grandfathered
IMA symbol
Whr
Discovered
1950
Also known as
  • Wherryiet

Where it forms, where it's found

Type locality
Mammoth-Saint Anthony Mine
  1. St. Anthony deposit
  2. Tiger
  3. Mammoth Mining District
  4. Pinal County
  5. Arizona
  6. USA

32.7064°, -110.6831°

9recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Lustre
Vitreous
Colour
Light green · yellow or bright yellowish-green.
Density
6.45 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50° · 2V calc = 46°
Refractive index
1.942 – 2.024
Surface relief
Very high
Principal indices
nα 1.942 · nβ 2.01 · nγ 2.024
Dispersion
relatively weak
Michel-Lévy diagramhighlighted lineδ = 0.0820
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]820 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation820 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 20.789(4) Å · b = 5.787(1) Å · c = 9.142(3) Å
Cell angles
β = 91.24(2) °
Ratio a:b:c
1 : 0.278 : 0.440
Unit cell volume
1099.5 ų
Z
2
Morphology

Massive; fine-granular.

Type-locality form

Light-green fine granular

Comment

From Cooper and Hawthorne (1994)

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead7207.2001450.400
66.54%
8OOxygenOxygen2615.999415.974
19.08%
16SSulfurSulfur432.060128.240
5.88%
29CuCopperCopper263.546127.092
5.83%
14SiSiliconSilicon228.08556.170
2.58%
1HHydrogenHydrogen21.0082.016
0.09%
Total2179.892100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Wherryiet

In other languages

German
Wherryit
Italian
Wherryite
Chinese
氯碳铜铅矾

Classification

Strunz
10th ed.

7.BC.55

  • 7SulfatesClass
  • 7.BSulfates (selenates, etc.) with additional anions, without H2ODivision
  • 7.BCWith medium-sized and large cationsGroup
  • 7.BC.55WherryiteSpecies
Dana
8th ed.

32.03.03.01

  • 32Compound SulfatesClass
  • 32.03Anhydrous Compound Sulfates containing Hydroxyl or HalogenType
  • 32.03.03— unnamed intermediate level —Group
  • 32.03.03.01WherryiteSpecies
CIM

12.2.14

  • 12Carbonates with other anionsClass
  • 12.2Carbonates with sulphateGroup
  • 12.2.14WherryiteSpecies

Literature, links & citation

Citations
  1. 1950Fahey, Joseph J., Daggett, E. B., Gordon, Samuel G. (1950) Wherryite, a new mineral from Mammoth Mine, Arizona. American Mineralogist, 35 (1-2) 93-98
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1970McLean, W. John (1970) Confirmation of the mineral species wherryite. American Mineralogist, 55 (3-4) 505-507
  4. 1994Cooper, M. A., Hawthorne, F. C. (1994) The crystal structure of wherryite, Pb7Cu2(SO4)4(SiO4)2(OH)2, a mixed sulfate-silicate with [[6]M(TO4)2φ] chains. The Canadian Mineralogist, 32 (2) 373-380
