Whiterockite

CaMgMn3+3O2(PO4)2(CO3)F · 5H2O
IMA status
  • Approved
IMA symbol
Wrc
IMA approved
2020
Also known as
  • IMA2020-044
  • Whiterockiet

Where it forms, where it's found

Geological setting

formed from hydrothermal alteration and weathering in an oxidising, low-temperature and low-pH environment from a rare-element pegmatite enriched in lithophile elements and characterised by abundant beryl and apatite

Type locality
White Rock No. 2 pegmatite
  1. White Rock Feldspar Mine
  2. Old Boolcoomata Station
  3. Bimbowrie Conservation Park
  4. Pastoral Unincorporated Area
  5. South Australia
  6. Australia

-32.0811°, 140.3292°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
dark red
Streak
pink
Tenacity
brittle
Cleavage
Perfect

(001)

Fracture
Irregular/Uneven
Density
2.76 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 30° · 2V calc = 33.5°
Refractive index
1.66 – 1.77
Surface relief
High
Principal indices
nα 1.660 · nβ 1.760 · nγ 1.770
Pleochroism
Visible

in shades of red-brown X < Y < Z.

Michel-Lévy diagramhighlighted lineδ = 0.1100
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1100 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1100 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/m
Cell parameters
a = 11.112 Å · b = 6.455 Å · c = 10.667 Å
Cell angles
β = 102.61 °
Ratio a:b:c
1 : 0.581 : 0.960
Z
2
Type-locality form

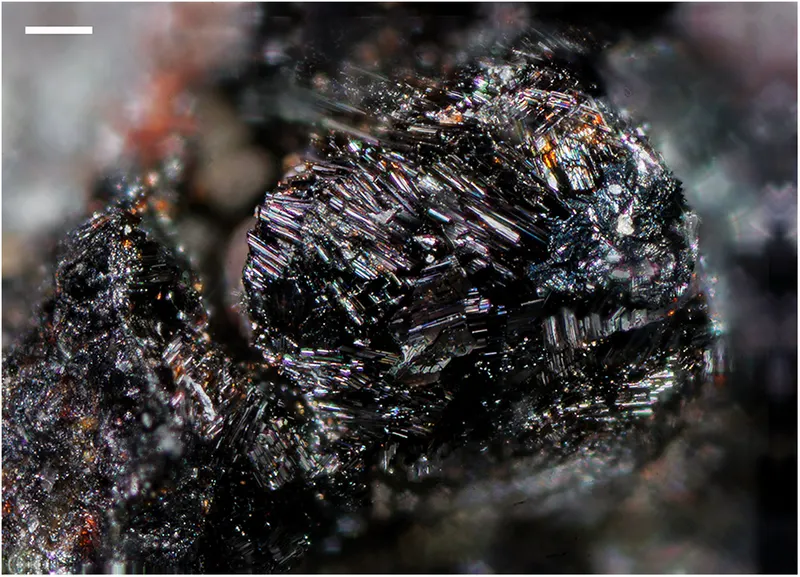

aggregates of thin platy dark-red crystals to 0.7 mm across with individual crystals up to 0.2 mm in across. Whiterockite occurs as aggregates of crystals to 0.7 mm across. Individual crystals are thin six-sided plates up to 0.2 mm in width with a thickness of about 1–2 μm

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
46.43%
25MnManganeseManganese354.938164.814
26.57%
15PPhosphorusPhosphorus230.97461.948
9.99%
20CaCalciumCalcium140.07840.078
6.46%
12MgMagnesiumMagnesium124.30524.305
3.92%
9FFluorineFluorine118.99818.998
3.06%
6CCarbonCarbon112.01112.011
1.94%
1HHydrogenHydrogen101.00810.080
1.63%
Total620.216100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2020-044
  • Whiterockiet

In other languages

German
IMA 2020-044 · Whiterockit

Classification

Strunz
10th ed.

8.DO

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DOWith CO3, SO4, SiO4Group
  • 8.DOWhiterockiteSpecies

Literature, links & citation

Citations
  1. 2020Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2020) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 58. European Journal of Mineralogy, 32 (6) 645-651 doi:10.5194/ejm-32-645-2020 DOI: 10.5194/ejm-32-645-2020
  2. 2022(2022) Whiterockite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2025Elliott, Peter; Kampf, Anthony R. (2025) Whiterockite, CaMgMn3+3O2(PO4)2CO3F⋅5H2O, a new phosphate-carbonate mineral from the White Rock No.2 quarry, South Australia, Australia. Mineralogical Magazine, 89 (1). 127-132 doi:10.1180/mgm.2024.66DOI: 10.1180/mgm.2024.66
