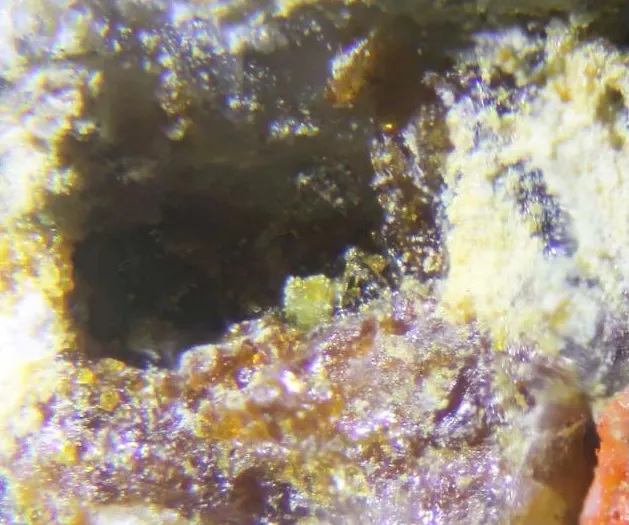

Winstanleyite

TiTe4+3O8
IMA status
  • Approved
IMA symbol
Wsn
Discovered
1979
IMA approved
1979
Also known as
  • IMA1979-001
  • Winstanleyiet

Where it forms, where it's found

Geological setting

Altered dump material.

Type locality
Grand Central Mine
  1. Contention-Grand Central Mine group
  2. Tombstone Mining District
  3. Cochise County
  4. Arizona
  5. USA

31.7025°, -110.0619°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Yellow · tan · cream-colored.
Streak
Light yellow
Tenacity
brittle
Cleavage

Brittle, but tough.

Density
5.57 g/cm³

Optical

Optical type
Isotropic
Surface relief
Very high
Principal indices
n 2.34
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 2.340

Crystallography

Crystal system
Isometric
Space group
Ia3
Cell parameters
a = 10.963 Å
Z
8
Morphology

Cubes, modified by octahedrons.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium3127.600382.800
68.52%
8OOxygenOxygen815.999127.992
22.91%
22TiTitaniumTitanium147.86747.867
8.57%
Total558.659100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • IMA1979-001
  • Winstanleyiet

In other languages

German
IMA 1979-001 · Winstanleyit
Italian
Winstanleyite
Chinese
钛碲矿

Classification

Strunz
10th ed.

4.JK.05

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JKTellurites without additional anions, without H2OGroup
  • 4.JK.05WinstanleyiteSpecies
Dana
8th ed.

34.05.02.01

  • 34Selenites, Tellurites and SulfitesClass
  • 34.05A(X3O8)Type
  • 34.05.02— unnamed intermediate level —Group
  • 34.05.02.01WinstanleyiteSpecies
CIM

28.3.12

  • 28Selenites, Selenates, Tellurites, and TelluratesClass
  • 28.3TelluritesGroup
  • 28.3.12WinstanleyiteSpecies

Literature, links & citation

Citations
  1. 1971Meunier, G.; Galy, J. (1971) Sur une déformation inédite du reseau de type fluorine. Structure cristalline des phases MTe3O8 (M = Ti, Sn, Hf, Zr). Acta Crystallographica Section B Structural Crystallography and Crystal Chemistry, 27 (3). 602-608 doi:10.1107/s0567740871002620DOI: 10.1107/s0567740871002620
  2. 1979Williams, S. A. (1979) Girdite, oboyerite, fairbankite, and winstanleyite, four new tellurium minerals from Tombstone, Arizona. Mineralogical Magazine, 43 (328) 453-457 doi:10.1180/minmag.1979.043.328.01 DOI: 10.1180/minmag.1979.043.328.01
  3. 1980Fleischer, Michael, Cabri, Louis J., Chao, G. Y., Pabst, Adolf (1980) New Mineral Names. American Mineralogist, 65 (7-8) 808-814
  4. 2003Bindi, L., Cipriani, C. (2003) The crystal structure of winstanleyite, TiTe3O8, from the Grand Central mine, Tombstone, Arizona. The Canadian Mineralogist, 41 (6) 1469-1473 doi:10.2113/gscanmin.41.6.1469 DOI: 10.2113/gscanmin.41.6.1469
  5. 2005(2005) Winstanleyite. Handbook of Mineralogy. Mineralogical Society of America
