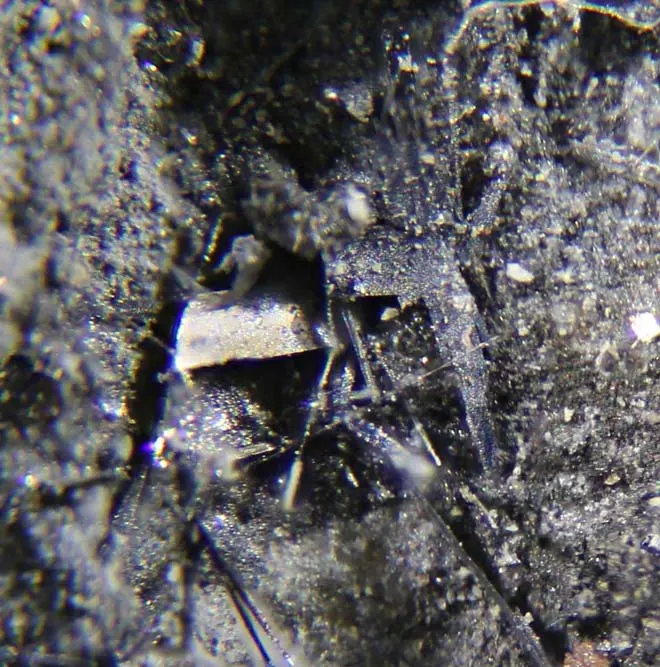

Wittite

Pb9Bi12(S,Se)27
IMA status
  • Approved
  • Grandfathered
  • Questionable
IMA symbol
Wit
Discovered
1924
Also known as
  • Wittiet

Where it forms, where it's found

Type locality
Falun mine
  1. Falun
  2. Dalarna County
  3. Sweden

60.5981°, 15.6131°

17recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Light lead-gray
Streak
Black
Cleavage
Distinct/Good

One good cleavage. Cleabage surfaces show striations at 57° to 57.5°.

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 29.15 Å · b = 4.07 Å · c = 15.83 Å
Cell angles
β = 98.5 °
Ratio a:b:c
1 : 0.140 : 0.543

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth12208.9802507.760
34.03%
34SeSeleniumSelenium2778.9712132.217
28.93%
82PbLeadLead9207.2001864.800
25.30%
16SSulfurSulfur2732.060865.620
11.74%
Total7370.397100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From Mindat formula

Synonyms

  • Wittiet

In other languages

German
Wittit
Italian
wittite
Chinese
威硒硫铋铅矿

Classification

Strunz
10th ed.

2.JB.20

  • 2Sulfides and SulfosaltsClass
  • 2.JSulfosalts of PbS archetypeDivision
  • 2.JBGalena derivatives, with PbGroup
  • 2.JB.20WittiteSpecies
Dana
8th ed.

03.06.05.02

  • 03SulfosaltsClass
  • 03.062 < ø < 2.49Type
  • 03.06.05— unnamed intermediate level —Group
  • 03.06.05.02WittiteSpecies
CIM

5.6.31

  • 5Sulphosalts - Sulpharsenites and Sulphobismuthites (those containing Sn, Ge,or V are in Section 6)Class
  • 5.6Sulpharsenites etc. of Pb aloneGroup
  • 5.6.31WittiteSpecies

Literature, links & citation

Citations
  1. 1924Johansson (1924), Arkiv för Kemi, Mineralogi och Geologi: 9: 2.
  2. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  3. 1977American Mineralogist (1977): 62: 397.
  4. 1980Mumme, William G. (1980) Seleniferous lead-bismuth sulphosalts from Falun, Sweden: weibullite, wittite, and nordströmite. American Mineralogist, 65 (7-8) 789-796
  5. 1992Mozgova, N. N.; Nenasheva, S. N.; Efimov, A. V.; Borodaev, Yu. S.; Moëlo, Y. (1992) Wittite with Se-rich Cosalite and Bismuthinite from Nevskoe Tin Deposit (Magadan District, Russia). Mineralogy and Petrology, 46 (2). 137-153 doi:10.1007/bf01160183DOI: 10.1007/bf01160183
