Wortupaite

MgNi2+2(Te4+O3)3 · 3H2O
IMA status
  • Approved
  • Pending publication
IMA symbol
Wor
Also known as
  • Wortupaiet

Where it forms, where it's found

Geological setting

oxidation zone of nickel telluride

Type locality
Worturpa Mine
  1. Vulkathunha-Gammon Ranges National Park
  2. Gammon Ranges
  3. Pastoral Unincorporated Area
  4. South Australia
  5. Australia

-30.4350°, 139.2414°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
pale yellowish green
Streak
pale-green
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
4.42 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.882 – 1.957
Surface relief
Very high
Principal indices
nω 1.882 · nε 1.957
Pleochroism
Weak

O = green-blue, E = yellow with green tinge

Notes

RI calc

Michel-Lévy diagramhighlighted lineδ = 0.0750
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]750 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation750 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
#108
Cell parameters
a = 9.221(1) Å · c = 7.515(1) Å
Z
2
Twinning

none

Parting
none

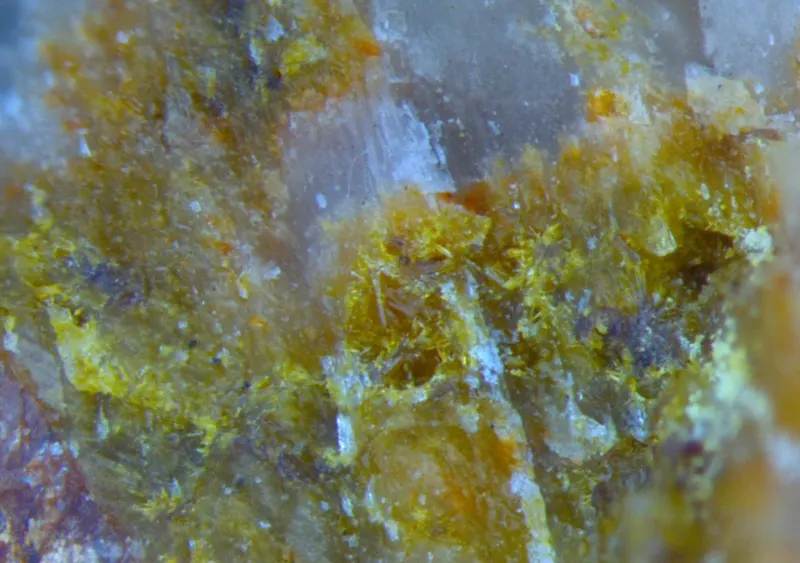

Type-locality form

needles up to 25 μm in length, generally clustered and sometimes in blocky masses of shorter (10‒15 μm) crystals.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
52TeTelluriumTellurium3127.600382.800
52.98%
8OOxygenOxygen1215.999191.988
26.57%
28NiNickelNickel258.693117.386
16.25%
12MgMagnesiumMagnesium124.30524.305
3.36%
1HHydrogenHydrogen61.0086.048
0.84%
Total722.527100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Wortupaiet

In other languages

German
Wortupait

Classification

Strunz
10th ed.

4.JM

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JMTellurites without additional anions, with H2OGroup
  • 4.JMWortupaiteSpecies

Literature, links & citation

Citations
  1. 2023Missen, Owen P., Mills, Stuart J., Brugger, Joël, Birch, William D., Elliott, Peter (2023) Crystal chemistry of zemannite-type structures: IV. Wortupaite, the first new tellurium oxysalt mineral described from an Australian locality. Mineralogical Magazine, 1-22 doi:10.1180/mgm.2023.64DOI: 10.1180/mgm.2023.64
  2. 2023Bosi, Ferdinando; Miyawaki, Ritsuro; Hatert, Frédéric; Pasero, Marco; Mills, Stuart J. (2023) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 71. European Journal of Mineralogy, 35 (1). 75-79 doi:10.5194/ejm-35-75-2023 DOI: 10.5194/ejm-35-75-2023
