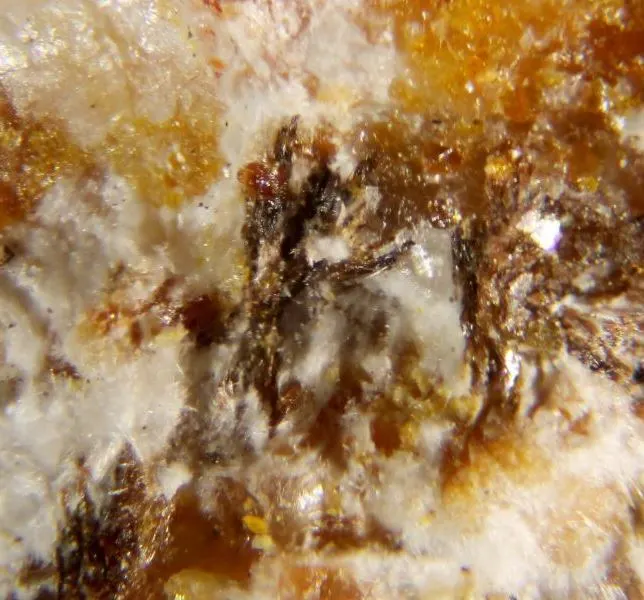

Yeatmanite

Zn6Mn2+9Sb5+2O12(SiO4)4
IMA status
  • Approved
  • Grandfathered
IMA symbol
Ytm
Discovered
1938
Also known as
  • Yeatmaniet

Where it forms, where it's found

Type locality
Buckwheat pit
  1. Franklin Mine
  2. Franklin
  3. Sussex County
  4. New Jersey
  5. USA

41.1147°, -74.5872°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Clove-brown · rose-pink
Streak
Light brown
Tenacity
brittle
Cleavage
Perfect

(100)

Density
5.02 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 52° · 2V calc = 59°
Refractive index
1.864 – 1.905
Surface relief
Very high
Principal indices
nα 1.864 · nβ 1.895 · nγ 1.905
Birefringence
0.041
Dispersion
r > v
UV response
Does not fluoresce in UV
Michel-Lévy diagramhighlighted lineδ = 0.0410
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]410 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation410 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.604(2) Å · b = 11.602(7) Å · c = 9.058(4) Å
Cell angles
α = 92.17(5) ° · β = 100.90(3) ° · γ = 77.30(7) °
Ratio a:b:c
1 : 2.070 : 1.616
Z
1
Twinning

Lamellar multiple twinning multiple on b(010) and macroscopic twinning on (023).

Type-locality form

Clove brown plates, irregular in outline or lath-shaped. The crystals can have a pseudohexagonal form.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese954.938494.442
29.25%
8OOxygenOxygen2815.999447.972
26.50%
30ZnZincZinc665.380392.280
23.20%
51SbAntimonyAntimony2121.760243.520
14.40%
14SiSiliconSilicon428.085112.340
6.65%
Total1690.554100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe

Synonyms

  • Yeatmaniet

In other languages

German
Yeatmanit
Spanish
Yeatmanita
Italian
Yeatmanite
Chinese
硅锑锌锰矿

Classification

Strunz
10th ed.

9.AE.45

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AENesosilicates with additional anions (O,OH,F,H2O); cations in tetrahedral [4] coordinationGroup
  • 9.AE.45YeatmaniteSpecies
Dana
8th ed.

44.03.06.01

  • 44AntimonatesClass
  • 44.03MiscellaneousType
  • 44.03.06— unnamed intermediate level —Group
  • 44.03.06.01YeatmaniteSpecies
CIM

17.7.15

  • 17Silicates Containing other AnionsClass
  • 17.7Silicates with vanadate, arsenate or antimonateGroup
  • 17.7.15YeatmaniteSpecies

Literature, links & citation

Citations
  1. 1938Palache, Charles, Bauer, L. H., Berman, Harry (1938) Yeatmanite, a new mineral, and sarkinite from Franklin, New Jersey. American Mineralogist, 23 (8) 527-530
  2. 1966Moore, Paul B. (1966) Catoptrite and yeatmanite - stuffed pyrochroite structures? American Mineralogist, 51 (9-10). 1494-1500
  3. 1977Fleischer, Michael, Jambor, John (1977) New mineral names. American Mineralogist, 62 (3-4).
  4. 1980Dunn, Pete J., Leavens, Peter B. (1980) Yeatmanite: new data. American Mineralogist, 65 (1-2) 196-199
  5. 1986Kato, Toshio (1986) The crystal structure of yeatmanite. Mineralogical Journal, 13 (2) 53-64 doi:10.2465/minerj.13.53 DOI: 10.2465/minerj.13.53
