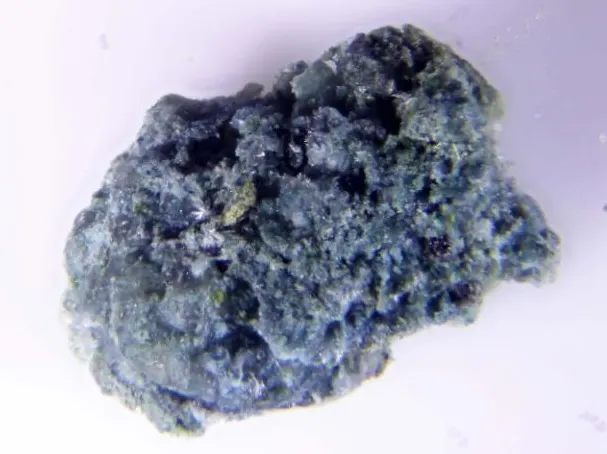

Zhenruite

(MoO3)2 · H2O
IMA status
  • Approved
IMA symbol
Zhr
IMA approved
2022
Also known as
  • IMA2022-050
  • Zhenruiet

Where it forms, where it's found

Geological setting

The Marysvale U-Mo deposit was formed in an epithermal vein system hosted in a volcanic/hypabyssal complex composed of porphyritic quartz monzonite, fine-grained granite, and glassy alkali rhyolite dated between 23 and 18 Ma (Brophy and Kerr, 1953; Cunningham et al., 1998). The samples containing zhenruite are the weathered product of the primary molybdenum ores exposed on the surface of the mine.

Type locality
Freedom No. 2 Mine
  1. Marysvale Mining District
  2. Piute County
  3. Utah
  4. USA

38.4984°, -112.2143°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101.5 – 2/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
colorless
Streak
white
Tenacity
brittle
Cleavage
Perfect

perfect on (001)

Density
4.081 g/cm³

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 9.6790(6) Å · b = 3.7065(2) Å · c = 7.1029(4) Å
Cell angles
β = 102.391(5) °
Ratio a:b:c
1 : 0.383 : 0.734
Z
2
Twinning

none

Type-locality form

acicular or prismatic crystals (up to 0.06 x 0.01 x 0.01  mm).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
42MoMolybdenumMolybdenum295.950191.900
62.73%
8OOxygenOxygen715.999111.993
36.61%
1HHydrogenHydrogen21.0082.016
0.66%
Total305.909100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2022-050
  • Zhenruiet

In other languages

German
Zhenruit

Classification

Strunz
10th ed.

4.CB

  • 4OxidesClass
  • 4.CMetal: Oxygen = 2: 3,3: 5, and similarDivision
  • 4.CBWith medium-sized cationsGroup
  • 4.CBZhenruiteSpecies

Literature, links & citation

Citations
  1. 1994Bénard, P., Seguin, L., Louër, D., Figlarz, M. (1994) Structure of MoO3 · 1/2H2O by Conventional X-Ray Powder Diffraction. Journal of Solid State Chemistry, 108. 170-176 doi:10.1006/jssc.1994.1026DOI: 10.1006/jssc.1994.1026
  2. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 69. European Journal of Mineralogy, 34 (5) 463-468 doi:10.5194/ejm-34-463-2022 DOI: 10.5194/ejm-34-463-2022
  3. 2026Gu, Xiangping; Yang, Hexiong; Gibbs, Ronald B.; Liu, Guanghua (2026) Zhenruite, (MoO 3 ) 2  ⋅ H 2 O, and tianhuixinite, (MoO 3 ) 3  ⋅ H 2 O, two new minerals in the MoO 3 –MoO 3  ⋅ 2H 2 O system. European Journal of Mineralogy, 38 (1). 39-52 doi:10.5194/ejm-38-39-2026DOI: 10.5194/ejm-38-39-2026
