Ziesite

Cu2V5+2O7
IMA status
  • Approved
IMA symbol
Zie
Discovered
1979
IMA approved
1979
Also known as
  • IMA1979-055
  • Ziesiet

Where it forms, where it's found

Type locality
Izalco Volcano
  1. Sonsonate Department
  2. El Salvador

13.8137°, -89.6326°

3recorded occurrences
Source · OpenStreetMap

Physical

Lustre
Metallic
Transparency
Opaque
Colour
Black
Streak
Red-brown
Density
3.86 g/cm³

Optical

Optical type
Biaxial
Optical colour
white
Anisotropism
moderate to strong
Tropism
Anisotropic

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 7.6890(8) Å · b = 8.0289(9) Å · c = 10.1065(8) Å
Cell angles
β = 110.252(7) °
Ratio a:b:c
1 : 1.044 : 1.314
Z
2
Type-locality form

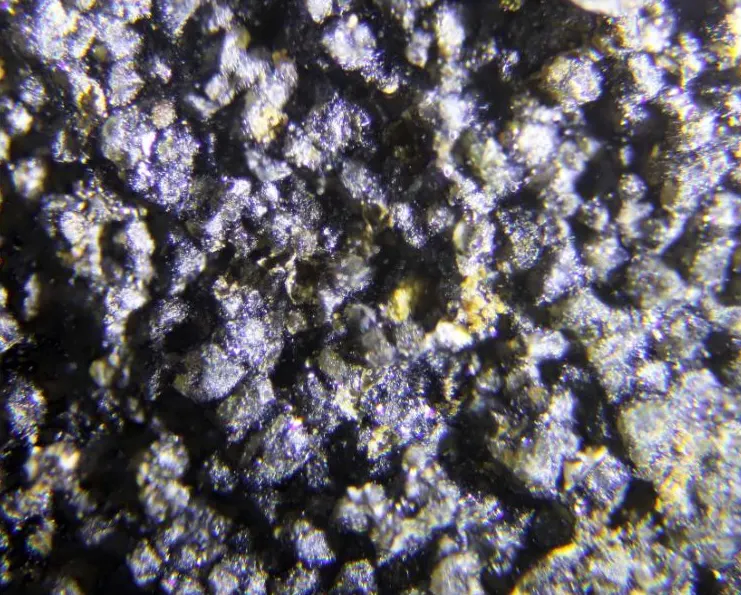

Anhedral crystals, to 200 µm, incrusting basalt

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
29CuCopperCopper263.546127.092
37.27%
8OOxygenOxygen715.999111.993
32.85%
23VVanadiumVanadium250.942101.884
29.88%
Total340.969100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA1979-055
  • Ziesiet

In other languages

German
IMA 1979-055 · Ziesit
Italian
Ziesite
Chinese
氧钒铜矿

Classification

Strunz
10th ed.

8.FA.10

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.FPolyphosphates, Polyarsenates, [4]-PolyvanadatesDivision
  • 8.FAPolyphosphates, etc., without OH and H2O; dimers of corner-sharing RO4 tetrahedra.Group
  • 8.FA.10ZiesiteSpecies
Dana
8th ed.

38.05.05.02

  • 38Anhydrous Normal Phosphates, Arsenates, and VanadatesClass
  • 38.05MiscellaneousType
  • 38.05.05— unnamed intermediate level —Group
  • 38.05.05.02ZiesiteSpecies
CIM

21.1.8

  • 21Vanadates (and vanadates with arsenate or phosphate)Class
  • 21.1Vanadates of the alkalis and CuGroup
  • 21.1.8ZiesiteSpecies

Literature, links & citation

Citations
  1. Crystallography Reports: 277C: 1101-1104.
  2. 1980Hughes, John M., Birnie, Richard W. (1980) Ziesite, β-Cu2V2O7, a new copper vanadate and fumarole temperature indicator. American Mineralogist, 65 (11-12) 1146-1149
  3. 1989Hughes, J.M., Brown, M.A. (1989) The crystal structure of ziesite, β-Cu2V2O7, a thortveitite-type structure with a non-linear X-O-X inter-tetrahedral bond. Neues Jahrbuch für Mineralogie, Monatshefte: 1989: 41-47.
  4. 2005Krivovichev, S.V., Filatov, S.K., Cherepansky, P.N., Armbuster, T., Pankratova, O.Y. (2005) Crystal structure of γ-Cu2V2O7 and its comparison to blossite (α-Cu2V2O7) and ziesite (β-Cu2V2O7). The Canadian Mineralogist: 43: 671-677.
  5. 2005(2005) Ziesite. Handbook of Mineralogy. Mineralogical Society of America
