Zinclipscombite

ZnFe3+2(PO4)2(OH)2
IMA status
  • Approved
IMA symbol
Zlcb
IMA approved
2006
Also known as
  • IMA2006-008
  • Zinclipscombiet
  • Zinclipscombit

Where it forms, where it's found

Geological setting

Secondary mineral in the oxidation zone of a hydrothermal vein-type silver and base metal sulfide deposit.

Type locality
Silver Coin Mine
  1. Valmy
  2. Iron Point Mining District
  3. Humboldt County
  4. Nevada
  5. USA

40.9289°, -117.3239°

2recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Dark green to brown
Streak
Light green to beige
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.65 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.755 – 1.795
Surface relief
High
Principal indices
nω 1.755 · nε 1.795
Pleochroism
Visible

Х = bright-green to blue-green, Z = light greenish brown.

Notes

Absorption: X > Z.

Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#173
Cell parameters
a = 7.242 Å · c = 13.125 Å
Unit cell volume
688.4 ų
Z
4
Morphology

fibrous spheres

Type-locality form

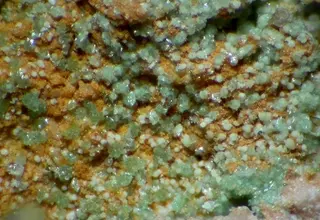

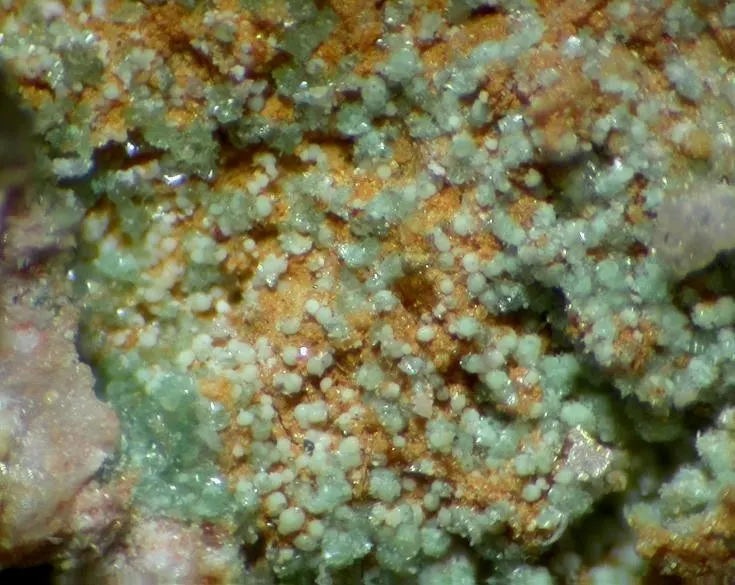

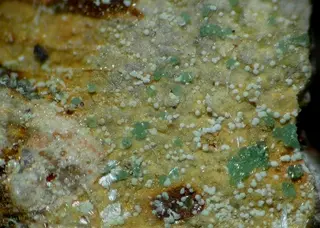

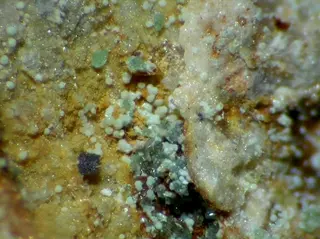

Spheroidal, fibrous aggregates up to 2.5 mm. The fibers have a thickness of about 20 µm.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
39.90%
26FeIronIron255.845111.690
27.85%
30ZnZincZinc165.38065.380
16.30%
15PPhosphorusPhosphorus230.97461.948
15.45%
1HHydrogenHydrogen21.0082.016
0.50%
Total401.024100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • IMA2006-008
  • Zinclipscombiet
  • Zinclipscombit

In other languages

German
IMA 2006-008 · Zinklipscombit
Italian
zinclipscombite

Classification

Strunz
10th ed.

8.BB.90

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.BPhosphates, etc., with additional anions, without H2ODivision
  • 8.BBWith only medium-sized cations, (OH, etc.):RO4 about 1:1Group
  • 8.BB.90ZinclipscombiteSpecies
Dana
8th ed.

41.10.02.02

  • 41Anhydrous Phosphates, Etc.containing Hydroxyl or HalogenClass
  • 41.10(AB)3(XO4)2ZqType
  • 41.10.02Lipscombite GroupGroup
  • 41.10.02.02ZinclipscombiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2006Chukanov, N.V., Pekov, I.V., Möckel, S., Zadov, A.E., Dubinchuk, V.T. (2006) Zinclipscombite ZnFe3+2(PO4)2(OH)2 – a new mineral, Proceedings of the Russian Mineralogical Society, 135(6), 13–18.
  2. 2022(2022) Zinclipscombite. Handbook of Mineralogy. Mineralogical Society of America
