Zircosulfate

Zr(SO4)2 · 4H2O
IMA status
  • Approved
IMA symbol
Zrs
Also known as
  • Zircosulfaat
  • Zircosulphate

Where it forms, where it's found

Geological setting

Alkaline pegmatite

Type locality
Korgeredaba alkaline massif
  1. Sangilen Upland
  2. Tuva
  3. Russia

50.0481°, 97.2081°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789102.5 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colourless · white
Density
2.85 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 75° · 2V calc = 75°
Refractive index
1.62 – 1.674
Surface relief
Moderate
Principal indices
nα 1.620 · nβ 1.644 · nγ 1.674
Dispersion
r < v strong
Michel-Lévy diagramhighlighted lineδ = 0.0540
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]540 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation540 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
Fddd
Cell parameters
a = 25.92 Å · b = 11.62 Å · c = 5.532 Å
Ratio a:b:c
1 : 0.448 : 0.213
Z
8
Type-locality form

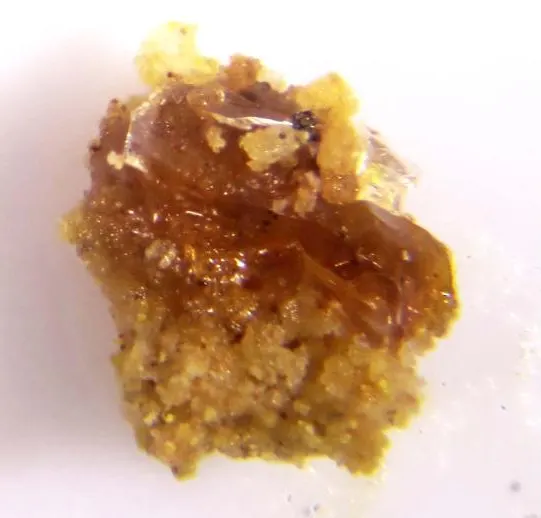

white crust in a 2cm in diameter large cavity in a weathered sulphide-bearing pegmatite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1215.999191.988
54.02%
40ZrZirconiumZirconium191.22491.224
25.67%
16SSulfurSulfur232.06064.120
18.04%
1HHydrogenHydrogen81.0088.064
2.27%
Total355.396100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Zircosulfaat
  • Zircosulphate

In other languages

German
Zirkosulfat
Italian
Zircosolfato · Zircosulfate

Classification

Strunz
10th ed.

7.CD.50

  • 7SulfatesClass
  • 7.CSulfates (selenates, etc.) without additional anions, with H2ODivision
  • 7.CDWith only large cationsGroup
  • 7.CD.50ZircosulfateSpecies
Dana
8th ed.

29.09.02.01

  • 29Hydrated Acid and Normal SulfatesClass
  • 29.09MiscellaneousType
  • 29.09.02— unnamed intermediate level —Group
  • 29.09.02.01ZircosulfateSpecies
CIM

25.7.2

  • 25SulphatesClass
  • 25.7Sulphates of PbGroup
  • 25.7.2ZircosulfateSpecies

Literature, links & citation

Citations
  1. 1965Kapustin, Y. L. (1965) Zircosulfate, a new mineral. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva 94: 530-533 (in russian)
  2. 1965Kapustin, Y. L. (1965) Zircosulfate, a new mineral. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva 94: 530-533
  3. 1966Fleischer, Michael (1966) New Mineral Names. American Mineralogist, 51 (3-4) 529-534
  4. 1998Pekov, Igor V. (1998) Minerals first discovered on the territory of the former Soviet Union. Ocean Pictures, Moscow. 369pp.
  5. 2005(2005) Zircosulfate. Handbook of Mineralogy. Mineralogical Society of America
