Zirkelite

(Ti,Ca,Zr)O2-x
IMA status
  • Approved
  • Grandfathered
IMA symbol
Zke
Discovered
1895
IMA approved
1960
Also known as
  • Zirkeliet

Where it forms, where it's found

Type locality
Jacupiranga mine
  1. Cajati
  2. São Paulo
  3. Brazil

-24.6983°, -48.1259°

26recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Resinous
Transparency
Opaque
Colour
Black

May be brown when altered

Streak
Brownish black
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven · Sub-Conchoidal
Density
4.741 g/cm³

Optical

Optical type
Isotropic
Refractive index
2.5
Surface relief
Very high
Principal indices
nα 2.5
Birefringence
0.0
Pleochroism
Non-pleochroic
Internal reflections
Reddish brown
UV response
Nonfluorescent
Notes

Reddish brown in thin section

Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation

Crystallography

Crystal system
Isometric
Cell parameters
a = 5.02 Å
Morphology

Crystals as flattened octahedra.

Twinning

On (111) very common, both polysynthetic and as complicated fourlings.

Type-locality form

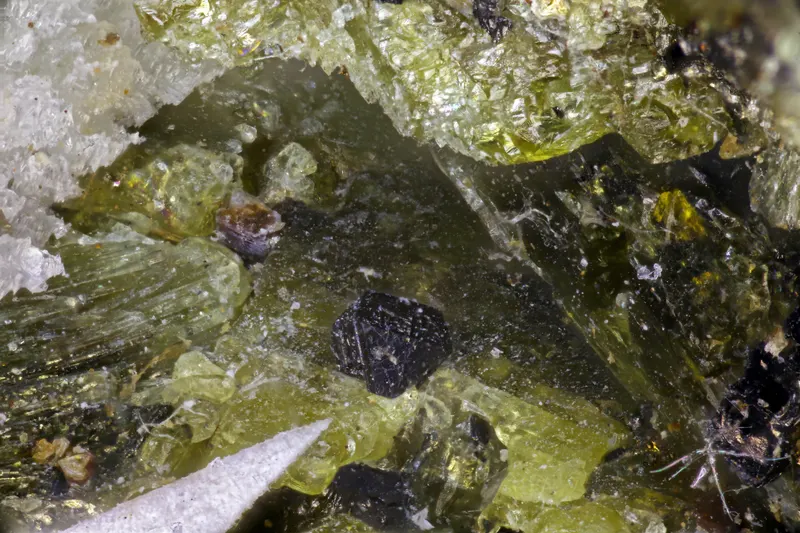

Black submetallic to vitreous grains and crystals.

Comment

Redefined in 1989 as the isometric structure of a set of related chemically minerals. Earlier definitions gave monoclinic symmetry but that material is now called zirconolite.

Crystal structure

Synonyms

  • Zirkeliet

In other languages

French
zirkélite
German
Zirkelit
Spanish
Zirkelita
Italian
Zirkelite
Japanese
ジルケル鉱
Chinese
钛锆钍矿
Russian
Циркелит

Classification

Strunz
10th ed.

4.DL.05

  • 4OxidesClass
  • 4.DMetal: Oxygen = 1:2 and similarDivision
  • 4.DLWith large (+- medium-sized) cations; fluorite-type structuresGroup
  • 4.DL.05ZirkeliteSpecies
Dana
8th ed.

08.02.05.01

  • 08Multiple Oxides Containing Niobium, Tantalum or TitaniumClass
  • 08.02A2B2O6(O,OH,F)Type
  • 08.02.05Zirconolite GroupGroup
  • 08.02.05.01ZirkeliteSpecies
CIM

7.10.8

  • 7Oxides and HydroxidesClass
  • 7.10Oxides of Zr and ThGroup
  • 7.10.8ZirkeliteSpecies

Literature, links & citation

Citations
  1. 1894Hussak (1894) Min. Mitt.: 14: 408.
  2. 1895Hussak, E., Prior, G. T. (1895) Lewisite and Zirkelite, Two New Brazilian Minerals. Mineralogical Magazine and Journal of the Mineralogical Society, 11 (50) 80-88 doi:10.1180/minmag.1895.011.50.05 DOI: 10.1180/minmag.1895.011.50.05
  3. 1913Blake, G. S. (1913) On varieties of Zirkelite from Ceylon. Mineralogical Magazine and Journal of the Mineralogical Society, 16 (77) 309-316 doi:10.1180/minmag.1913.016.77.02 DOI: 10.1180/minmag.1913.016.77.02
  4. 1944Palache, Charles, Berman, Harry, Frondel, Clifford (1944) The System of Mineralogy (7th ed.) Vol. 1 - Elements, Sulfides, Sulfosalts, Oxides. John Wiley and Sons, New York.
  5. 1974Pudovkina, Z.V., Dubakina, L.S., Levedeva, S.I., Pyatenko, Yu.A. (1974) Study of Brazilian zirkelite. Zapiski Vsesoyuznogo Mineralogicheskogo Obshchestva: 103: 368-372. (in Russian)
