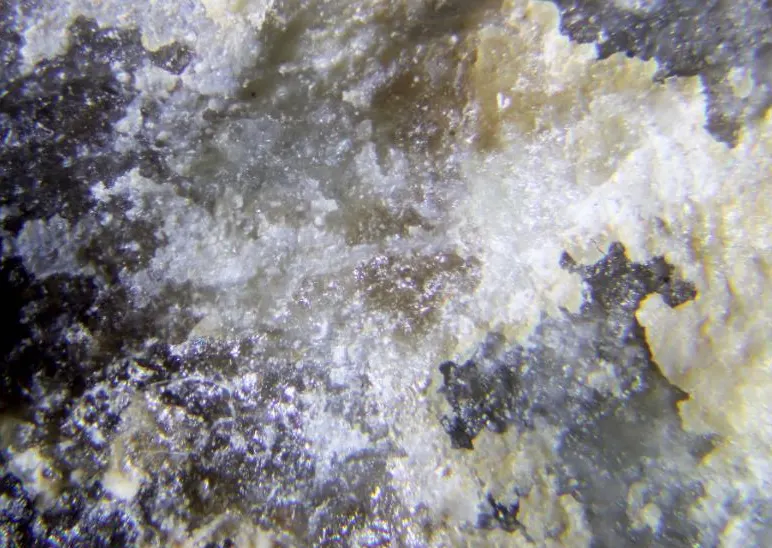

Akdalaite

Al10O14(OH)2
IMA status
  • Approved
IMA symbol
Akd
IMA approved
1969
Also known as
  • Akdalaiet
  • Akdalaitt
  • IMA1969-002
  • +2 more

Where it forms, where it's found

Geological setting

veinlets cutting amesite-fluorite-muscovite rock and fluorite-magnetite-diopside-vesuvianite skarn

Type locality
Solnechnoye Mine
  1. Kara-Oba W deposit
  2. Karazhal
  3. Ulytau Region
  4. Kazakhstan

47.2575°, 71.2422°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107 – 7.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · porcelanous
Transparency
Translucent
Colour
White · pale greenish yellow in thin section
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Irregular/Uneven
Density
3.68 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.741 – 1.747
Surface relief
High
Principal indices
nω 1.747 · nε 1.741
Michel-Lévy diagramhighlighted lineδ = 0.0060
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]60 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation60 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 12.87 Å · c = 14.97 Å
Z
18
Morphology

As hexagonal crystals, to 0.8 mm, tabular to equant; in lenslike aggregates.

Type-locality form

lenslike aggregates and tabular to equant hexagonal crystals to 0.1 mm

Comment

Possible space groups: P6122, P61

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
13AlAluminiumAluminium1026.982269.820
51.12%
8OOxygenOxygen1615.999255.984
48.50%
1HHydrogenHydrogen21.0082.016
0.38%
Total527.820100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Akdalaiet
  • Akdalaitt
  • IMA1969-002
  • IMA2004-051
  • Tohdite

In other languages

French
Akdalaïte
German
Akdalait · IMA 1969-002
Italian
akdalaite

Classification

Strunz
10th ed.

4.FL.70

  • 4OxidesClass
  • 4.FHydroxides (without V or U)Division
  • 4.FLHydroxides with H2O +- (OH); sheets of edge-sharing octahedraGroup
  • 4.FL.70AkdalaiteSpecies
Dana
8th ed.

04.03.02.01

  • 04Simple OxidesClass
  • 04.03A2X3Type
  • 04.03.02— unnamed intermediate level —Group
  • 04.03.02.01AkdalaiteSpecies
CIM

7.6.8

  • 7Oxides and HydroxidesClass
  • 7.6Oxides of AlGroup
  • 7.6.8AkdalaiteSpecies

Group, growth & confusion

In the same group
2 members
Often grow together
1 mineral
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1964Yamaguchi, G., Yanagida, H., Shuitiro, O. (1964) New alumina hydrate, "tohdite" (5Al2O3·H2O). Bulletin of the Chemical Society of Japan: 37: 752-754.
  2. 1970Shpanov, E.P., Sidorenko, G.A., Stolyarova, T.I. (1970) Akdalaite, a new hydrous modification of alumina. Zapiski Vserossiyskogo Mineralogicheskogo Obshchestva: 99: 333-339. [in Russian]
  3. 1971Fleischer, M. (1971) American Mineralogist: 56: 635. [abstract]
  4. 1997Anthony, John Williams, Bideaux, Richard A., Bladh, Kenneth W., Nichols, Monte C. - Ed. (1997) Handbook of Mineralogy Vol. 3 - Halides, Hydroxides, Oxides. Mineral Data Publishing, Tucson, Arizona. p.1-682.
  5. 2005(2005) Akdalaite. Handbook of Mineralogy. Mineralogical Society of America
