Alarsite

Al(AsO4)
IMA status
  • Approved
IMA symbol
Ars
IMA approved
1993
Also known as
  • Alarsiet
  • Alarsitt
  • IMA1993-003

Where it forms, where it's found

Geological setting

Fumarolic exhalations

Type locality
Great Fissure eruption (Main Fracture)
  1. Tolbachik Volcanic field
  2. Milkovsky District
  3. Kamchatka Krai
  4. Russia

55.8333°, 160.3333°

2recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789105 – 5.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Colorless · with pale tints of yellow · green · blue due to inclusions

colorless in transmitted light

Streak
White
Tenacity
brittle
Cleavage
None Observed
Density
3.32 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.596 – 1.608
Surface relief
Moderate
Principal indices
nω 1.596 · nε 1.608
Birefringence
0.012
Pleochroism
Non-pleochroic
Extinction
Parallel.
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0120
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]120 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation120 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#89
Cell parameters
a = 5.031(1) Å · c = 11.226(6) Å
Z
3
Morphology

Subhedral grains, to 0.3 mm, in aggregates.

Comment

Possibly P3221

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic174.92274.922
45.16%
8OOxygenOxygen415.99963.996
38.58%
13AlAluminiumAluminium126.98226.982
16.26%
Total165.900100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Alarsiet
  • Alarsitt
  • IMA1993-003

In other languages

French
alarsite
German
Alarsit · IMA 1993-003
Italian
alarsite
Arabic
ألارسيت

Classification

Strunz
10th ed.

8.AA.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.APhosphates, etc. without additional anions, without H2ODivision
  • 8.AAWith small cations (some also with larger ones)Group
  • 8.AA.05AlarsiteSpecies

Group, growth & confusion

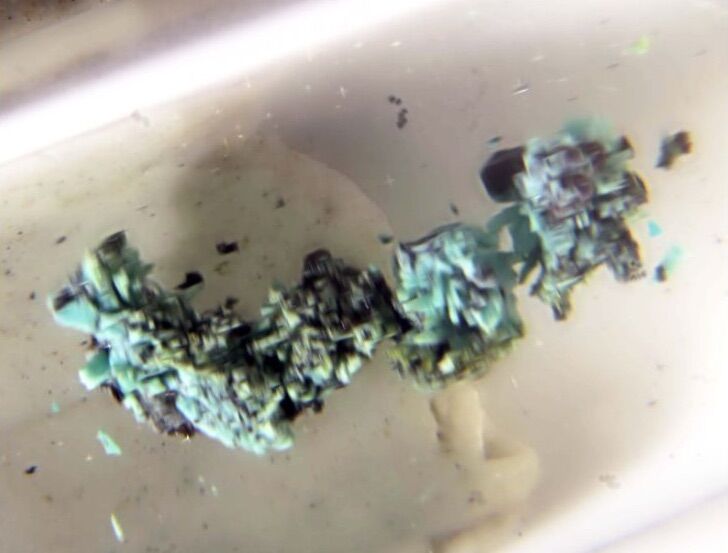

Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1935Machatschki, F. (1935) Die Kristallstruktur des Aluminiumarsenates AlAsO4. Ein weiterer Beitrag zur Frage der Isomorphie von Kristallarten des Siliciums und fünfwertigen Arsens. Zeitschrift für Kristallographie, 90 (1). 314-321 doi:10.1524/zkri.1935.90.1.314DOI: 10.1524/zkri.1935.90.1.314
  2. 1936Machatschki, F. (1936) Die Kristallstruktur von Tiefquarz SiΟ2 und Aluminiumorthoarsenat AlAsΟ4. Zeitschrift für Kristallographie, 94 (1-6). 222-230 doi:10.1524/zkri.1936.94.1.222 DOI: 10.1524/zkri.1936.94.1.222
  3. 1983Goiffon, A., Bayle, G., Astier, R., Jumas, J.C., Maurin, M., and Phillippot, E. (1983) Cristallochimie des phases GaPO4, AlAsO4 et GaAsO4. Étude comprée des structures de type quartz α. Revue de Chimie Minérale: 20: 338-350.
  4. 1994Semenova, T.F., Vergasova, L.P., Filatov, S.K., Ananev, V.V. (1994) Alarsite AlAsO4: a New Mineral from Volcanic Exhalations. Doklady Akademii Nauk, 338 (4) 501-505
  5. 2005(2005) Alarsite. Handbook of Mineralogy. Mineralogical Society of America
