Andyrobertsite

KCdCu5(AsO4)4[As(OH)2O2] · 2H2O
IMA status
  • Approved
IMA symbol
Arb
IMA approved
1997
Also known as
  • Andyrobertsiet
  • Andyrobertsitt
  • IMA1997-022

Where it forms, where it's found

Type locality
Tsumeb Mine (Ongopolo Mine)
  1. Tsumeb
  2. Oshikoto Region
  3. Namibia

-19.2270°, 17.7276°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent
Colour
Electric blue · greenish blue in transmitted light.
Streak
pale blue
Tenacity
brittle
Cleavage
Distinct/Good

Good on (100)

Fracture
Conchoidal
Density
4.011 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 50° · 2V calc = 55°
Refractive index
1.72 – 1.757
Surface relief
High
Principal indices
nα 1.720 · nβ 1.749 · nγ 1.757
Pleochroism
Non-pleochroic
Dispersion
relatively strong
Extinction
X ∧ a = 12° (in β obtuse); Y = b; Z = c.
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0370
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]370 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation370 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/m
Cell parameters
a = 9.8102(9) Å · b = 10.0424(6) Å · c = 9.9788(6) Å
Cell angles
β = 101.686(7) °
Ratio a:b:c
1 : 1.024 : 1.017
Z
2
Morphology

Platy habit with forms (100) (dominant), (210), (001), (102) and (011).

Twinning

No twinning observed.

Type-locality form

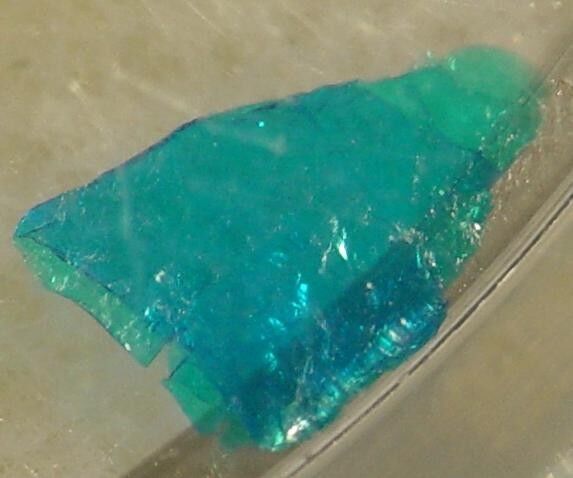

Lamellar intergrowth with calcioandyrobertsite as plates, to 10 mm, that radiate from the center of an aggregate 1.4 cm long and 1 cm at the base.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
33AsArsenicArsenic574.922374.610
31.17%
8OOxygenOxygen2215.999351.978
29.29%
29CuCopperCopper563.546317.730
26.44%
48CdCadmiumCadmium1112.414112.414
9.35%
19KPotassiumPotassium139.09839.098
3.25%
1HHydrogenHydrogen61.0086.048
0.50%
Total1201.878100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Andyrobertsiet
  • Andyrobertsitt
  • IMA1997-022

In other languages

German
Andyrobertsit · IMA 1997-022
Spanish
Andyrobertsita
Italian
andyrobertsite
Chinese
水砷鉀鎘銅石 · 水砷钾镉铜石

Classification

Strunz
10th ed.

8.DH.50

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.DPhosphates, etc. with additional anions, with H2ODivision
  • 8.DHWith large and medium-sized cations, (OH, etc.):RO4 < 1:1Group
  • 8.DH.50AndyrobertsiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1999Cooper, Mark A., Hawthorne, Frank C., Pinch, William W., Grice, Joel D. (1999) Andyrobertsite and Calcioandyrobertsite: Two New Minerals from the Tsumeb Mine, Tsumeb, Namibia. The Mineralogical Record, 30 (3) 181-186
  2. 2000Cooper, M. A., Hawthorne, F. C. (2000) Highly undersaturated anions in the crystal structure of andyrobertsite - calcio-andyrobertsite, a doubly acid arsenate of the form K(Cd,Ca)[Cu2+5(AsO4)4](H2O)2. The Canadian Mineralogist, 38 (4) 817-830 doi:10.2113/gscanmin.38.4.817 DOI: 10.2113/gscanmin.38.4.817
  3. 2021(2021) Andyrobertsite. Handbook of Mineralogy. Mineralogical Society of America
