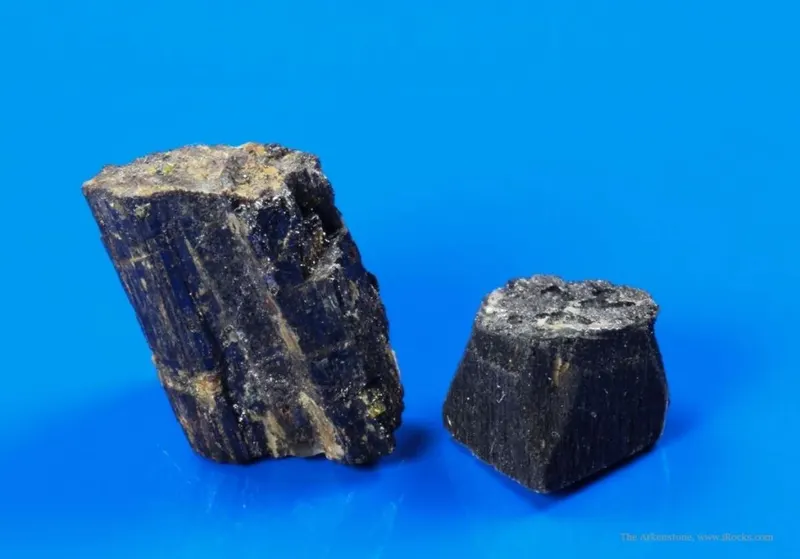

Baotite

Ba4(Ti,Nb,W)8O16(SiO3)4Cl
IMA status
  • Approved
IMA symbol
Bao
Discovered
1959
Also known as
  • Baotiet

Where it forms, where it's found

Geological setting

Quartz vein, related to Hercynian alkali granite and syenite.

Type locality
Bayan Obo deposit
  1. Bayan Obo mining district
  2. Baotou City
  3. Inner Mongolia
  4. China

41.7958°, 109.9694°

29recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Transparent · Translucent
Colour
Light Brown · black
Tenacity
brittle
Cleavage
Imperfect/Fair

On (110)

Fracture
Hackly
Density
4.42 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.94 – 2.16
Surface relief
Very high
Principal indices
nω 1.94 · nε 2.16
Pleochroism
Strong

O = colorless; E = dark brownish to light greenish yellow.

Notes

Absorption: E > O.

Michel-Lévy diagramhighlighted lineδ = 0.2200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]2200 nm4th order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation2200 nm
Order4th order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#136
Cell parameters
a = 20.02 Å · c = 6.00 Å
Z
16
Type-locality form

Crystals to 8-10 cm in size.

Comment

Range: a = 19.2-20.022 c = 5.908-6.006 A.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
74WTungstenTungsten8183.8401470.720
39.30%
41NbNiobiumNiobium892.906743.248
19.86%
56BaBariumBarium4137.327549.308
14.68%
8OOxygenOxygen2815.999447.972
11.97%
22TiTitaniumTitanium847.867382.936
10.24%
14SiSiliconSilicon428.085112.340
3.00%
17ClChlorineChlorine135.45035.450
0.95%
Total3741.974100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Cr
  • Mg
  • Ca
  • Na
  • K

Synonyms

  • Baotiet

In other languages

German
Baotit
Spanish
Baotita
Italian
Baotite
Chinese
包头矿

Classification

Strunz
10th ed.

9.CE.15

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CE[Si4O12]8- 4-membered single rings (vierer-Einfachringe), without insular complex anionsGroup
  • 9.CE.15BaotiteSpecies
Dana
8th ed.

60.01.02.01

  • 60Cyclosilicates Four-membered RingsClass
  • 60.01Four-Membered Rings, as TitanosilicatesType
  • 60.01.02— unnamed intermediate level —Group
  • 60.01.02.01BaotiteSpecies
CIM

17.8.12

  • 17Silicates Containing other AnionsClass
  • 17.8Silicates with niobate or tantalateGroup
  • 17.8.12BaotiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1959Peng Ch'i-jui (1959) The discovery of several new minerals of rare elements. Ti-chih K'o-hsueh, 10, 289. (in Chinese)
  2. 1960Fleischer, M.; Chao, E.C.T. (1960) New mineral names. American Mineralogist, 45 (5-6). 753-756
  3. 1960Kristallografiya (1960), 5, 544-546.
  4. 1960Simonov, V.I. (1960) Baotite - a mineral with [Si4O12] metasilicate rings. Soviet Physics - Crystallography, 5, 523-525.
  5. 1961Fleischer, Michael (1961) New mineral names. American Mineralogist, 46 (3-4). 464-468
