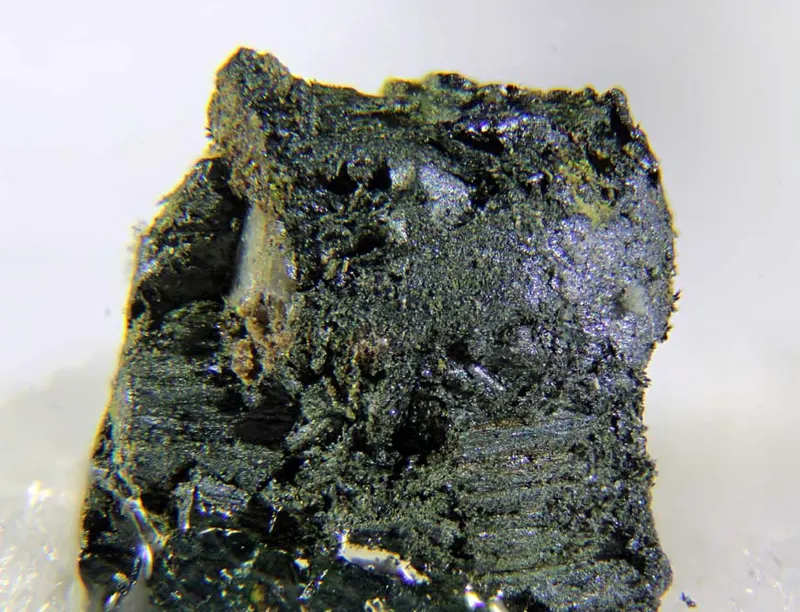

Bariandite

Al0.6(V5+,V4+)8O20 · 9H2O
IMA status
  • Approved
IMA symbol
Brd
IMA approved
1970
Also known as
  • Bariandiet
  • IMA1970-043

Where it forms, where it's found

Geological setting

Oxidation zone of a uranium deposit

Oxidation zones of uranium or vanadium deposits

Type locality
Mounana Mine
  1. Mounana
  2. Léboumbi-Leyou Department
  3. Haut-Ogooué Province
  4. Gabon

-1.4333°, 13.1500°

7recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Opaque
Colour
Black to dark green
Cleavage
Perfect

on (001)

Density
2.7 g/cm³

Optical

Optical type
Biaxial
Surface relief
Very high
Principal indices
n 1.85
Pleochroism
Weak

In transmitted light: greenish brown parallel to [010], bottle-green perpendicular to [010]

Optical colour
Brownish grey
Internal reflections
Green
Notes

n = > 1.85

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 11.70(3) Å · b = 3.63(1) Å · c = 20.06(5) Å
Cell angles
β = 101.5 °
Ratio a:b:c
1 : 0.310 : 1.715
Z
2
Morphology

Crystals platy on (001) and elongated parallel to [010], forming fibers, to 3 mm; sheeted aggregates of parallel fibers, sometimes stacked.

Comment

Point Group: m or 2/m. Space Group: Cc or C2/c.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
23VVanadiumVanadium1650.942815.072
62.06%
8OOxygenOxygen2915.999463.971
35.33%
1HHydrogenHydrogen181.00818.144
1.38%
13AlAluminiumAluminium0.626.98216.189
1.23%
Total1313.376100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bariandiet
  • IMA1970-043

In other languages

German
Bariandit · IMA 1970-043
Italian
Bariandite
Chinese
巴水钒矿

Classification

Strunz
10th ed.

4.HE.20

  • 4OxidesClass
  • 4.HV[5,6] VanadatesDivision
  • 4.HEPhyllovanadatesGroup
  • 4.HE.20BarianditeSpecies
Dana
8th ed.

47.03.02.04

  • 47Vanadium OxysaltsClass
  • 47.03Hydrated Normal Vanadium OxysaltsType
  • 47.03.02Straczekite GroupGroup
  • 47.03.02.04BarianditeSpecies
CIM

7.12.10

  • 7Oxides and HydroxidesClass
  • 7.12Oxides of V, Nb and TaGroup
  • 7.12.10BarianditeSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 1971Cesbron, Fabien, Vachey, Hélène (1971) La bariandite, nouvel oxyde hydraté de vanadium (IV) et (V) Bulletin de Minéralogie, 94 (1) 49-54 doi:10.3406/bulmi.1971.6550DOI: 10.3406/bulmi.1971.6550
  2. 1990Evans, Howard T., Jr.,, Hughes, John M. (1990) Crystal chemistry of the natural vanadium bronzes. American Mineralogist, 75 (5-6) 508-521
  3. 1997Anthony, J. W. et al. (1997): Handbook of Mineralogy, Vol. 3, 40.
  4. 2005(2005) Bariandite. Handbook of Mineralogy. Mineralogical Society of America
