Batiferrite

BaTi2Fe3+8Fe2+2O19
IMA status
  • Approved
IMA symbol
Bfe
Also known as
  • Batiferriet
  • IMA1997-038

Where it forms, where it's found

Geological setting

In cavities within melilite- and leucite-nephelinite basalts.

Type locality
Graulay quarry
  1. Hillesheim
  2. Gerolstein
  3. Vulkaneifel
  4. Rhineland-Palatinate
  5. Germany

50.2764°, 6.6731°

9recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105.5 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Sub-metallic
Transparency
Opaque
Colour
Black
Streak
Dark brown
Tenacity
brittle
Cleavage
Distinct/Good

Good on (00*1).

Fracture: Not distinctive.

Density
5.016 g/cm³

Optical

Optical colour
pale gray
Anisotropism
Moderate
Bireflectance
Distinct in air, weak in oil.
Tropism
Anisotropic
Reflectance R%
(22.1, 20.1, 8.4, 7.1) 470, (21.0, 19.4, 7.8, 6.6) 546, (20.2, 18.8, 7.4, 6.3) 589, (19.3, 18.3, 6.8, 5.9) 650

Crystallography

Crystal system
Hexagonal
Space group
P63/mmc
Cell parameters
a = 5.908(2) Å · c = 23.39(1) Å
Z
2
Type-locality form

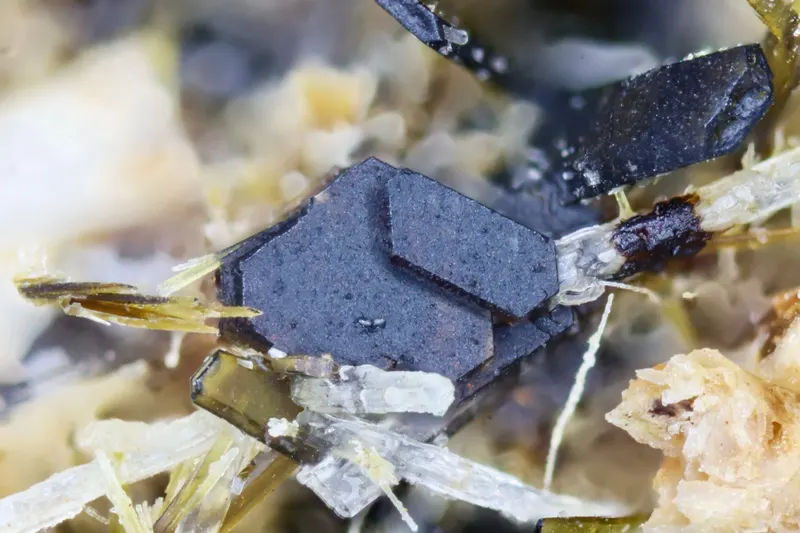

As hexagonal plates to 1 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron1055.845558.450
50.98%
8OOxygenOxygen1915.999303.981
27.75%
56BaBariumBarium1137.327137.327
12.53%
22TiTitaniumTitanium247.86795.734
8.74%
Total1095.492100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Batiferriet
  • IMA1997-038

In other languages

German
Batiferrit · IMA 1997-038
Italian
Batiferrite
Russian
батиферрит

Classification

Strunz
10th ed.

4.CC.45

  • 4OxidesClass
  • 4.CMetal: Oxygen = 2: 3,3: 5, and similarDivision
  • 4.CCWith large and medium-sized cationsGroup
  • 4.CC.45BatiferriteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 2001Lengauer, C. L., Tillmanns, E., Hentschel, G. (2001) Batiferrite, Ba[Ti2Fe10]O19, a new ferrimagnetic magnetoplumbite-type mineral from the Quaternary volcanic rocks of the western Eifel area, Germany. Mineralogy and Petrology, 71 (1) 1-19 doi:10.1007/s007100170042DOI: 10.1007/s007100170042
  2. 2001Jambor, John L., Roberts, Andrew C. (2001) New mineral names. American Mineralogist, 86 (9) 1112-1115
  3. 2001Mandarino, Joseph A. (2001) New minerals. The Canadian Mineralogist, 39 (5) 1473-1502 doi:10.2113/gscanmin.39.5.1473 DOI: 10.2113/gscanmin.39.5.1473
  4. 2021(2021) Batiferrite. Handbook of Mineralogy. Mineralogical Society of America
