Bernardevansite

Al2(Se4+O3)3·6H2O
IMA status
  • Approved
IMA symbol
Bev
IMA approved
2022
Also known as
  • Bernardevansiet
  • IMA2022-057

Where it forms, where it's found

Geological setting

Weathered Se ore.

Type locality
El Dragón mine
  1. Porco Municipality
  2. Antonio Quijarro Province
  3. Potosí
  4. Bolivia

-19.8208°, -65.9167°

1recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless
Streak
White
Tenacity
brittle
Cleavage
None Observed
Density
2.93 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 84° · 2V calc = 87°
Refractive index
1.642 – 1.74
Surface relief
High
Principal indices
nα 1.642 · nβ 1.686 · nγ 1.74
Pleochroism
Weak

Very weak, from pale grey to grey.

Dispersion
None observed.
Michel-Lévy diagramhighlighted lineδ = 0.0980
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]980 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation980 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/c
Cell parameters
a = 16.5016(5) Å · b = 7.7703(2) Å · c = 9.8524(3) Å
Cell angles
β = 98.258(3) °
Ratio a:b:c
1 : 0.471 : 0.597
Morphology

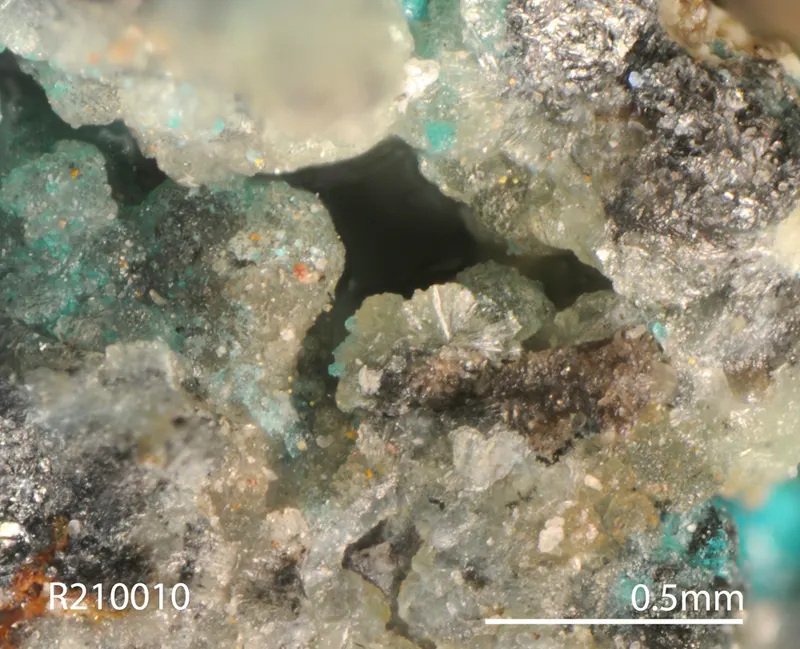

Aggregates or spheres of radiating bladed crystals. Individual crystals are elongated on [001] and forms include (100), (110), (110) and (001).

Type-locality form

Aggregates or spheres comprising radiating, bladed crystals, on a matrix of Co-bearing krut’aite–penroseite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
44.20%
34SeSeleniumSelenium378.971236.913
43.63%
13AlAluminiumAluminium226.98253.964
9.94%
1HHydrogenHydrogen121.00812.096
2.23%
Total542.958100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Bernardevansiet
  • IMA2022-057

In other languages

German
Bernardevansit

Classification

Strunz
10th ed.

4.JH

  • 4OxidesClass
  • 4.JArsenites, antimonites, bismuthites, sulfites, selenites, tellurites; iodatesDivision
  • 4.JHSelenites without additional anions, with H2OGroup
  • 4.JHBernardevansiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2022Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2022) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 70. European Journal of Mineralogy, 34 (6) 591-601 doi:10.5194/ejm-34-591-2022 DOI: 10.5194/ejm-34-591-2022
  2. 2023Yang, Hexiong, Gu, Xiangping, Jenkins, Robert A., Gibbs, Ronald B., Downs, Robert T. (2023) Bernardevansite, Al2(Se4+O3)3⋅6H2O, dimorphous with alfredopetrovite and the Al-analogue of mandarinoite, from the El Dragón mine, Potosí, Bolivia. Mineralogical Magazine, 87 (3) 407-414 doi:10.1180/mgm.2023.7 DOI: 10.1180/mgm.2023.7
