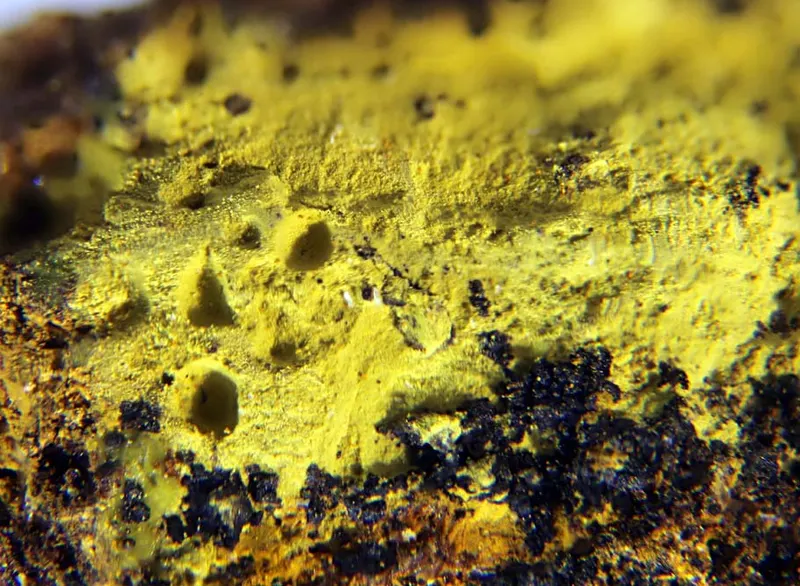

Bismutoferrite

Fe3+2Bi(SiO4)2(OH)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Bif
Discovered
1871
Also known as
  • Bismuthoferrite
  • Bismutoferriet

Where it forms, where it's found

Type locality
Schneeberg
  1. Erzgebirgskreis
  2. Saxony
  3. Germany
52recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
yellow · green
Streak
light green
Tenacity
brittle
Fracture
Conchoidal
Density
4.47 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.93 – 2.01
Surface relief
Very high
Principal indices
nα 1.93 · nβ 1.97 · nγ 2.01
Dispersion
r > v strong
Michel-Lévy diagramhighlighted lineδ = 0.0800
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]800 nm2nd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation800 nm
Order2nd order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
Cm
Cell parameters
a = 5.21 Å · b = 9.02 Å · c = 7.74 Å
Cell angles
β = 100.67 °
Ratio a:b:c
1 : 1.731 : 1.486
Z
2
Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
83BiBismuthBismuth1208.980208.980
40.05%
8OOxygenOxygen915.999143.991
27.59%
26FeIronIron255.845111.690
21.40%
14SiSiliconSilicon228.08556.170
10.77%
1HHydrogenHydrogen11.0081.008
0.19%
Total521.839100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • As

Synonyms

  • Bismuthoferrite
  • Bismutoferriet

In other languages

German
Bismutoferrit
Italian
Bismutoferrite

Classification

Strunz
10th ed.

9.ED.25

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EDPhyllosilicates with kaolinite layers composed of tetrahedral and octahedral netsGroup
  • 9.ED.25BismutoferriteSpecies
Dana
8th ed.

71.01.03.01

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.01Sheets of 6-membered rings with 1:1 layersType
  • 71.01.03Bismutoferrite groupGroup
  • 71.01.03.01BismutoferriteSpecies
CIM

14.14.8

  • 14Silicates not Containing AluminumClass
  • 14.14Silicates of V and BiGroup
  • 14.14.8BismutoferriteSpecies

Group, growth & confusion

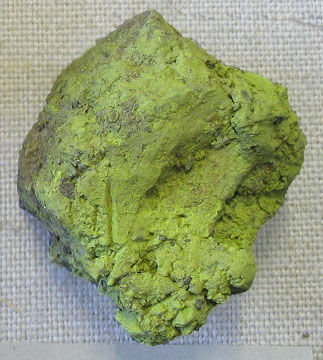

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1957Milton, C., Axelrod, J.M., Ingram, B. (1957) Bismutoferrite, chapmanite, and "hypochlorite'. Bulletin of the Geological Society America, 68, 7169 (abs.).
  2. 1958Milton, Charles, Axelrod, Joseph M., Ingram, Blanche (1958) Bismutoferrite, chapmanite and "hypochlorite". American Mineralogist, 43 (7-8) 656-670
  3. 1958Fleischer, M. (1958) New mineral names. American Mineralogist, 43, 623-626.
  4. 1977Zhukhlistov, A.P., Zvyagin, B.B. (1977) Determination of the crystal structures of chapmanite and bismuthoferrite by high-voltage electron diffraction. Soviet Physics - Crystallography, 22, 419-423.
  5. 2001(2001) Bismutoferrite. Handbook of Mineralogy. Mineralogical Society of America
