Boltwoodite

(K,Na)(UO2)(SiO3OH) · 1.5H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Bwd
Discovered
1956
Also known as
  • Boltwoodiet

Where it forms, where it's found

Geological setting

An oxidation product of primary black U ores.

Alteration zone around uranium deposits.

Type locality
Pick's Delta Mine
  1. San Rafael Swell Mining District
  2. Emery County
  3. Utah
  4. USA

38.5635°, -110.9440°

78recorded occurrences
Source · OpenStreetMap

Radioactivity

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Pearly · Vitreous · Silky
Transparency
Translucent
Colour
Pale yellow · orange yellow
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (010), imperfect on (001).

Fracture
Irregular/Uneven
Density
4.7 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.668 – 1.703
Surface relief
High
Principal indices
nα 1.668 – 1.670 · nβ 1.695 – 1.696 · nγ 1.698 – 1.703
Birefringence
0.007-0.008
Pleochroism
Weak

X = colorless; Y = Z = yellow.

Dispersion
r > v or r < v
Michel-Lévy diagramhighlighted lineδ = 0.0070
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]70 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation70 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#9
Cell parameters
a = 7.073(2) Å · b = 7.064(1) Å · c = 6.638(1) Å
Cell angles
β = 105.45 °
Ratio a:b:c
1 : 0.999 : 0.938
Z
2
Morphology

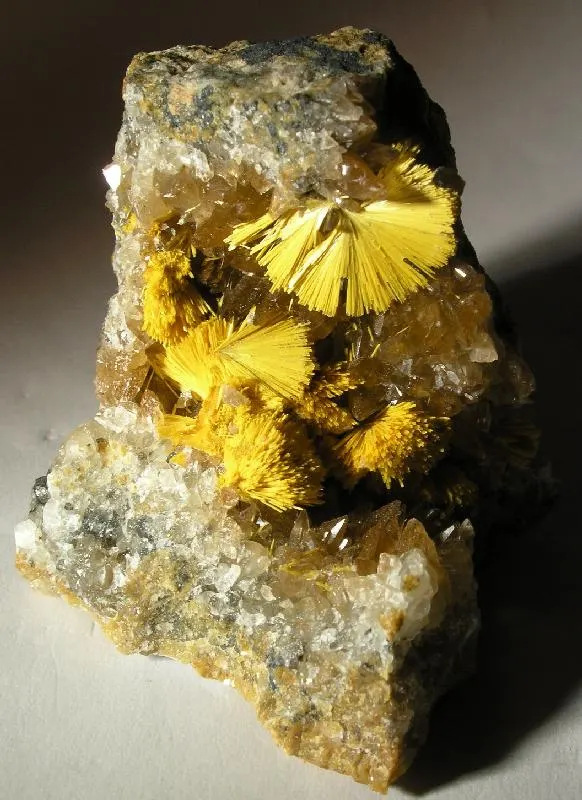

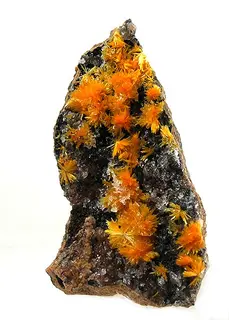

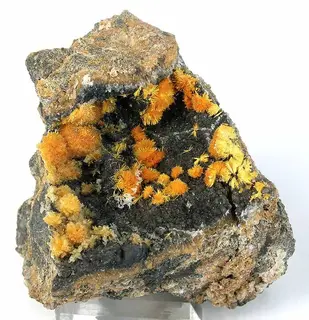

Radiating acicular to fibrous crystals, also earthy pseudomorphs of uranium minerals.

Type-locality form

Wart-like aggregates of fibers coating fractures in sandstone.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
92UUraniumUranium1238.029238.029
52.64%
8OOxygenOxygen7.515.999119.993
26.53%
19KPotassiumPotassium139.09839.098
8.65%
14SiSiliconSilicon128.08528.085
6.21%
11NaSodiumSodium122.99022.990
5.08%
1HHydrogenHydrogen41.0084.032
0.89%
Total452.226100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Fe
  • Ca
  • Na

Synonyms

  • Boltwoodiet

In other languages

French
Boltwoodite
German
Boltwoodit
Spanish
Boltwoodita
Italian
Boltwoodite
Japanese
ボルトウッド石
Chinese
硅钾铀矿
Russian
Болтвудит

Classification

Strunz
10th ed.

9.AK.15

  • 9SilicatesClass
  • 9.ANesosilicatesDivision
  • 9.AKUranyl neso- and polysilicatesGroup
  • 9.AK.15BoltwooditeSpecies
Dana
8th ed.

53.03.01.05

  • 53Nesosilicates Insular Sio4 Groups and Other Anions or Complex CationsClass
  • 53.03Insular SiO4 Groups and Other Anions of Complex Cations with (UO2)Type
  • 53.03.01Uranophane groupGroup
  • 53.03.01.05BoltwooditeSpecies
CIM

14.16.6

  • 14Silicates not Containing AluminumClass
  • 14.16Silicates of UGroup
  • 14.16.6BoltwooditeSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
1 mineral

Literature, links & citation

Citations
  1. 1956FRONDEL, C., ITO, J. (1956) Boltwoodite, a New Uranium Silicate. Science, 124 (3228). 931 doi:10.1126/science.124.3228.931DOI: 10.1126/science.124.3228.931
  2. 1957Fleischer, M. (1957) New mineral names. American Mineralogist, 42 (3-4). 307-308
  3. 1961Honea, Russell M. (1961) New data on boltwoodite, an alkali uranyl silicate. American Mineralogist, 46 (1-2) 12-25
  4. 1974KATO, TOSHIO, MIURA, YASUNORI (1974) Cell Dimensions of Boltwoodite. Mineralogical Journal, 7 (4). 400-404 doi:10.2465/minerj1953.7.400 DOI: 10.2465/minerj1953.7.400
  5. 1981Stohl, Frances V., Smith, Deane K. (1981) The crystal chemistry of the uranyl silicate minerals. American Mineralogist, 66 (5-6) 610-624
