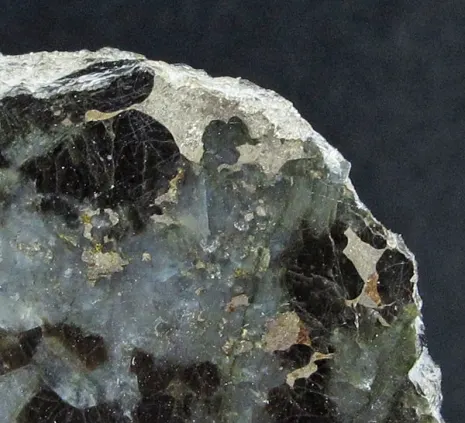

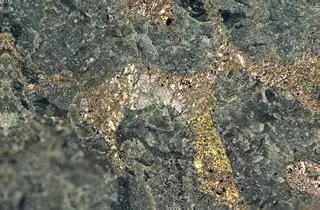

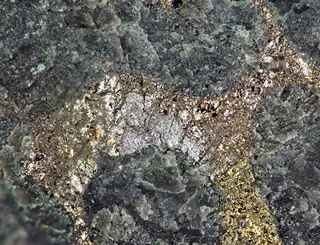

Braggite

PdPt3S4
IMA status
  • Approved
IMA symbol
Bg
Discovered
1932

Where it forms, where it's found

Geological setting

Norites in mafic layered intrusives.

Type locality
Mokopane
  1. Mogalakwena Local Municipality
  2. Waterberg District Municipality
  3. Limpopo
  4. South Africa

-24.1833°, 29.0167°

119recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
9.63 g/cm³

Optical

Optical colour
White
Anisotropism
Distinct in purplish and pinkish shades of gray and brown
Tropism
Anisotropic
Reflectance R%
(41.3,41.8) 400, (42.1,43.0) 440, (42.5,43.8) 480, (42.7,44.2) 520, (42.5,44.2) 560, (42.3,44.1) 600, (41.9,44.0) 640, (41.9,43.8) 680, (41.5,43.8) 700
UV response
Not fluorescent in UV
Reflected-light panel
42.1 %anisotropic · dual curve
Specimen sRGB 230, 162, 89
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Distinct in purplish and pinkish shades of gray and brown
Reflected colour
White

Crystallography

Crystal system
Tetragonal
Space group
#139
Cell parameters
a = 6.367 Å · c = 6.561 Å
Z
8
Morphology

Prisms to 2 cm.

Twinning

Sometimes observed

Type-locality form

Silvery metallic grains.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
78PtPlatinumPlatinum3195.084585.252
71.38%
16SSulfurSulfur432.060128.240
15.64%
46PdPalladiumPalladium1106.420106.420
12.98%
Total819.912100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

In other languages

French
Braggite
German
Braggit
Spanish
Braggita
Italian
Braggite
Japanese
ブラッグ鉱
Chinese
硫砷鉑礦 · 硫镍钯铂矿

Classification

Strunz
10th ed.

2.CC.35a

  • 2Sulfides and SulfosaltsClass
  • 2.CMetal Sulfides, M: S = 1: 1 (and similar)Division
  • 2.CCWith Ni, Fe, Co, PGE, etc.Group
  • 2.CC.35aBraggiteSpecies
Dana
8th ed.

02.08.05.03

  • 02SulfidesClass
  • 02.08AmXp, with m:p = 1:1Type
  • 02.08.05Cooperite GroupGroup
  • 02.08.05.03BraggiteSpecies
CIM

3.12.45

  • 3Sulphides, Selenides, Tellurides, Arsenides and Bismuthides (except the arsenides, antimonides and bismuthides of Cu, Ag and Au, which are included in Section 1)Class
  • 3.12Sulphides etc. of the platinum metalsGroup
  • 3.12.45BraggiteSpecies

Group, growth & confusion

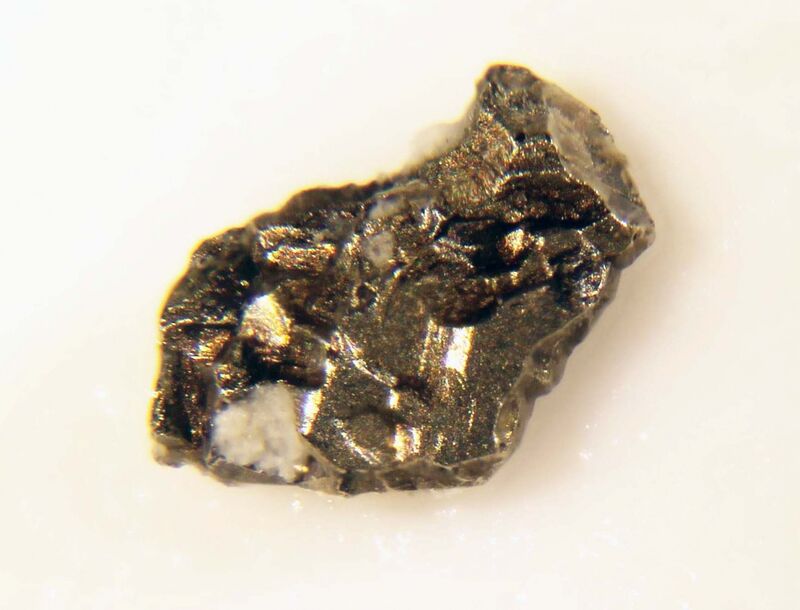

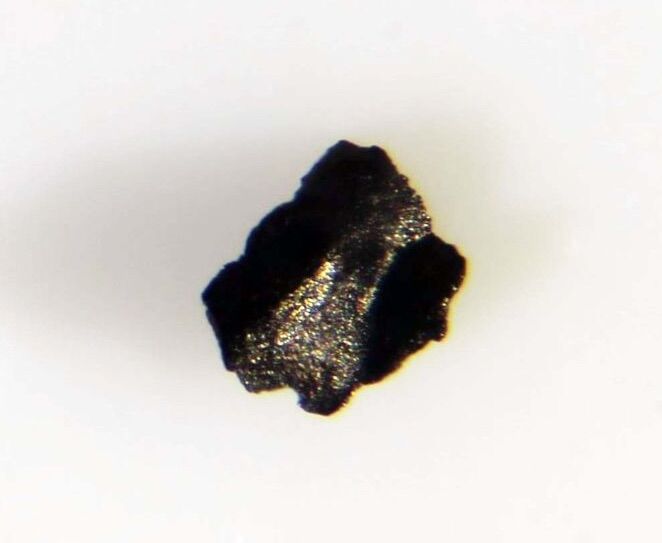

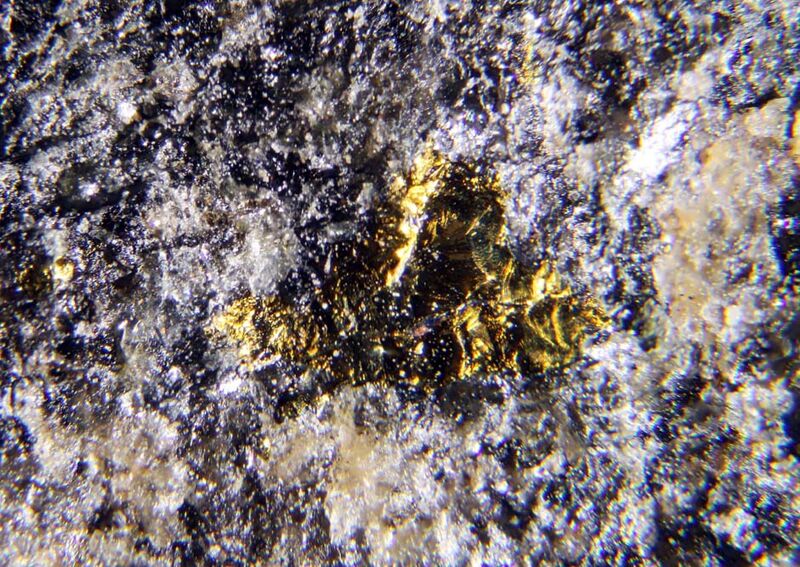

Often grow together
3 minerals

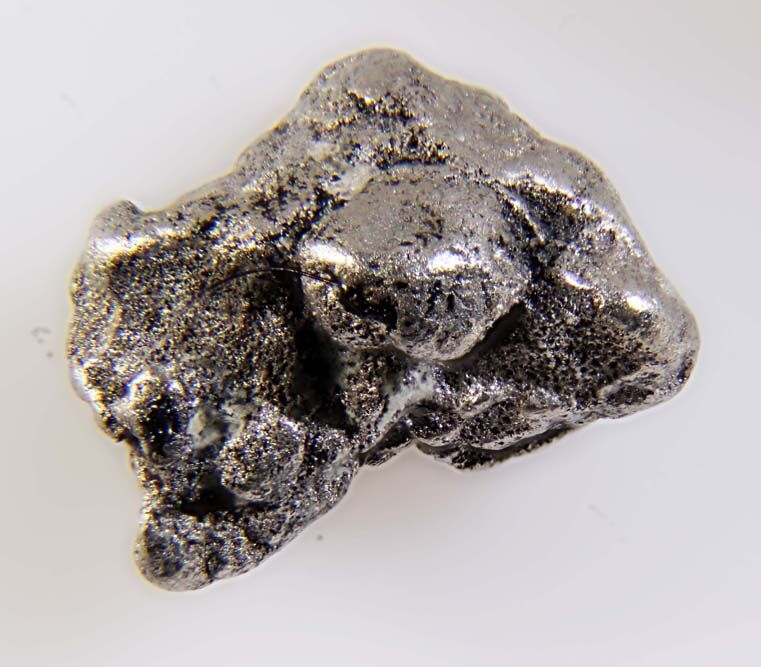

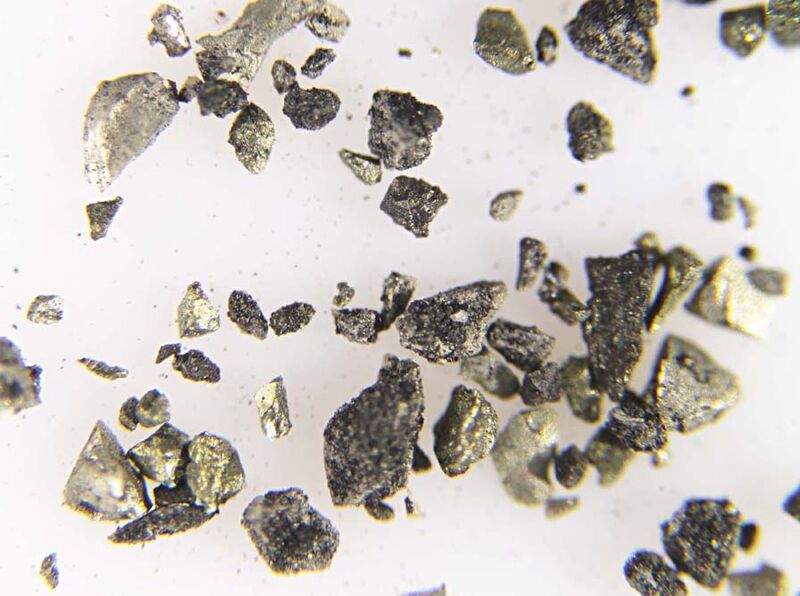

Commonly confused with
2 minerals

Literature, links & citation

Citations
  1. 1932Bannister, F.A. (1932) Proceedings of societies: Mineralogical Society of Great Britain and Ireland. American Mineralogist: 17: 455-455.
  2. 1932Bannister, F. A. (1932) Determination of minerals in platinum concentrates from the Transvaal by X-ray methods. Mineralogical Magazine and Journal of the Mineralogical Society, 23 (138) 188-206 doi:10.1180/minmag.1932.023.138.05 DOI: 10.1180/minmag.1932.023.138.05
  3. 1933Foshag, W..F (1933) New mineral names. American Mineralogist: 18: 79-79.
  4. 1933Adam, H.R. (1933) A note on the minerals cooperite and braggite occurring in plantiniferous concentrates from the Transvaal. Journal of the Southern African Institute of Mining and Metallurgy: 34(4): 132-136.
  5. 1937Bannister, F. A. (1937) The Discovery of Braggite. Zeitschrift für Kristallographie, 96 (1). 201 doi:10.1524/zkri.1937.96.1.201DOI: 10.1524/zkri.1937.96.1.201
