Cairncrossite

Sr2Ca7-xNa2x(Si4O10)4(OH)2(H2O)15-x
IMA status
  • Approved
IMA symbol
Ccs
IMA approved
2013
Also known as
  • Cairncrossiet
  • IMA2013-012

Where it forms, where it's found

Geological setting

Dump material (within Mn ore). The last mineral to have formed during metasomatic alteration of a primary carbonate-rich manganese ore.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colourless

Appears white

Streak
White
Tenacity
sectile
Cleavage
Perfect

Parallel to (001)

"sectile before brittle fracture"

Density
2.846 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 33.9° · 2V calc = 44.97°
Refractive index
1.518 – 1.546
Surface relief
Moderate
Principal indices
nα 1.518 · nβ 1.522 · nγ 1.546
Pleochroism
Non-pleochroic
Dispersion
weak (r < v)
UV response
light-blue, intense (SWUV)
Notes

indicatrix orientation: Z ∧ c* = 10°

Michel-Lévy diagramhighlighted lineδ = 0.0280
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]280 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation280 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 9.6265(5) Å · b = 9.6391(5) Å · c = 15.6534(10) Å
Cell angles
α = 100.89(1) ° · β = 91.27(1) ° · γ = 119.73(1) °
Ratio a:b:c
1 : 1.001 : 1.626
Unit cell volume
1227.08 ų
Z
1
Type-locality form

Radiating platy-micaceous aggregates, up to 1 cm.

Chemical composition

Impurities
  • Na

Synonyms

  • Cairncrossiet
  • IMA2013-012

In other languages

German
Cairncrossit · IMA 2013-012
Italian
cairncrossite

Classification

Strunz
10th ed.

9.EE

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EECairncrossiteSpecies

Group, growth & confusion

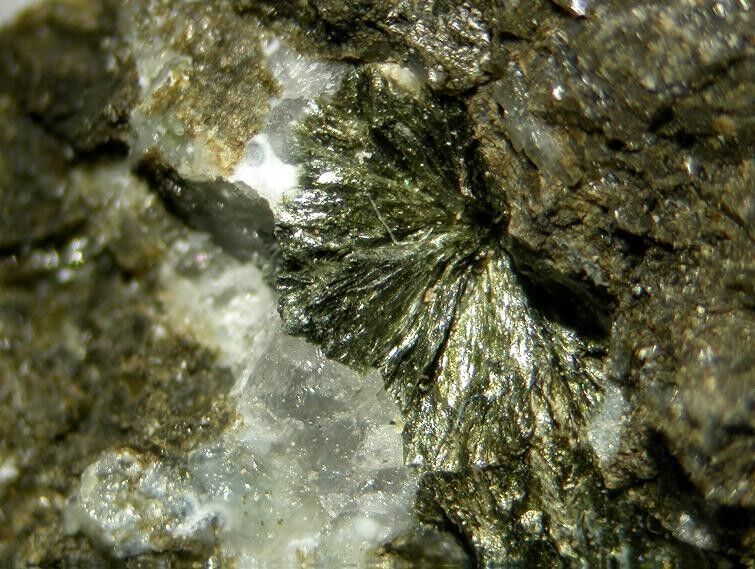

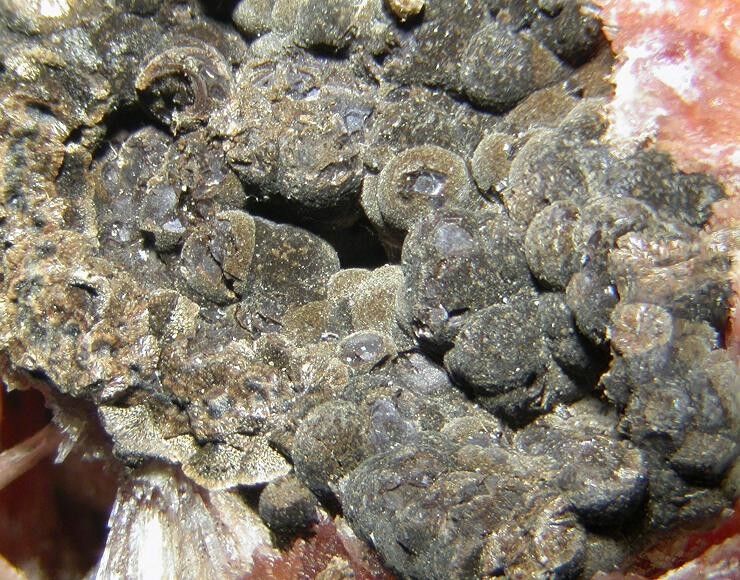

In the same group
3 members

Literature, links & citation

Citations
  1. 2013Pristacz, H., Giester, G., Rieck, B., Lengauer, C.L. (2013): Thermal behaviour of the new mineral Cairncrossite, Sr2Ca7(Si4O10)4(OH)2·15H2O. Poster, MinPet 2013, September 19-23; abstract in Mitt. Österr. Mineral. Ges. 159. [http://erdwissenschaften.uni-graz.at/aktuelles/veranstaltungen/minpet2013/downloads/ThirdCircular2013_Final.pdf]
  2. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No 16. Mineralogical Magazine, 77 (6) 2695-2709 doi:10.1180/minmag.2013.077.6.01DOI: 10.1180/minmag.2013.077.6.01
  3. 2016Giester, Gerald, Lengauer, Christian L., Pristacz, Helmut, Rieck, Branko, Topa, Dan, Von Bezing, Karl-Ludwig (2016) Cairncrossite, a new Ca-Sr (-Na) phyllosilicate from the Wessels Mine, Kalahari Manganese Field, South Africa. European Journal of Mineralogy, 28 (2) 495-505 doi:10.1127/ejm/2016/0028-2519 DOI: 10.1127/ejm/2016/0028-2519
  4. 2017(2017) Cairncrossite. Handbook of Mineralogy. Mineralogical Society of America
