Orlymanite

Ca4Mn2+3Si8O20(OH)6 · 2H2O
IMA status
  • Approved
IMA symbol
Orl
Discovered
1990
Also known as
  • IMA1988-029
  • Orlymaniet

Where it forms, where it's found

Geological setting

Vein mineral in manganese ore.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous
Transparency
Translucent
Colour
Dark brown
Streak
Light brown
Cleavage
Perfect

on (0001)

Density
2.7 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.598
Surface relief
Moderate
Principal indices
nω 1.598
Pleochroism
Visible

O = pale brown E' = dark brown

UV response
None observed

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 9.60(2) Å · c = 35.92(10) Å
Z
5
Morphology

Fibrous crystals, botryoidal

Type-locality form

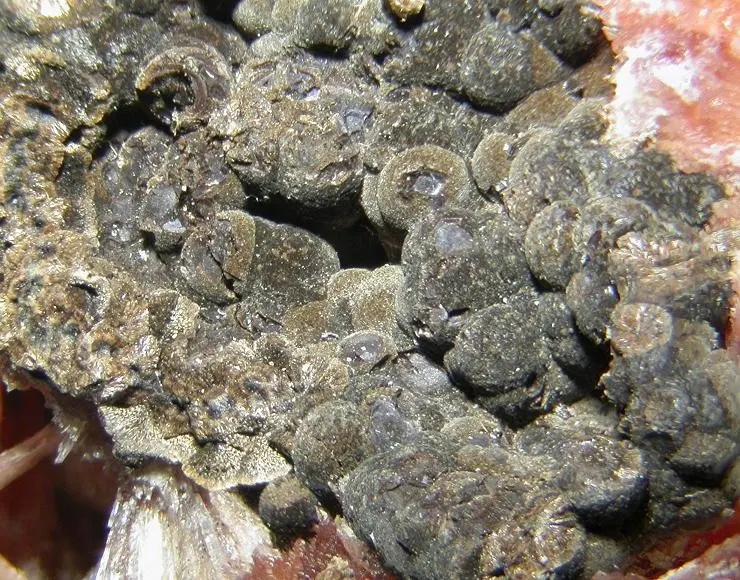

Dark brown, radiating, tightly packed rosettes that form spheres 2-3 mm in diameter, or more irregular aggregates resembling a botryoidal texture in cross section.

Comment

Point Group: _3 or 3:; Space Group: _P3 or P3

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen2815.999447.972
44.45%
14SiSiliconSilicon828.085224.680
22.29%
25MnManganeseManganese354.938164.814
16.35%
20CaCalciumCalcium440.078160.312
15.91%
1HHydrogenHydrogen101.00810.080
1.00%
Total1007.858100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Al
  • Fe
  • Mg
  • Na

Synonyms

  • IMA1988-029
  • Orlymaniet

In other languages

German
IMA 1988-029 · Orlymanit
Italian
Orlymanite

Classification

Strunz
10th ed.

9.EE.30

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EESingle tetrahedral nets of 6-membered rings connected by octahedral nets or octahedral bandsGroup
  • 9.EE.30OrlymaniteSpecies
Dana
8th ed.

73.02.2b.02

  • 73Phyllosilicates Condensed Tetrahedral SheetsClass
  • 73.02Condensed Tetrahedral Sheets with double and single layersType
  • 73.02.2b— unnamed intermediate level —Group
  • 73.02.2b.02OrlymaniteSpecies
CIM

14.18.20

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.20OrlymaniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1990Peacor, Donald R., Dunn, Pete J., Nelen, Joseph A. (1990) Orlymanite, Ca4Mn3Si8O20(OH)6-2H2O, a new mineral from South Africa: A link between gyrolite-family and conventional phyllosilicate minerals?. American Mineralogist, 75 (7-8) 923-927
  2. 1997Mandarino, Joseph A. (1997) New Minerals 1990-1994. The Mineralogical Record Inc., Tuscon, Arizona. 220pp.
  3. 2001(2001) Orlymanite. Handbook of Mineralogy. Mineralogical Society of America
