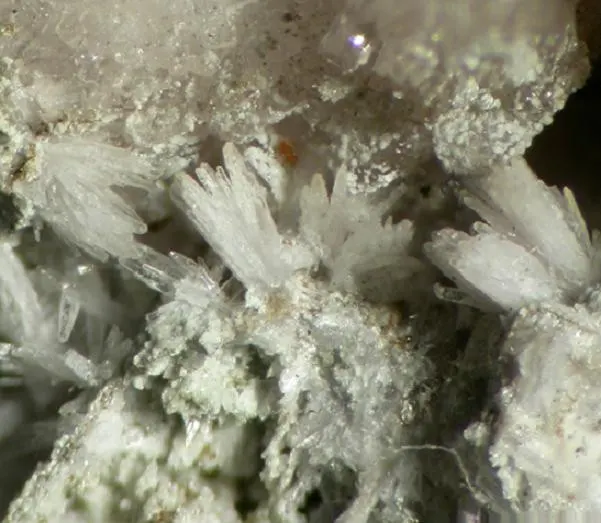

Calcioancylite-(Ce)

(Ce,Ca,Sr)(CO3)(OH,H2O)
IMA status
  • Approved
  • Grandfathered
IMA symbol
Canc-Ce
Also known as
  • Calcio-ancylite-(Ce)
  • Calcioancyliet-(Ce)
  • Kalsiumankylitt

Where it forms, where it's found

Geological setting

Nepheline-Syenite pegmatite

52recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 4.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Colourless · white · pale pink · pink · grey
Tenacity
brittle
Cleavage
None Observed
Fracture
Splintery

Optical

Optical type
Biaxial (-) · 2V measured = 60 – 70° · 2V calc = 66°
Refractive index
1.654 – 1.772
Surface relief
High
Principal indices
nα 1.654 · nβ 1.733 · nγ 1.772
Dispersion
r < v
Michel-Lévy diagramhighlighted lineδ = 0.1180
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]1180 nm3rd order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation1180 nm
Order3rd order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 5.0095(1) Å · b = 8.5006(1) Å · c = 7.2670(1) Å
Ratio a:b:c
1 : 1.697 : 1.451
Unit cell volume
309.46 ų
Comment

Space group Pmcn (non-standard setting).

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
58CeCeriumCerium1140.116140.116
38.62%
38SrStrontiumStrontium187.62087.620
24.15%
8OOxygenOxygen515.99979.995
22.05%
20CaCalciumCalcium140.07840.078
11.04%
6CCarbonCarbon112.01112.011
3.31%
1HHydrogenHydrogen31.0083.024
0.83%
Total362.844100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Calcio-ancylite-(Ce)
  • Calcioancyliet-(Ce)
  • Kalsiumankylitt

In other languages

German
Calcioankylit-(Ce)
Spanish
Calcioancilita- · calcioancilita-(Ce)
Italian
Calcio-ancylite-(Ce) · Calcioancylite- · Calcioancylite-(Ce)

Classification

Strunz
10th ed.

5.DC.05

  • 5CarbonatesClass
  • 5.DCarbonates with additional anions, with H2ODivision
  • 5.DCWith large cationsGroup
  • 5.DC.05Calcioancylite-(Ce)Species
Dana
8th ed.

16b.01.01.02

  • 16bHydrated Carbonates Containing Hydroxyl or HalogenClass
  • 16b.01AmBn(XO3)pZqxH2O & with (m+n):p = 1:1Type
  • 16b.01.01Ancylite groupGroup
  • 16b.01.01.02Calcioancylite-(Ce)Species
CIM

11.8.13

  • 11CarbonatesClass
  • 11.8Carbonates of the rare earthsGroup
  • 11.8.13Calcioancylite-(Ce)Species

Group, growth & confusion

Literature, links & citation

Citations
  1. 1904Tschernik, G.P. (1904) Verh. min. Ges. St. Petersburg: 41: 43 (as Eisenkalkankylit, Mangankalkankylit).
  2. 1904Chernik, G.P. (1904) The nature and chemical composition of a new cerian ancylite-like mineral. Zapiski Imperatorskogo Mineralogichsekogo Obshchestva, 71,43-54.
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1987Nickel, Ernest H., Mandarino, Joseph A. (1987) Procedures involving the IMA Commission on New Minerals and Mineral Names and guidelines on mineral nomenclature. American Mineralogist, 72 (9-10) 1031-1042
  5. 1987Nelen, Joseph A., White, John Sampson (1987) Monazite and Calcioancylite from the Foote Mine, North Carolina. The Mineralogical Record, 18 (3) 203-205
Cite this entry
@misc{mineral2026,
  author    = {Mineral Index editorial board},
  title     = {Calcioancylite-(Ce) — Mineral Index},
  year      = {2026},
  url       = {https://mineralindex.org/minerals/calcioancylite-ce-855},
  note      = {Accessed 2026-05-11}
}
