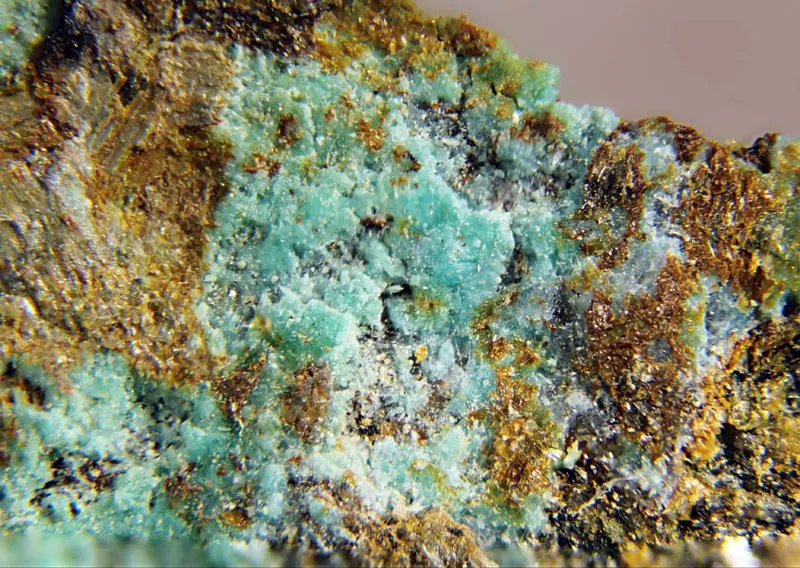

Carrboydite

(Ni1-xAlx)(SO4)x/2(OH)2 · nH2O (x < 0.5, n > 3x/2)
IMA status
  • Approved
  • Questionable
IMA symbol
Cby
Discovered
1974
Also known as
  • Carrboydiet
  • IMA1974-033

Where it forms, where it's found

Geological setting

secondary mineral in the oxidized zone of nickel sulfide deposits

Type locality
Carr Boyd Rocks Ni mine
  1. Menangina Station
  2. Menzies Shire
  3. Western Australia
  4. Australia

-30.0668°, 121.6269°

3recorded occurrences
Source · OpenStreetMap

Physical

Transparency
Translucent
Colour
Yellowish-green · blue-green
Density
2.50 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.54 – 1.56
Surface relief
Moderate
Principal indices
nω 1.56 · nε 1.54
Notes

may be biaxial (–)

Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Cell parameters
a = 9.14 Å · c = 10.34 Å
Z
1
Comment

Point Group: n.d; Space Group: n.d.

Synonyms

  • Carrboydiet
  • IMA1974-033

In other languages

German
Carrboydit · IMA 1974-033
Italian
Carrboydite

Classification

Strunz
10th ed.

7.DD.35

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.35CarrboyditeSpecies
Dana
8th ed.

31.10.01.01

  • 31Hydrated Sulfates Containing Hydroxyl or HalogenClass
  • 31.10MiscellaneousType
  • 31.10.01— unnamed intermediate level —Group
  • 31.10.01.01CarrboyditeSpecies
CIM

12.2.22

  • 12Carbonates with other anionsClass
  • 12.2Carbonates with sulphateGroup
  • 12.2.22CarrboyditeSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1976Nickel, Ernest, H., Clarke, Richard M. (1976) Carrboydite, a hydrated sulfate of nickel and aluminum: a new mineral from Western Australia. American Mineralogist, 61 (5-6) 366-372
  2. 1981Nickel, Ernest H., Wildman, John E. (1981) Hydrohonessite—a new hydrated Ni-Fe hydroxy-sulphate mineral; its relationship to honessite, carrboydite, and minerals of the pyroaurite group. Mineralogical Magazine, 44 (335) 333-337 doi:10.1180/minmag.1981.044.335.14 DOI: 10.1180/minmag.1981.044.335.14
  3. 2003Frost, Ray L., Weier, Matt L., Kloprogge, J. Theo (2003) Raman spectroscopy of some natural hydrotalcites with sulphate and carbonate in the interlayer. Journal of Raman Spectroscopy, 34 (10). 760-768 doi:10.1002/jrs.1050DOI: 10.1002/jrs.1050
  4. 2003Frost, Ray L., Weier, Matt L., Clissold, Meagan E., Williams, Peter A., Kloprogge, J.Theo (2003) Thermal decomposition of the natural hydrotalcites carrboydite and hydrohonessite. Thermochimica Acta, 407. 1-9 doi:10.1016/s0040-6031(03)00262-4DOI: 10.1016/s0040-6031(03)00262-4
  5. 2003Frost, Ray L., Weier, Matt L., Clissold, Meagan E., Williams, Peter A. (2003) Infrared spectroscopic study of natural hydrotalcites carrboydite and hydrohonessite. Spectrochimica Acta Part A: Molecular and Biomolecular Spectroscopy, 59 (14) 3313-3319 doi:10.1016/s1386-1425(03)00160-4DOI: 10.1016/s1386-1425(03)00160-4
