Hydrowoodwardite

(Cu1-xAlx)(SO4)x/2(OH)2 · nH2O (x < 0.5, n > 3x/2)
IMA status
  • Approved
IMA symbol
Hwwd
IMA approved
1996
Also known as
  • Hydrowoodwardiet
  • Hydrowoodwardita
  • IMA1996-038

Where it forms, where it's found

Geological setting

Secondary mineral in copper deposits.

Type locality
St Briccius Mine
  1. Königswalde
  2. Erzgebirgskreis
  3. Saxony
  4. Germany

50.5733°, 13.0381°

20recorded occurrences
Source · OpenStreetMap

Physical

Lustre
Vitreous
Transparency
Translucent
Colour
Blue · greenish-blue · pale blue
Streak
Pale blue
Cleavage
None Observed

Brittle upon loss of water.

Fracture
Irregular/Uneven
Density
2.33 g/cm³

Optical

Optical type
Uniaxial (+)
Refractive index
1.549 – 1.565
Surface relief
Moderate
Principal indices
nω 1.549 · nε 1.565
Pleochroism
Non-pleochroic
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Trigonal
Space group
#99
Cell parameters
a = 3.070(7) Å · c = 31.9(2) Å
Unit cell volume
260 ų
Z
3
Type-locality form

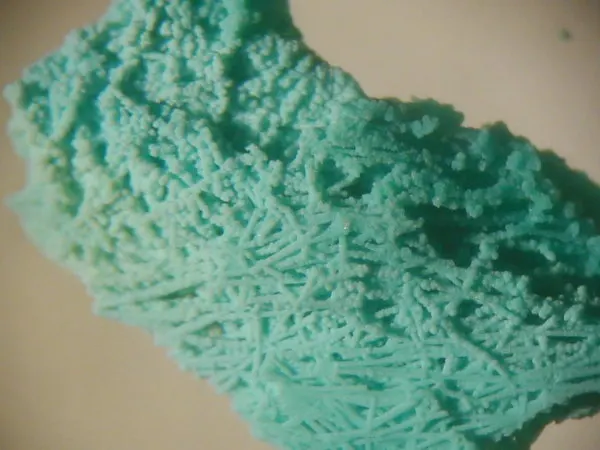

Blue stalactitic aggregates and botryoidal porous crusts.

Comment

Probable space group R-3m.

Synonyms

  • Hydrowoodwardiet
  • Hydrowoodwardita
  • IMA1996-038

In other languages

German
Hydrowoodwardit · IMA 1996-038
Italian
hydrowoodwardite · Idrowoodwardite

Classification

Strunz
10th ed.

7.DD.35

  • 7SulfatesClass
  • 7.DSulfates (selenates, etc.) with additional anions, with H2ODivision
  • 7.DDWith only medium-sized cations; sheets of edge-sharing octahedraGroup
  • 7.DD.35HydrowoodwarditeSpecies

Group, growth & confusion

Literature, links & citation

Citations
  1. 1999Jambor, J.L., Roberts, A.C. (1999) New mineral names. American Mineralogist: 84: 1464-1468.
  2. 1999Witzke, T. (1999) Hydrowoodwardite, a new mineral of the hydrotalcite group from Königswalde near Annaberg, Saxony/Germany and other localities. Neues Jahrbuch für Mineralogie - Monatshefte, 1999. 75-86
  3. 2005(2005) Hydrowoodwardite. Handbook of Mineralogy. Mineralogical Society of America
  4. 2012Mills, S. J.; Christy, A. G.; Génin, J.-M. R.; Kameda, T.; Colombo, F. (2012) Nomenclature of the hydrotalcite supergroup: natural layered double hydroxides. Mineralogical Magazine, 76 (5). 1289-1336 doi:10.1180/minmag.2012.076.5.10DOI: 10.1180/minmag.2012.076.5.10
