Challacolloite

KPb2Cl5
IMA status
  • Approved
IMA symbol
Chc
IMA approved
2005
Also known as
  • Challacolloiet
  • IMA2004-028

Where it forms, where it's found

Geological setting

hydrothermal phases

as a product of fumarole activity, on cavernous leucotephritic lava

Type locality
Lolón Main Mine
  1. Cerro Challacollo
  2. Pozo Almonte
  3. Tamarugal Province
  4. Tarapacá
  5. Chile

-20.9569°, -69.3446°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Colourless to white
Streak
White
Tenacity
brittle
Fracture
Sub-Conchoidal
Density
4.77 g/cm³

Optical

Optical type
Biaxial (+) · 2V calc = 67°
Refractive index
2.004 – 2.024
Surface relief
Very high
Principal indices
nα 2.004 · nβ 2.01 · nγ 2.024
UV response
Not fluorescent
Michel-Lévy diagramhighlighted lineδ = 0.0200
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]200 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation200 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
#14
Cell parameters
a = 8.864 Å · b = 7.932 Å · c = 12.491 Å
Cell angles
β = 90.153 °
Ratio a:b:c
1 : 0.895 : 1.409
Unit cell volume
878.2 ų
Z
4

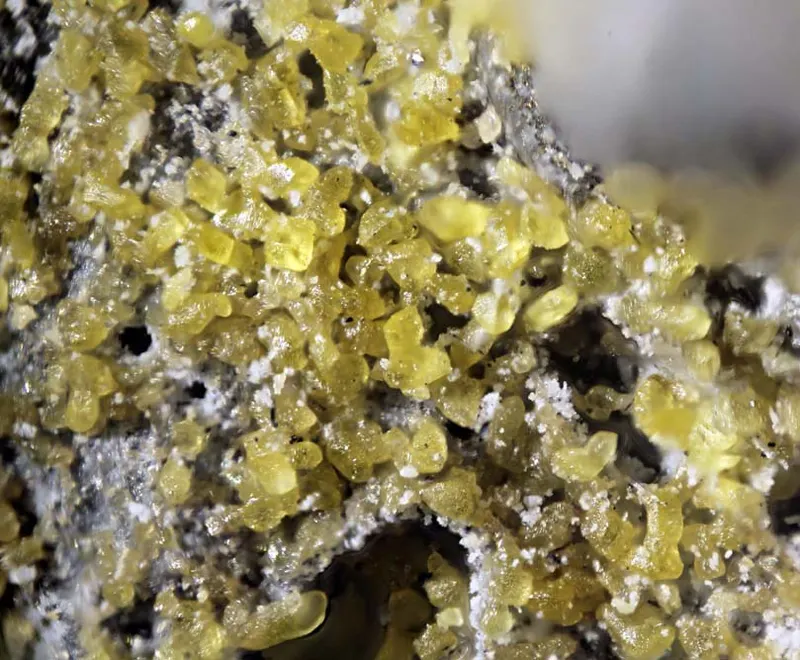

Type-locality form

Thin crusts and botryoidal aggregates. Aggregates comprised of subparallel intergrowths of bent lamellae, 25 µm in width, 50 µm in length.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead2207.200414.400
65.70%
17ClChlorineChlorine535.450177.250
28.10%
19KPotassiumPotassium139.09839.098
6.20%
Total630.748100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Challacolloiet
  • IMA2004-028

In other languages

French
challacolloite
German
Challacolloit · IMA 2004-028
Spanish
Challacolloíta · Challacolloite · IMA2004-028
Italian
Challacolloite

Classification

Strunz
10th ed.

3.AA.55

  • 3HalidesClass
  • 3.ASimple halides, without H2ODivision
  • 3.AAM:X = 1:1, 2:3, 3:5, etc.Group
  • 3.AA.55ChallacolloiteSpecies
Dana
8th ed.

11.04.02.01

  • 11Halide ComplexesClass
  • 11.04AmBX5·xH2OType
  • 11.04.02— unnamed intermediate level —Group
  • 11.04.02.01ChallacolloiteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2005Schlüter, Jochen, Pohl, Dieter, Britvin, Sergey (2005) The new mineral challacolloite, KPb2Cl5, the natural occurrence of a technically known laser material. Neues Jahrbuch für Mineralogie - Abhandlungen, 182 (1) 95-101 doi:10.1127/0077-7757/2005/0033DOI: 10.1127/0077-7757/2005/0033
  2. 2006Piilonen, P. C.; Rowe, R.; Ercit, T.S.; Locock, A.J. (2006) New Mineral Names. American Mineralogist, 91 (8). 1452-1457 doi:10.2138/am.2006.470 DOI: 10.2138/am.2006.470
  3. 2009Mitolo, D., Pinto, D., Garavelli, A., Bindi, L., Vurro, F. (2009) The role of the minor substitutions in the crystal structure of natural challacolloite, KPb2Cl5, and hephaistosite, TlPb2Cl5, from Vulcano (Aeolian Archipelago, Italy) Mineralogy and Petrology, 96 (1) 121-128 doi:10.1007/s00710-008-0041-2DOI: 10.1007/s00710-008-0041-2
  4. 2015(2015) Challacolloite. Handbook of Mineralogy. Mineralogical Society of America
