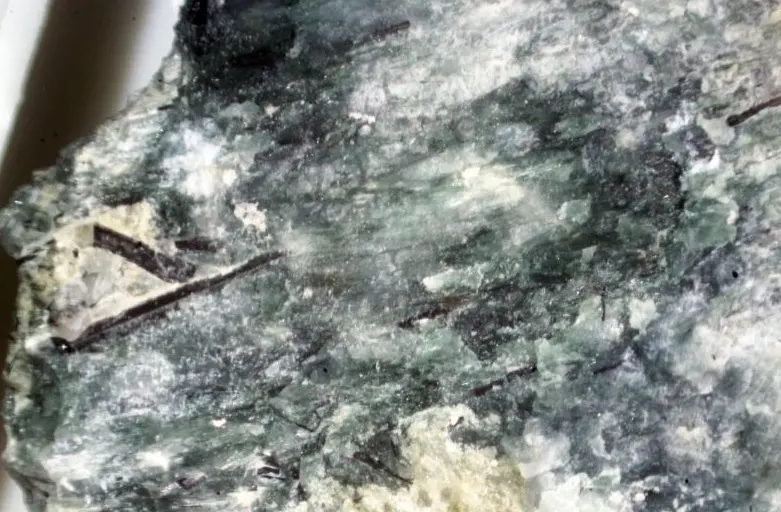

Chestermanite

Mg2(Fe3+,Mg,Al,Sb5+)O2(BO3)
IMA status
  • Approved
IMA symbol
Csm
Discovered
1986
IMA approved
1986
Also known as
  • Chestermaniet
  • IMA1986-058

Where it forms, where it's found

Geological setting

A lens of brucite marble, ~370 m2 in area, encased in a magnetite-forsterite skarn surrounded by schists and hornfels. The metamorphosed sediments are transected by dykes and sills of granodiorite.

Type locality
Unnamed Skarn occurrence [1]
  1. Kaiser Wilderness area
  2. Fresno County
  3. California
  4. USA

37.2931°, -119.1333°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
greyish-green to black in coarse crystals
Streak
Pale grayish green
Tenacity
brittle
Fracture
Irregular/Uneven · Conchoidal
Density
3.72 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 63° · 2V calc = 64°
Refractive index
1.753 – 1.791
Surface relief
High
Principal indices
nα 1.753 · nβ 1.763 · nγ 1.791
Pleochroism
Visible

X = dark greenish blue; Y = green; Z = pale yellowish brown

Dispersion
distinct to strong
UV response
No UV fluorescence
Notes

Absorption: X >> Y > Z.

Michel-Lévy diagramhighlighted lineδ = 0.0380
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]380 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation380 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Cell parameters
a = 18.525(4) Å · b = 12.272(2) Å · c = 3.0218(4) Å
Ratio a:b:c
1 : 0.662 : 0.163
Z
8
Morphology

Type material: Typically fibrous; rare prismatic crystals extended on [001] and flattened on (010); predominant forms (in order of decreasing importance) are (110), (210), and (010). Other forms identified: (100), (130), (120), (230), (540), and (320). No terminating forms were found. All crystals finely striated parallel to [011].

Comment

Space groupP bam

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
51SbAntimonyAntimony1121.760121.760
33.06%
8OOxygenOxygen515.99979.995
21.72%
12MgMagnesiumMagnesium324.30572.915
19.80%
26FeIronIron155.84555.845
15.16%
13AlAluminiumAluminium126.98226.982
7.33%
5BBoronBoron110.81010.810
2.93%
Total368.307100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chestermaniet
  • IMA1986-058

In other languages

German
Chestermanit · IMA 1986-058
Italian
Chestermanite
Chinese
齐硼铁镁矿

Classification

Strunz
10th ed.

6.AB.40

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.40ChestermaniteSpecies
Dana
8th ed.

24.02.01.05

  • 24Anhydrous BoratesClass
  • 24.02A2BO2[XO3]Type
  • 24.02.01Ludwigite Group (Space Group: Pbam)Group
  • 24.02.01.05ChestermaniteSpecies
CIM

9.8.4

  • 9BoratesClass
  • 9.8Borates of FeGroup
  • 9.8.4ChestermaniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1988Erd, R.C., Foord, E.E. (1988) Chestermanite, a new member of the ludwigite-pinakiolite group from Fresno County, California. The Canadian Mineralogist: 26: 911-916.
  2. 1990Jambor, John L., Puziewicz, Jacek (1990) New Mineral Names. American Mineralogist, 75 (3-4) 431-442
  3. 1991Alfredsson, V., Bovin, J.O., Norrestam, R., Terasaki, O. (1991) The structure of the mineral chestermanite, Mg2.25Al0.16Fe0.43Ti0.02Sb0.13O2BO3. A combined single-crystal X-ray and HREM study. Acta Chemica Scandinavica: 45: 797-804.
  4. 1992Jambor, John L. (1992) New Mineral Names. American Mineralogist, 77 (5-6) 670-675
  5. 1996Grew, Edward S.; Anovitz, Lawrence M. - Eds. (1996) Boron - Mineralogy, Petrology and Geochemistry. Reviews in Mineralogy Vol. 33. Mineralogical Society of America p.862
