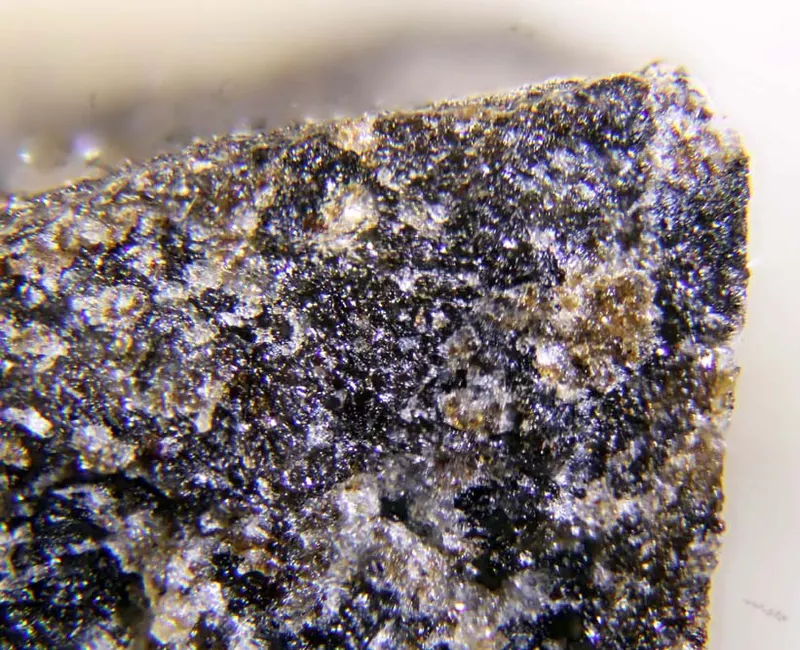

Blatterite

Sb5+3Mn3+9Mn2+35(BO3)16O32
IMA status
  • Approved
IMA symbol
Bla
Discovered
1984
IMA approved
1984
Also known as
  • Blatteriet
  • IMA1984-038

Where it forms, where it's found

Geological setting

Metamorphosed manganese orebody.

Metamorphosed Fe–Mn orebodies

Type locality
Kitteln Mine
  1. Nordmark Odal Field
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8321°, 14.1242°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Opaque
Colour
Black
Streak
Brown
Tenacity
very brittle
Cleavage
Perfect

on (001)

Density
4.18 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.91 – 2
Surface relief
Very high
Principal indices
nα 1.91 · nβ 1.97 · nγ 2
Dispersion
r < v
Extinction
X = a; Y = c; Z = b.
Anisotropism
Weak to distinct, in shades of grayish brown
Tropism
Anisotropic
Reflectance R%
(11.1,12.4) 400, (10.9,12.2) 420, (10.7,12.0) 440, (10.5,11.9) 460, (10.4,11.8) 480, (10.3,11.7) 500, (10.2,11.6) 520, (10.1,11.5) 540, (10.0,11.4) 560, (9.98,11.4) 580, (9.97,11.3) 600, (9.95,11.3) 620, (9.93,11.2) 640, (9.91,11.2) 660, (9.88,11.1) 680, (9.86,11.1) 700
Reflected-light panel
10.2 %anisotropic · dual curve
Specimen sRGB 120, 82, 45
White reference100 % reflector under same lamp
R₁ R₂
Mode
Anisotropism
Weak to distinct, in shades of grayish brown

Crystallography

Crystal system
Orthorhombic
Space group
Pnnm
Cell parameters
a = 37.69 Å · b = 12.62 Å · c = 6.25 Å
Ratio a:b:c
1 : 0.335 : 0.166
Z
32
Morphology

Crystals with a flat, diamond-shaped cross-section, prisms (110): striated along the length. Often with dull surfaces.

Parting
imperfect parting on (100)
Type-locality form

Lath-like crystals to 5 mm long and 1 mm wide embedded in manganosite or calcite.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese4454.9382417.272
57.07%
8OOxygenOxygen8015.9991279.920
30.22%
51SbAntimonyAntimony3121.760365.280
8.63%
5BBoronBoron1610.810172.960
4.08%
Total4235.432100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Blatteriet
  • IMA1984-038

In other languages

German
Blatterit · IMA 1984-038
Italian
Blatterite
Chinese
贝硼锰石

Classification

Strunz
10th ed.

6.AB.40

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.40BlatteriteSpecies
Dana
8th ed.

24.02.07.01

  • 24Anhydrous BoratesClass
  • 24.02A2BO2[XO3]Type
  • 24.02.07— unnamed intermediate level —Group
  • 24.02.07.01BlatteriteSpecies
CIM

9.7.9

  • 9BoratesClass
  • 9.7Borates of MnGroup
  • 9.7.9BlatteriteSpecies

Group, growth & confusion

In the same group
3 members
Often grow together
4 minerals

Literature, links & citation

Citations
  1. 1988Raade, Gunnar, Mladeck, M.H., Din, V.K., Criddle, A.J., Stanley, C.J. (1988) Blatterite, a new Sb-bearing Mn2+−Mn3+ member of the pinakiolite group, from Nordmark, Sweden. Neues Jahrbuch für Mineralogie - Monatshefte, 1988 (3) 121-136
  2. 1989Jambor, John L., Burke, Ernst A. J. (1989) New Mineral Names. American Mineralogist, 74 (11-12) 1399-1404
  3. 1996Bovin J O, Carlsson A, Sjôvall R, Thomasson R, Norrestam R, Søtofte I, (1996) The crystal structure of a blatterite mineral, Mg1.33Mn1.44Fe0.05Sb0.17O2BO3, a combined single crystal X-ray and HREM study. Zeitschrift für Kristallographie 211, 440-448
  4. 1998Cooper, M.A, Hawthorne, F.C. (1998) The crystal structure of blatterite, Sb5+3(Mn3+,Fe3+)9(Mn2+,Mg)35(BO3)16O32, and structural hierarchy in Mn3+-bearing zigzag borates. The Canadian Mineralogist, 36 (5). 1171-1193
  5. 2005(2005) Blatterite. Handbook of Mineralogy. Mineralogical Society of America
