Chukhrovite-(Ca)

Ca3Ca1.5Al2(SO4)F13 · 12H2O
IMA status
  • Approved
IMA symbol
Chk-Ca
IMA approved
2011
Also known as
  • Chukhroviet-(Ca)
  • IMA2010-081

Where it forms, where it's found

Geological setting

Found as low temperature hydrothermal crystallizations covering the surfaces of brittle fractures crosscutting a marcasite and REE-bearing fluorite vein.

Type locality
Val Cavallizza mine
  1. Cavagnano
  2. Cuasso al Monte
  3. Varese Province
  4. Lombardy
  5. Italy
4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Colorless · white
Streak
White
Tenacity
brittle
Cleavage
None Observed

Without a distinct cleavage.

Density
2.23 g/cm³

Optical

Optical type
Isotropic
Surface relief
Low
Principal indices
n 1.432
UV response
Non-fluorescent either under short-wave (254 nm) or long-wave (366 nm) ultraviolet light
Isotropy testPPL ↔ XPL diagnostic
PPL intrinsic colour; no change on stage rotation
XPL extinct at every orientation
Single index
n = 1.432

Crystallography

Crystal system
Isometric
Space group
#200
Cell parameters
a = 16.749(1) Å
Unit cell volume
4698.6 ų
Z
8
Morphology

Sharp octahedra up to 150 µm in diameter.

Twinning

Twinning along the [001] axis, with a rotation of 90 deg (iron cross law), is widespread, while spinel law twins are rare.

Type-locality form

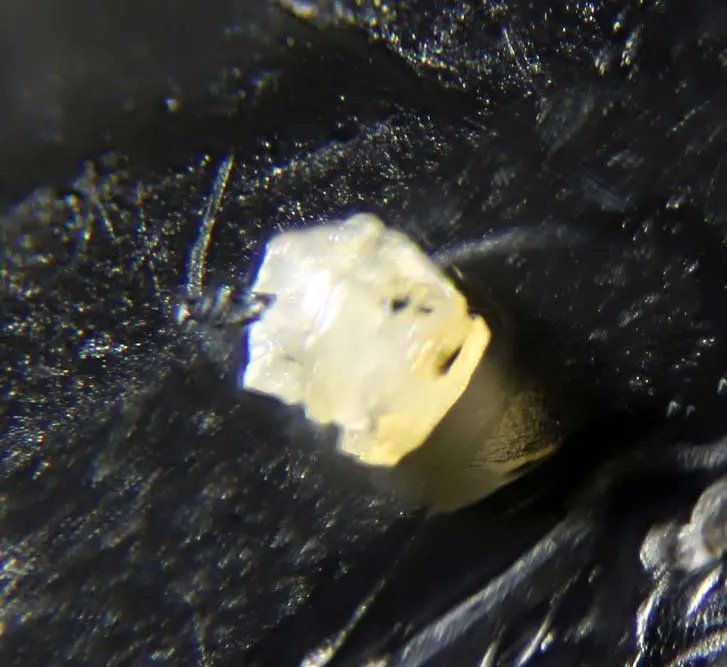

Colourless to whitish, transparent to translucent, sharp octahedral crystals up to 100–150 µm diameter.

Comment

Fd-3

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1615.999255.984
32.26%
9FFluorineFluorine1318.998246.974
31.12%
20CaCalciumCalcium4.540.078180.351
22.73%
13AlAluminiumAluminium226.98253.964
6.80%
16SSulfurSulfur132.06032.060
4.04%
1HHydrogenHydrogen241.00824.192
3.05%
Total793.525100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chukhroviet-(Ca)
  • IMA2010-081

In other languages

German
Chukhrovit-(Ca) · IMA 2010-081
Italian
Chukhrovite- · chukhrovite-(Ca)

Classification

Strunz
10th ed.

3.CG.3.CG.

  • 3HalidesClass
  • 3.CComplex halidesDivision
  • 3.CGAluminofluorides with CO3, SO4, PO4Group
  • 3.CG.3.CG.Chukhrovite-(Ca)Species

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 2011Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2011) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) Newsletter 8. Mineralogical Magazine, 75 (2) 289-294 doi:10.1180/minmag.2011.075.2.289 DOI: 10.1180/minmag.2011.075.2.289
  2. 2012Vignola, Pietro, Hatert, Frédéric, Bersani, Danilo, Diella, Valeria, Gentile, Paolo, Risplendente, Andrea (2012) Chukhrovite-(Ca), Ca4.5Al2(SO4)F13·12H2O, a new mineral species from the Val Cavallizza Pb-Zn-(Ag) mine, Cuasso al Monte, Varese province, Italy. European Journal of Mineralogy, 24 (6) 1069-1076 doi:10.1127/0935-1221/2012/0024-2247 DOI: 10.1127/0935-1221/2012/0024-2247
  3. 2013Kolitsch, U.; Brandstätter, F.; Schreiber, F.; Fink, R.; Auer, C. (2013) Die Mineralogie der weltweit einzigartigen Schlacken von Waitschach, Kärnten. Annalen des Naturhistorischen Museums in Wien, 115. 19-87
  4. 2015(2015) Chukhrovite-(Ca). Handbook of Mineralogy. Mineralogical Society of America
