Chvaleticeite

Mn(SO4) · 6H2O
IMA status
  • Approved
IMA symbol
Cva
Discovered
1986
Also known as
  • Chvaleticeiet
  • IMA1984-059

Where it forms, where it's found

Geological setting

Sulfate-rich paragenesis within the oxidation zone of an upper Proterozoic volcano-sedimentary deposit of pyrite-manganese ores.

Type locality
Chvaletice
  1. Pardubice District
  2. Pardubice Region
  3. Czech Republic

50.0278°, 15.4364°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789101.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White · pinkish · yellowish-green
Density
1.84 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.457 – 1.506
Surface relief
Low
Principal indices
nα 1.457 · nγ 1.506
Dispersion
none
Notes

Fine grained

Michel-Lévy diagramhighlighted lineδ = 0.0490
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]490 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation490 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
C2/c
Cell parameters
a = 10.05 Å · b = 7.24 Å · c = 24.31 Å
Cell angles
β = 98 °
Ratio a:b:c
1 : 0.720 : 2.419
Type-locality form

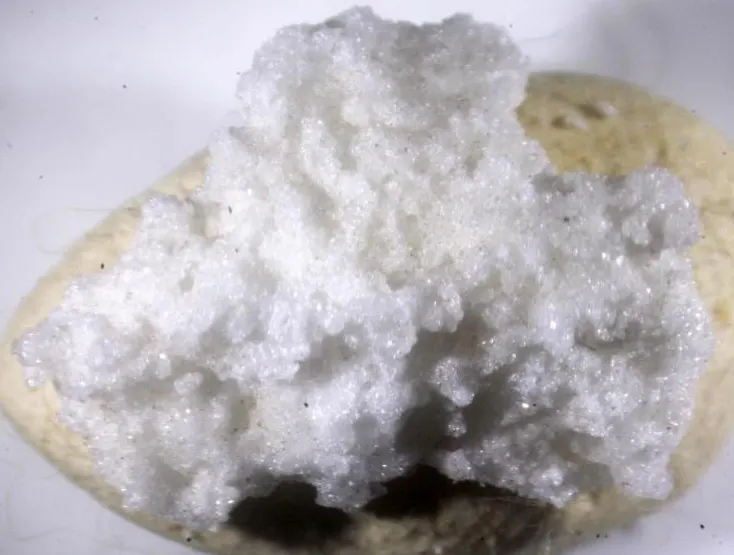

Fine grained aggregates and loose coatings. Grains do not exceed 0.05 mm in longest dimension.

Comment

unit-cell parameters were. calculated by analogy with hexahydrite

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
61.75%
25MnManganeseManganese154.93854.938
21.21%
16SSulfurSulfur132.06032.060
12.37%
1HHydrogenHydrogen121.00812.096
4.67%
Total259.084100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Chvaleticeiet
  • IMA1984-059

In other languages

French
Chvaleticéite
German
Chvaleticeit · IMA 1984-059
Italian
Chvaleticeite

Classification

Strunz
10th ed.

7.CB.25

  • 7SulfatesClass
  • 7.CSulfates (selenates, etc.) without additional anions, with H2ODivision
  • 7.CBWith only medium-sized cationsGroup
  • 7.CB.25ChvaleticeiteSpecies
Dana
8th ed.

29.06.08.06

  • 29Hydrated Acid and Normal SulfatesClass
  • 29.06AXO4·xH2OType
  • 29.06.08Hexahydrite Group (Space Group: C2/c)Group
  • 29.06.08.06ChvaleticeiteSpecies
CIM

25.9.5

  • 25SulphatesClass
  • 25.9Sulphates of MnGroup
  • 25.9.5ChvaleticeiteSpecies

Group, growth & confusion

In the same group
5 members

Literature, links & citation

Citations
  1. 1986Pašava, J., Breiter, K., Huka, M., Korecký, J. (1986) Chvaleticeite, (Mn,Mg)SO4·6H2O, a new mineral. Neues Jahrbuch für Mineralogie - Monatshefte, 1986. 121-125
  2. 1987Hawthorne, Frank C., Jambor, John L., Bladh, Kenneth W., Burke, Ernst A. J., Grice, Joel D., Phillips, Don, Roberts, Andrew C., Schedler, Robert A., E., James (1987) New mineral names. American Mineralogist, 72 (9-10) 1023-1028
  3. 2005(2005) Chvaleticeite. Handbook of Mineralogy. Mineralogical Society of America
