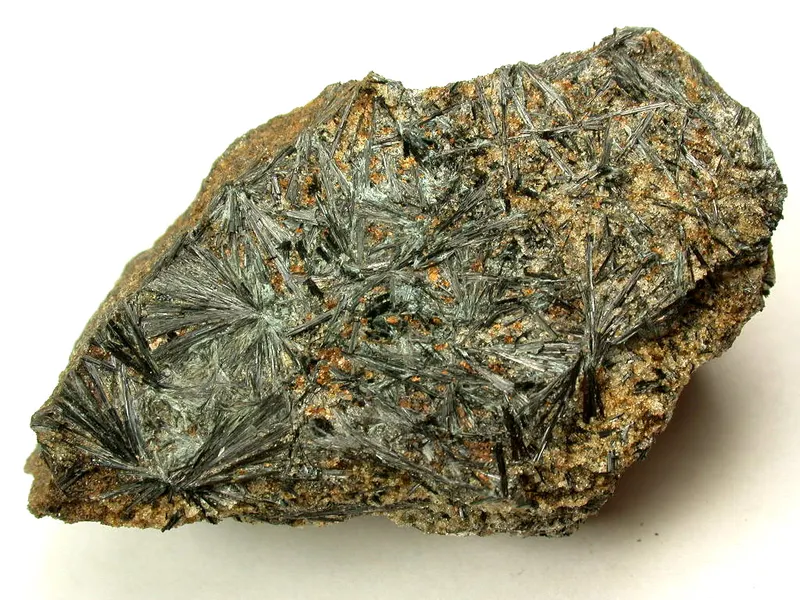

Deerite

Fe2+6Fe3+3(Si6O17)O3(OH)5
IMA status
  • Approved
IMA symbol
Dee
Discovered
1964
IMA approved
1964
Also known as
  • Deeriet
  • IMA1964-016

Where it forms, where it's found

Geological setting

Iron-rich metasediments from the blueschist facies of metamorphism.

Type locality
Laytonville Quarry
  1. Laytonville
  2. Coastal Range
  3. California
  4. USA

39.6181°, -123.4631°

21recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Black
Streak
Dark gray
Tenacity
brittle
Cleavage
Distinct/Good

good on (110)

Density
3.837 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.84 – 1.87
Surface relief
Very high
Principal indices
nα 1.840 · nγ 1.870
Birefringence
0.030
Pleochroism
Weak

X = dark brown, Y = Z = very dark brown, Z || c

Dispersion
relatively strong
Michel-Lévy diagramhighlighted lineδ = 0.0300
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]300 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation300 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21/a
Cell parameters
a = 10.786(8) Å · b = 18.88(2) Å · c = 9.564(9) Å
Cell angles
β = 107.45(5) °
Ratio a:b:c
1 : 1.750 : 0.887
Z
4
Twinning

[110] twin axis; submicroscopic, pervasive.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
26FeIronIron955.845502.605
46.70%
8OOxygenOxygen2515.999399.975
37.17%
14SiSiliconSilicon628.085168.510
15.66%
1HHydrogenHydrogen51.0085.040
0.47%
Total1076.130100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Mg

Synonyms

  • Deeriet
  • IMA1964-016

In other languages

German
Deerit · IMA 1964-016
Italian
deerite
Chinese
迪尔石

Classification

Strunz
10th ed.

9.DH.60

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.60DeeriteSpecies
Dana
8th ed.

69.02.03.03

  • 69Inosilicates Chains with Side Branches or LoopsClass
  • 69.02Chains with Side Branches or Loops with P>2Type
  • 69.02.03Howieite groupGroup
  • 69.02.03.03DeeriteSpecies
CIM

14.18.33

  • 14Silicates not Containing AluminumClass
  • 14.18Silicates of Mn and Na, K, Mg, Ca or FeGroup
  • 14.18.33DeeriteSpecies

Group, growth & confusion

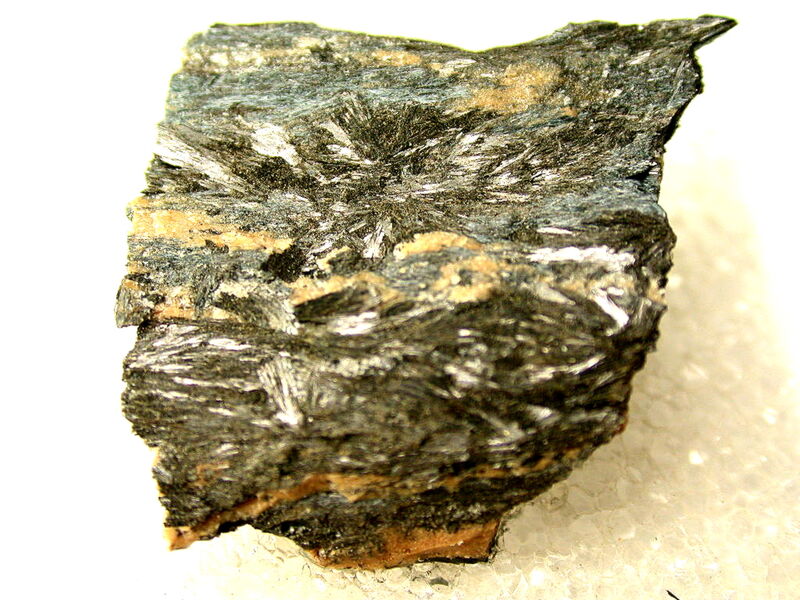

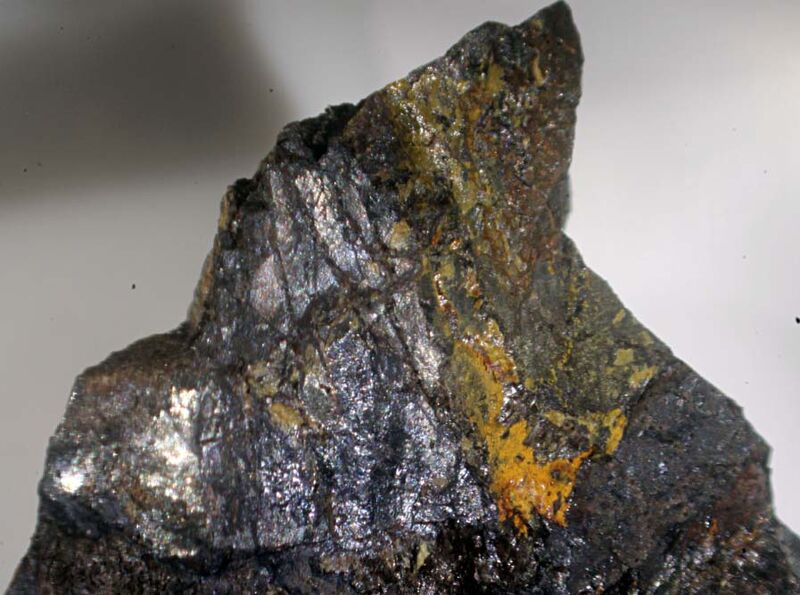

In the same group
3 members

Literature, links & citation

Citations
  1. American Mineralogist: 62: 1262.
  2. 1964Agrell, S.O. (1964), Deerite, howieite, and zussmanite, three new minerals from the Franciscan of the Laytonville district, Mendocino County, California (title only), American Mineralogist: 49.
  3. 1965Agrell, S.O., M.G. Bown & McKie (1965), Deerite, howieite and zussmanite, three new minerals from the Franciscan of the Laytonville district, Mendocino County, California: American Mineralogist: 50: 278.
  4. 1966CARMICHAEL, I. S. E., FYFE, W. S., MACHIN, D. J. (1966) Low Spin Ferrous Iron in the Iron Silicate Deerite. Nature, 211 (5056). 1389 doi:10.1038/2111389a0DOI: 10.1038/2111389a0
  5. 1969Boerner, U. (1969), Deerit, Howieit und Zussmanit, neue seltene Mineralien von einen Steinbruch bei Laytonville in Nord-Kalifornien: Aufschluss: 20: 338-341.
