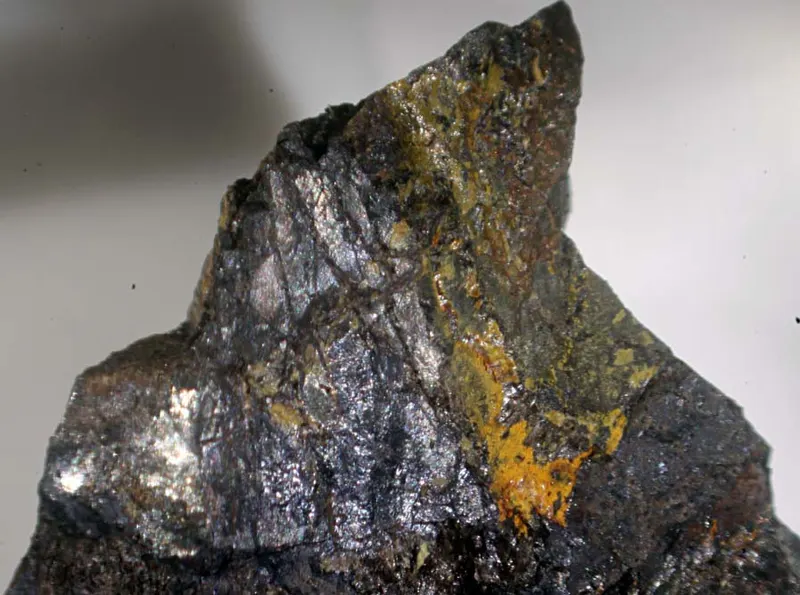

Taneyamalite

(Na,Ca)Mn2+12(Si,Al)12(O,OH)44
IMA status
  • Approved
IMA symbol
Tny
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-042
  • Taneyamaliet
  • Taneyamalit

Where it forms, where it's found

Geological setting

Metamorphic manganese ore.

Type locality
Taneyama mine
  1. Toyo
  2. Yatsushiro City
  3. Kumamoto Prefecture
  4. Japan

32.5475°, 130.7153°

4recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105 – 6/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
Greenish-grey-yellow
Streak
Light yellow
Cleavage
Perfect

Perfect to good on (010), fair on (100).

Density
3.30 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 70° · 2V calc = 70 – 76°
Refractive index
1.646 – 1.732
Surface relief
High
Principal indices
nα 1.646 – 1.697 · nβ 1.664 – 1.720 · nγ 1.676 – 1.732
Pleochroism
Visible

α = β = nearly colourless; γ = pale yellow.

Dispersion
Relatively strong.
Extinction
Nearly parallel.
Notes

Absorption: Z > Y >= X. Elongation positive.

Michel-Lévy diagramhighlighted lineδ = 0.0325
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]325 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation325 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Cell parameters
a = 10.193(5) Å · b = 9.792(32) Å · c = 9.525(25) Å
Cell angles
α = 90.5 ° · β = 70.53 ° · γ = 108.57 °
Ratio a:b:c
1 : 0.961 : 0.934
Z
1
Type-locality form

Filling small seams and fissures in caryopilite and quartz-hematite.

Comment

Point Group: _1 or 1; Space Group: P_1 or P1.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen8815.9991407.912
49.66%
25MnManganeseManganese1254.938659.256
23.25%
14SiSiliconSilicon1228.085337.020
11.89%
13AlAluminiumAluminium1226.982323.784
11.42%
1HHydrogenHydrogen441.00844.352
1.56%
20CaCalciumCalcium140.07840.078
1.41%
11NaSodiumSodium122.99022.990
0.81%
Total2835.392100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Ti
  • Al
  • Ca
  • K
  • H2O

Synonyms

  • IMA1977-042
  • Taneyamaliet
  • Taneyamalit

In other languages

German
IMA 1977-042 · Taneyamalith
Italian
taneyamalite
Japanese
種山石

Classification

Strunz
10th ed.

9.DH.65

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DHInosilicates with 4-periodic single chains, Si4O12Group
  • 9.DH.65TaneyamaliteSpecies
Dana
8th ed.

69.02.03.02

  • 69Inosilicates Chains with Side Branches or LoopsClass
  • 69.02Chains with Side Branches or Loops with P>2Type
  • 69.02.03Howieite groupGroup
  • 69.02.03.02TaneyamaliteSpecies
CIM

16.16.16

  • 16Silicates Containing Aluminum and other MetalsClass
  • 16.16Aluminosilicates of MnGroup
  • 16.16.16TaneyamaliteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1968Aoki, Y., Isono, K. (1968). Journal of the Geological Society of Japan: 74: 136.
  2. 1981AOKI, Yoshikazu, AKASAKO, Hideo, ISHIDA, Kiyotaka (1981) Taneyamalite, a new manganese silicate mineral from the Taneyama mine, Kumamoto Prefecture, Japan. Mineralogical Journal, 10 (8) 385-395 doi:10.2465/minerj.10.385DOI: 10.2465/minerj.10.385
  3. 1981Cabri, Louis J., Fleischer, Michael, Pabst, Adolf (1981) New Mineral Names. American Mineralogist, 66 (9-10) 1099-1103
  4. 1981Matsubara, Satoshi (1981) Taneyamalite, (Na,Ca)(Mn2+,Mg,Fe3+,Al)12Si12(O,OH)44, a new mineral from the Iwaizawa mine, Saitama Prefecture, Japan. Mineralogical Magazine, 44 (333). 51-53 doi:10.1180/minmag.1981.44.333.06 DOI: 10.1180/minmag.1981.44.333.06
  5. 2001(2001) Taneyamalite. Handbook of Mineralogy. Mineralogical Society of America
