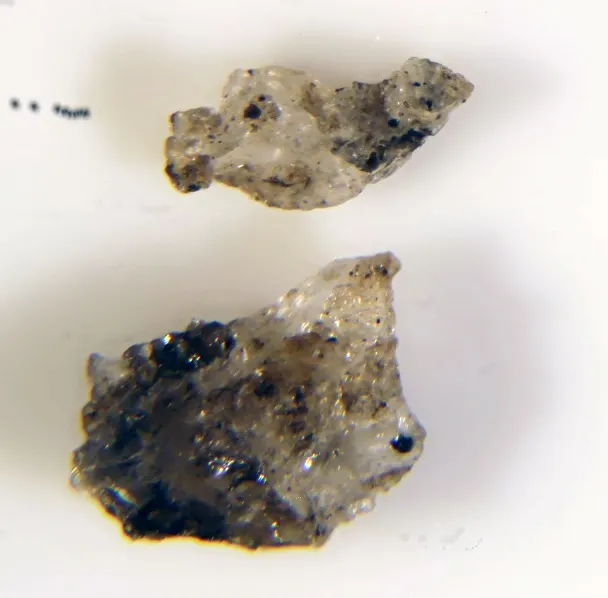

Dittmarite

(NH4)Mg(PO4) · H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Dmr
Discovered
1887
Also known as
  • Dittmariet

Where it forms, where it's found

Geological setting

A dry bat guano cave.

Type locality
Skipton Caves
  1. Mount Widderin
  2. Skipton
  3. Corangamite Shire
  4. Victoria
  5. Australia

-37.7370°, 143.3478°

10recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789105/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colourless
Streak
White
Density
2.15 g/cm³

Optical

Optical type
Biaxial (-) · 2V measured = 40° · 2V calc = 34°
Refractive index
1.549 – 1.571
Surface relief
Moderate
Principal indices
nα 1.549 · nβ 1.569 · nγ 1.571
Dispersion
none
Michel-Lévy diagramhighlighted lineδ = 0.0220
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]220 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation220 nm
Order1st order
XPL colour

Crystallography

Crystal system
Orthorhombic
Space group
#34
Cell parameters
a = 5.606 Å · b = 8.758 Å · c = 4.788 Å
Ratio a:b:c
1 : 1.562 : 0.854
Z
2
Morphology

Rhombic crystals.

Type-locality form

Small rhombic, transparent crystals.

Comment

Cell parameters from Mrose 1971.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen515.99979.995
51.50%
15PPhosphorusPhosphorus130.97430.974
19.94%
12MgMagnesiumMagnesium124.30524.305
15.65%
7NNitrogenNitrogen114.00714.007
9.02%
1HHydrogenHydrogen61.0086.048
3.89%
Total155.329100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dittmariet

In other languages

German
Dittmarit
Italian
Dittmarite

Classification

Strunz
10th ed.

8.CH.20

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CHWith large and medium-sized cations, RO4:H2O < 1:1Group
  • 8.CH.20DittmariteSpecies
Dana
8th ed.

40.01.02.01

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.01AB(XO4)·xH2OType
  • 40.01.02— unnamed intermediate level —Group
  • 40.01.02.01DittmariteSpecies
CIM

19.3.22

  • 19PhosphatesClass
  • 19.3Phosphates of Be and MgGroup
  • 19.3.22DittmariteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1887MacIvor, R.W.E. (1887) On Australian bat guano and some minerals occurring therein. The Chemical News and Journal of Industrial Science, London: 55: 215-216.
  2. 1902MacIvor, R.W.E. (1902) On minerals occurring in Australian bat guano. The Chemical News and Journal of Industrial Science, London: 85: 181-182.
  3. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  4. 1971Mrose, M.E. (1971) New mineral data for hydrated phosphates and sulfates. U.S. Geological Survey: Professional Paper: 750-A: 114-116. (change to chemical formula)
  5. 1972Fleischer, Michael (1972) New Mineral Names. American Mineralogist, 57 (7-8) 1311-1317
