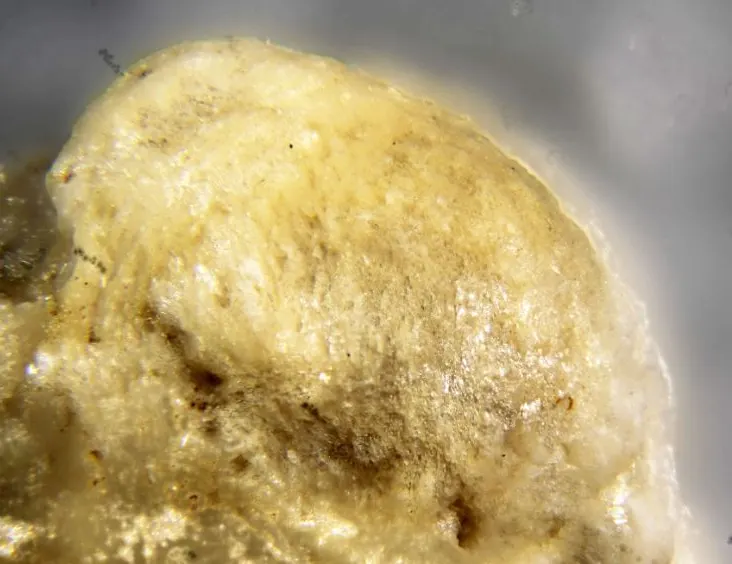

Dondoellite

Ca2Fe(PO4)2 · 2H2O
IMA status
  • Approved
IMA symbol
Ddl
Also known as
  • Dondoelliet
  • IMA2021-048

Where it forms, where it's found

Geological setting

Found in fracture fillings in quartz-phosphate veins cutting a sedimentary iron formation with marine phosphorites and shales. Its formation temperature is estimated to range from 50 to 200 °C.

Type locality
Grizzly Bear Creek
  1. Stoneman Camp
  2. Rapid Creek
  3. Dawson mining district
  4. Yukon
  5. Canada

68.5141°, -136.9479°

3recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5 – 4/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent
Colour
Colorless to pale yellow
Streak
White
Tenacity
brittle
Cleavage
Perfect

(001)

Density
3.14 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 55° · 2V calc = 58°
Refractive index
1.649 – 1.672
Surface relief
High
Principal indices
nα 1.649 · nβ 1.654 · nγ 1.672
Dispersion
Weak, r > v.
Michel-Lévy diagramhighlighted lineδ = 0.0230
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]230 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation230 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 5.4830(2) Å · b = 5.7431(2) Å · c = 13.0107(5) Å
Cell angles
α = 98.772(2) ° · β = 96.209(2) ° · γ = 108.452(2) °
Ratio a:b:c
1 : 1.047 : 2.373
Z
2
Morphology

Spherical aggregates of radiating bladed crystals.

Twinning

None.

Parting
None
Type-locality form

Spherical aggregates (diameters up to 2 cm) of radiating bladed crystals. Individual crystals are up to 0.80 x 0.10 x 0.03 mm in size.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
44.20%
20CaCalciumCalcium240.07880.156
22.15%
15PPhosphorusPhosphorus230.97461.948
17.11%
26FeIronIron155.84555.845
15.43%
1HHydrogenHydrogen41.0084.032
1.11%
Total361.971100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Dondoelliet
  • IMA2021-048

In other languages

German
Dondoellit · IMA 2021-048

Classification

Strunz
10th ed.

8.CG

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CGDondoelliteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 2021Miyawaki, Ritsuro, Hatert, Frédéric, Pasero, Marco, Mills, Stuart J. (2021) IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) CNMNC Newsletter No 63. Mineralogical Magazine, 85 (6) 910-915 doi:10.1180/mgm.2021.74 DOI: 10.1180/mgm.2021.74
  2. 2022(2022) Dondoellite. Handbook of Mineralogy. Mineralogical Society of America
  3. 2022Yang, Hexiong, Gibbs, Ronald B., McGlasson, James A., Jenkins, Robert A., Downs, Robert T. (2022) Dondoellite, Ca2Fe(PO4)2·2H2O, a New Mineral Species Polymorphic with Messelite, from Rapid Creek, Yukon, Canada. The Canadian Mineralogist, 60 (5) 837-847 doi:10.3749/canmin.2200013 DOI: 10.3749/canmin.2200013
  4. 2024Biagioni, C., Mugnaioli, E., Lorenzon, S., Mauro, D., Musetti, S., Sejkora, J., Belmonte, D., Demitri, N., Dolníček, Z. (2024) Nannoniite, IMA 2024-010, in IMA Commission on New Minerals, Nomenclature and Classification (CNMNC) – Newsletter 80. European Journal of Mineralogy, 36 (4). 599-604 doi:10.5194/ejm-36-599-2024DOI: 10.5194/ejm-36-599-2024
