Messelite

Ca2Fe2+(PO4)2 · 2H2O
IMA status
  • Approved
  • Grandfathered
IMA symbol
Msl
Discovered
1889
Also known as
  • Messeliet
  • Neomesselite
  • Parbigite

Where it forms, where it's found

Geological setting

Bituminous clay.

Granite pegmatite

Type locality
Messel Mine
  1. Messel
  2. Darmstadt-Dieburg
  3. Darmstadt
  4. Hesse
  5. Germany

49.9185°, 8.7586°

42recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789103.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
White · pale gray white · creamy white
Streak
White
Tenacity
brittle
Cleavage
Perfect

(001)

Fracture or cleavage surfaces may be curved

Fracture
Sub-Conchoidal
Density
3.15 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 20 – 35° · 2V calc = 62°
Refractive index
1.644 – 1.68
Surface relief
High
Principal indices
nα 1.644 – 1.654 · nβ 1.649 – 1.659 · nγ 1.660 – 1.680
Birefringence
0.021
Pleochroism
Non-pleochroic
Dispersion
relatively strong
UV response
Not known to be fluorescent in UV.
Michel-Lévy diagramhighlighted lineδ = 0.0210
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]210 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation210 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
P-1
Cell parameters
a = 5.480(1) Å · b = 5.759(1) Å · c = 6.569(1) Å
Cell angles
α = 90.18(3) ° · β = 102.62(3) ° · γ = 108.45(3) °
Ratio a:b:c
1 : 1.051 : 1.199
Z
1
Morphology

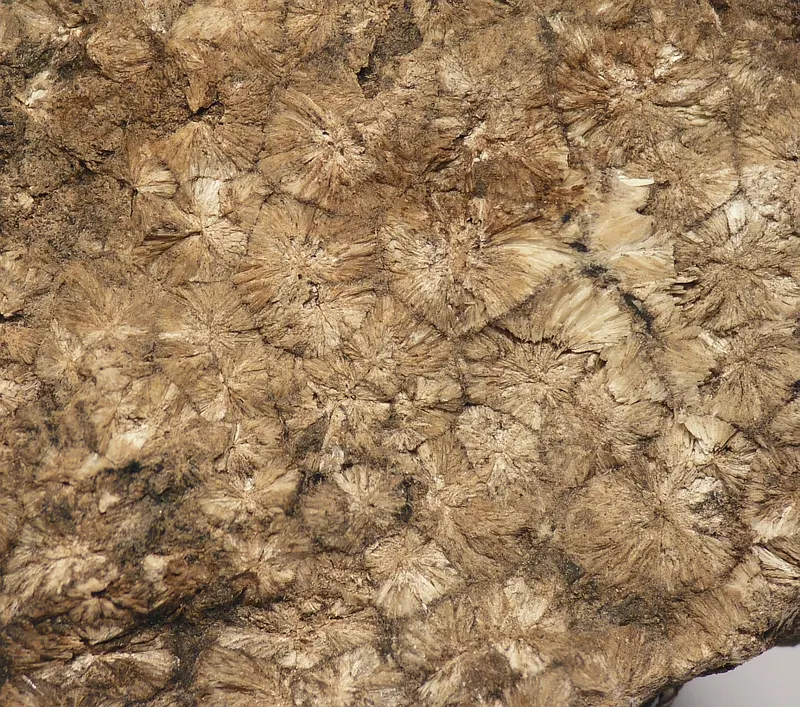

Crystals aggregated into crude stellate bunches.

Type-locality form

Radiating blades in indurated clay slate.

Comment

Cell data from Fleck and Kolitsch (2003).

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
44.20%
20CaCalciumCalcium240.07880.156
22.15%
15PPhosphorusPhosphorus230.97461.948
17.11%
26FeIronIron155.84555.845
15.43%
1HHydrogenHydrogen41.0084.032
1.11%
Total361.971100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Messeliet
  • Neomesselite
  • Parbigite

In other languages

French
messelite
German
Messelit
Spanish
Messelita
Italian
messelite
Arabic
ميسلايت · ميسيليت

Classification

Strunz
10th ed.

8.CG.05

  • 8Phosphates, Arsenates, VanadatesClass
  • 8.CPhosphates without additional anions, with H2ODivision
  • 8.CGWith large and medium-sized cations, RO4:H2O = 1:1Group
  • 8.CG.05MesseliteSpecies
Dana
8th ed.

40.02.02.02

  • 40Hydrated Normal Phosphates, Arsenates and VanadatesClass
  • 40.02AB2(XO4)2·xH2OType
  • 40.02.02Fairfieldite Subgroup (Triclinic: P-1¯)Group
  • 40.02.02.02MesseliteSpecies
CIM

19.12.40

  • 19PhosphatesClass
  • 19.12Phosphates of MnGroup
  • 19.12.40MesseliteSpecies

Group, growth & confusion

In the same group
1 members
Often grow together
4 minerals
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1890Muthmann, W. (1890) Messelit, ein neues mineral. Zeitschrift für Krystallographie und Mineralogie: 17: 93-94.
  2. 1951Palache, Charles; Berman, Harry; Frondel, Clifford (1951) The System of Mineralogy (7th ed.) Vol. 2 - Halides, Nitrates, Borates, Carbonates, Sulfates, Phosphates, Arsenates, Tungstates, Molybdates, Etc. John Wiley and Sons.
  3. 1955Frondel, Clifford (1955) Neomesselite and beta-roselite: Two new members of the fairfieldite group. American Mineralogist, 40 (9-10) 828-833
  4. 1959Fleischer, M. (1959) New Mineral Names. American Mineralogist, 44 (3-4). 464-470
  5. 2002Fleck, Michel, Kolitsch, U., Hertweck, B. (2002) Natural and synthetic compounds with kröhnkite-type chains: review and classification. Zeitschrift für Kristallographie, 217 (9). 435-443 doi:10.1524/zkri.217.9.435.22883DOI: 10.1524/zkri.217.9.435.22883
