Effenbergerite

BaCuSi4O10
IMA status
  • Approved
IMA symbol
Efb
Discovered
1993
IMA approved
1993
Also known as
  • Effenbergeriet
  • IMA1993-036

Where it forms, where it's found

Geological setting

Hydrothermal, with a maximum temperature of 450°C.

Type locality
Wessels Mine
  1. Joe Morolong Local Municipality
  2. John Taolo Gaetsewe District Municipality
  3. Northern Cape
  4. South Africa

-27.1135°, 22.8544°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789104 – 5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Lustre
Vitreous · Resinous
Transparency
Transparent · Translucent

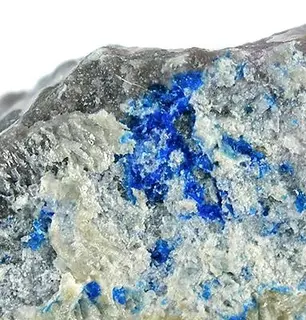

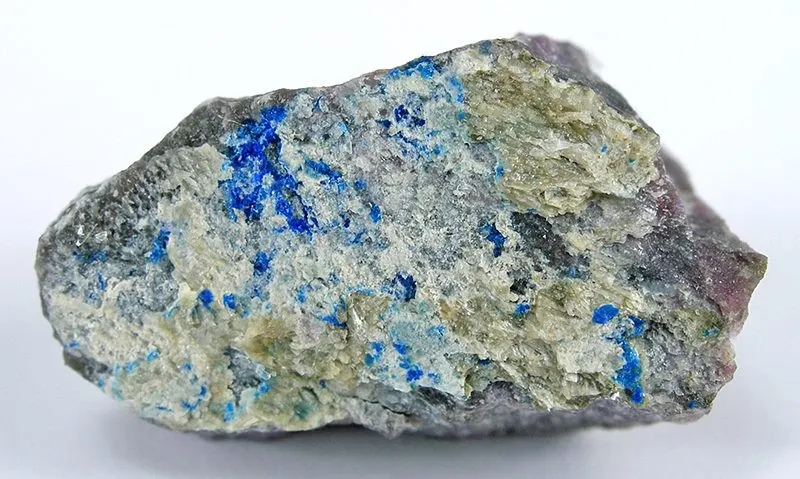

Colour
Blue

Similar to linarite in color.

Streak
Light blue
Tenacity
brittle
Cleavage
Perfect

Perfect parallel to (001). Also a very poor cleavage parallel {1l0} that is usually not readily recognized.

Fracture
Sub-Conchoidal
Density
3.51 g/cm³

Optical

Optical type
Uniaxial (-)
Refractive index
1.593 – 1.633
Surface relief
Moderate
Principal indices
nω 1.633 · nε 1.593
Pleochroism
Strong

Dark blue in O and pale blue to nearly colorless in E.

Dispersion
Weak, r > v
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0400
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]400 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation400 nm
Order1st order
XPL colour

Crystallography

Crystal system
Tetragonal
Space group
#184
Cell parameters
a = 7.44 Å · c = 16.13 Å
Morphology

The form (001) is always present, at least as a cleavage plane. Sometimes the forms (100), {1l0}, and (102) are developed.

Twinning

Not observed in type material.

Type-locality form

Subhedral plates with maximum dimensions 8 x 8 x 0.1 mm.

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1015.999159.990
33.81%
56BaBariumBarium1137.327137.327
29.02%
14SiSiliconSilicon428.085112.340
23.74%
29CuCopperCopper163.54663.546
13.43%
Total473.203100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Effenbergeriet
  • IMA1993-036

In other languages

German
Effenbergerit · IMA 1993-036
Italian
Effenbergerite
Chinese
硅铜钡石

Classification

Strunz
10th ed.

9.EA.05

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.EASingle nets of tetrahedra with 4-, 5-, (6-), and 8-membered ringsGroup
  • 9.EA.05EffenbergeriteSpecies
Dana
8th ed.

71.02.03.03

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.03Cuprorivaite groupGroup
  • 71.02.03.03EffenbergeriteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 1990Janczak, J., Kubiak, R., Głowiak, T. (1990) Structure of barium copper pyrosilicate at 300 K. Acta Crystallographica Section C Crystal Structure Communications, 46 (8) 1383-1385 doi:10.1107/s0108270189012618DOI: 10.1107/s0108270189012618
  2. 1992Janczak, J., Kubiak, R. (1992) Refinement of the structure of barium copper silicate BaCu[Si4O10] at 300 K. Acta Crystallographica Section C Crystal Structure Communications, 48 (7) 1299-1301 doi:10.1107/s0108270191014580DOI: 10.1107/s0108270191014580
  3. 1992Lin, H. C., Liao, F. L., Wang, S. L. (1992) Structure of BaCuSi4O10. Acta Crystallographica Section C Crystal Structure Communications, 48 (7) 1297-1299 doi:10.1107/s0108270192001203DOI: 10.1107/s0108270192001203
  4. 1993Chakoumakos, Bryan C., Fernandez-Baca, Jaime A., Boatner, Lynn A. (1993) Refinement of the Structures of the Layer Silicates MCuSi4O10 (M = Ca, Sr, Ba) by Rietveld Analysis of Neutron Powder Diffraction Data. Journal of Solid State Chemistry, 103. 105-113 doi:10.1006/jssc.1993.1083DOI: 10.1006/jssc.1993.1083
  5. 1994Giester, G., Rieck, B. (1994) Effenbergerite, BaCu[Si4O10], a new mineral from the Kalahari Manganese Field, South Africa: description and crystal structure. Mineralogical Magazine, 58 (393) 663-670 doi:10.1180/minmag.1994.058.393.17 DOI: 10.1180/minmag.1994.058.393.17
