Ferrisurite

Pb2.4Fe3+2Si4O10(CO3)1.7(OH)3 · nH2O
IMA status
  • Approved
IMA symbol
Fsur
Discovered
1989
Also known as
  • Ferrisuriet
  • IMA1990-056

Where it forms, where it's found

Geological setting

Oxidized lead deposit in contact metamorphosed impure limestone, as an oxidation product of silicates proximate to galena.

Type locality
Shirley Ann group
  1. Big Dodd Spring
  2. Ubehebe Mining District
  3. Cottonwood Mountains
  4. Panamint Range (Panamint Mountains)
  5. Inyo County
  6. California
  7. USA

36.5711°, -117.5753°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 2.5/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Forest-green to light yellow-green
Streak
Greenish yellow to olive-green
Tenacity
flexible
Cleavage
Perfect

(010)

Density
4.0 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 76° · 2V calc = 76°
Refractive index
1.757 – 1.773
Surface relief
High
Principal indices
nα 1.757 · nβ 1.763 · nγ 1.773
Pleochroism
Visible

X = yellow; Y = brown; Z = light green

Dispersion
r > v
Michel-Lévy diagramhighlighted lineδ = 0.0160
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]160 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation160 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Cell parameters
a = 5.24 Å · b = 9.07 Å · c = 16.23 Å
Cell angles
β = 90.03 °
Ratio a:b:c
1 : 1.731 : 3.097
Z
2
Type-locality form

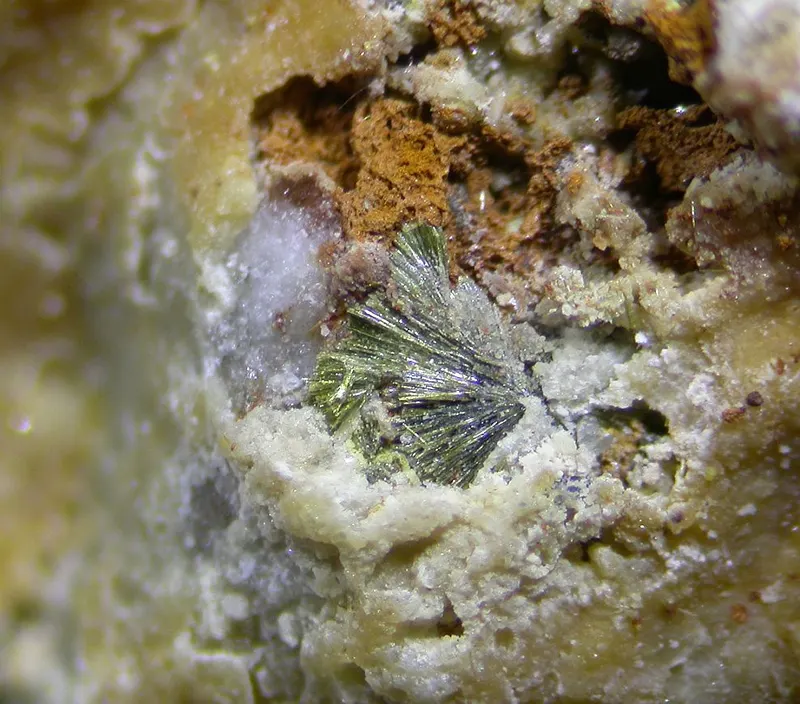

Compact radial aggregates of forest green fibers embedded in quartz and cerussite and tapering feathery yellow-green crystals in radiating groups in vugs. Crystal sizes range up to 2 mm (a) x 0.01 mm (b) x 0.04 mm (c).

Comment

Point Group: 2 or 2/m:; Space Group: P21 or P21 /m:

Chemical composition

Impurities
  • Na
  • Mg
  • Ba
  • Pb

Synonyms

  • Ferrisuriet
  • IMA1990-056

In other languages

German
Ferrisurit · IMA 1990-056
Italian
Ferrisurite

Classification

Strunz
10th ed.

9.EC.75

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.75FerrisuriteSpecies
Dana
8th ed.

71.02.04.01

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.04Surite groupGroup
  • 71.02.04.01FerrisuriteSpecies

Group, growth & confusion

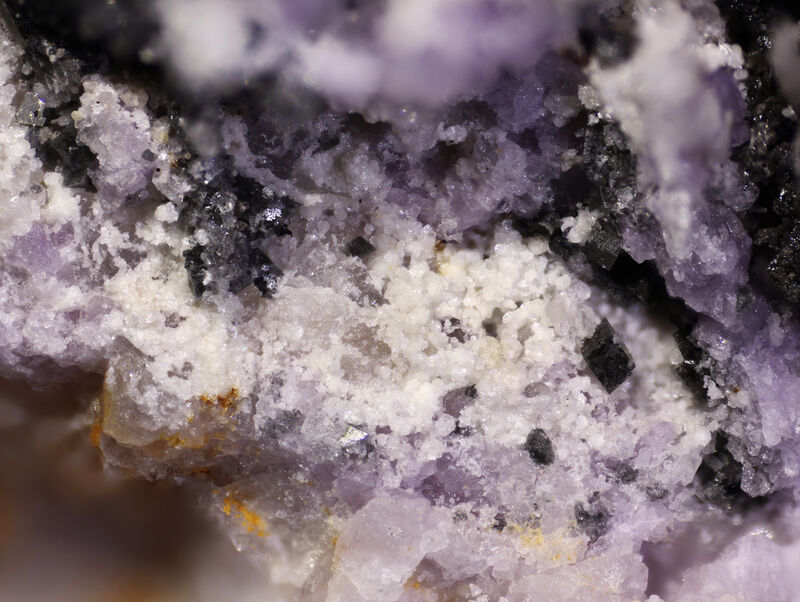

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1992Kampf, Anthony R., Jackson, Larry L., Sidder, Gary B., Foord, Eugene E., Adams, Paul M. (1992) Ferrisurite, the Fe3+ analogue of surite, from Inyo County, California. American Mineralogist, 77 (9-10) 1107-1111
  2. 2001(2001) Ferrisurite. Handbook of Mineralogy. Mineralogical Society of America
