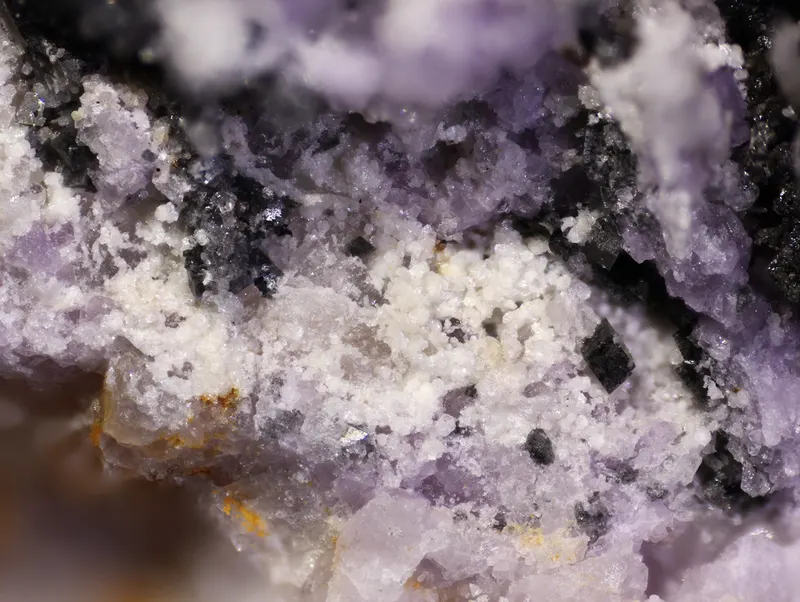

Surite

(Pb,Ca)3Al2(Si,Al)4O10(CO3)2(OH)3 · 0.3H2O
IMA status
  • Approved
IMA symbol
Sur
Discovered
1977
IMA approved
1977
Also known as
  • IMA1977-037
  • Suriet

Where it forms, where it's found

Geological setting

Oxidation zone of the lead-zinc-copper deposit

Type locality
Cruz del Sur mine
  1. Veinticinco de Mayo Department
  2. Río Negro Province
  3. Argentina

-40.8333°, -68.1167°

7recorded occurrences
Source · OpenStreetMap

Safety & handling

Physical

Hardness
123456789102 – 3/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Translucent
Colour
White · light green
Streak
White
Cleavage
Perfect

(001)

Density
4.0 g/cm³

Optical

Optical type
Biaxial
Refractive index
1.693 – 1.738
Surface relief
High
Principal indices
nα 1.693 · nγ 1.738
Dispersion
weak to distinct
Michel-Lévy diagramhighlighted lineδ = 0.0450
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]450 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation450 nm
Order1st order
XPL colour

Crystallography

Crystal system
Monoclinic
Space group
P21
Cell parameters
a = 5.219(2) Å · b = 8.968(2) Å · c = 16.190(2) Å
Cell angles
β = 90.13(5) °
Ratio a:b:c
1 : 1.718 : 3.102
Z
2
Type-locality form

Compact aggregate

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
82PbLeadLead3207.200621.600
45.96%
8OOxygenOxygen19.315.999308.781
22.83%
13AlAluminiumAluminium626.982161.892
11.97%
20CaCalciumCalcium340.078120.234
8.89%
14SiSiliconSilicon428.085112.340
8.30%
6CCarbonCarbon212.01124.022
1.78%
1HHydrogenHydrogen3.61.0083.629
0.27%
Total1352.497100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Impurities
  • Cu
  • Na
  • H2O

Synonyms

  • IMA1977-037
  • Suriet

In other languages

German
IMA 1977-037 · Surit
Italian
Surite

Classification

Strunz
10th ed.

9.EC.75

  • 9SilicatesClass
  • 9.EPhyllosilicatesDivision
  • 9.ECPhyllosilicates with mica sheets, composed of tetrahedral and octahedral netsGroup
  • 9.EC.75SuriteSpecies
Dana
8th ed.

71.02.04.02

  • 71Phyllosilicates Sheets of Six-membered RingsClass
  • 71.02Sheets of 6-membered rings with 2:1 layersType
  • 71.02.04Surite groupGroup
  • 71.02.04.02SuriteSpecies
CIM

17.4.14

  • 17Silicates Containing other AnionsClass
  • 17.4Silicates with carbonatesGroup
  • 17.4.14SuriteSpecies

Group, growth & confusion

Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1978Hayase, Kitaro, Dristas, Jorge A., Tsutsumi, Sadao, Otsuka, Ryohei, Tanabe, Sachio, Sudo, Toshio, Nishiyama, Tsutomu (1978) Surite, a new Pb-rich layer silicate mineral. American Mineralogist, 63 (11-12) 1175-1181
  2. 1997Uehara, Motoki, Yamazaki, Atsushi, Tsutsumi, Sadao (1997) Surite; its structure and properties. American Mineralogist, 82 (3) 416-422 doi:10.2138/am-1997-3-419 DOI: 10.2138/am-1997-3-419
  3. 2001(2001) Surite. Handbook of Mineralogy. Mineralogical Society of America
