Ferroindialite

(Fe2+,Mg)2Al4Si5O18
IMA status
  • Approved
IMA symbol
Find
Also known as
  • Ferroindialiet
  • IMA2013-016

Where it forms, where it's found

Geological setting

In a burnt xenolith of pelitic rock among alkaline basalts.

Type locality
Caspar quarry
  1. Ettringen
  2. Vordereifel
  3. Mayen-Koblenz
  4. Rhineland-Palatinate
  5. Germany

50.3525°, 7.2335°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789107/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Brownish-violet to gray with violet-blue tint
Streak
White
Tenacity
brittle
Cleavage
None Observed
Fracture
Conchoidal
Density
2.66 g/cm³

Optical

Optical type
Biaxial (-)
Refractive index
1.539 – 1.554
Surface relief
Moderate
Principal indices
nα 1.539 · nβ 1.552 · nγ 1.554
Pleochroism
Weak

X = colorless, Z = pale violet.

Dispersion
Weak, r < v
Michel-Lévy diagramhighlighted lineδ = 0.0150
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]150 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation150 nm
Order1st order
XPL colour

Crystallography

Crystal system
Hexagonal
Space group
P6/mcc
Cell parameters
a = 9.8759(3) Å · c = 9.3102(3) Å
Unit cell volume
786.4 ų
Z
2
Morphology

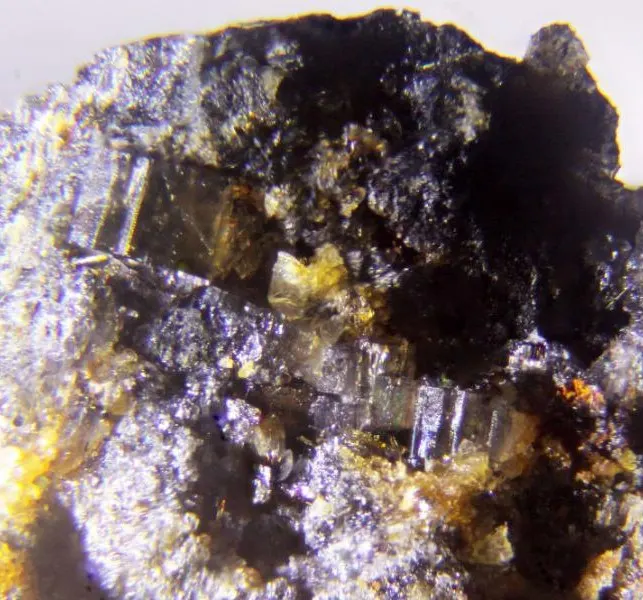

Short prismatic or thick tabular hexagonal crystals.

Type-locality form

Short prismatic or thick tabular hexagonal crystals up to 1.5 mm in size

Crystal structure

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1815.999287.982
41.34%
14SiSiliconSilicon528.085140.425
20.16%
26FeIronIron255.845111.690
16.03%
13AlAluminiumAluminium426.982107.928
15.49%
12MgMagnesiumMagnesium224.30548.610
6.98%
Total696.635100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferroindialiet
  • IMA2013-016

In other languages

German
Ferroindialith · IMA 2013-016
Italian
ferroindialite

Classification

Strunz
10th ed.

9.CJ.05

  • 9SilicatesClass
  • 9.CCyclosilicatesDivision
  • 9.CJ[Si6O18]12- 6-membered single rings (sechser-Einfachringe), without insular complex anionsGroup
  • 9.CJ.05FerroindialiteSpecies

Group, growth & confusion

In the same group
4 members
Commonly confused with
1 mineral

Literature, links & citation

Citations
  1. 1982Kitamura, Masao, Hiroi, Yoshikuni (1982) Indialite from Unazuki Pelitic Schist, Japan, and its transition texture to cordierite. Contributions to Mineralogy and Petrology, 80 (2) 110-116 doi:10.1007/bf00374888DOI: 10.1007/bf00374888
  2. 2013Williams, P. A., Hatert, F., Pasero, M., Mills, S. J. (2013) New minerals and nomenclature modifications approved in 2013. CNMNC Newsletter No 16. Mineralogical Magazine, 77 (6) 2695-2709 doi:10.1180/minmag.2013.077.6.01DOI: 10.1180/minmag.2013.077.6.01
  3. 2014Chukanov, N.V., Aksenov, S.M., Pekov, I.V., Ternes, В., Schüller, W., Belakovskiy, D.I., Van, K.V., Blass, G. (2014): Ferroindialite (Fe2+,Mg)2Al4Si5O18, a new beryl-group mineral from the Eifel volcanic region, Germany. Zapiski RMO, 143, 46-56.
  4. 2014Haefeker, Udo, Kaindl, Reinhard, Tropper, Peter, Krüger, Hannes, Kahlenberg, Volker, Orlova, Maria (2014) Structural investigations of the two polymorphs of synthetic Fe-cordierite and Raman spectroscopy of hexagonal Fe-cordierite. Mineralogy and Petrology, 108 (4) 469-478 doi:10.1007/s00710-013-0313-3DOI: 10.1007/s00710-013-0313-3
  5. 2014Chukanov, N. V., Aksenov, S. M., Pekov, I. V., Ternes, B., Schüller, W., Belakovskiy, D. I., Van, K. V., Blass, G. (2014) Ferroindialite (Fe2+,Mg)2Al4Si5O18, a new beryl-group mineral from the Eifel volcanic region, Germany. Geology of Ore Deposits, 56 (8) 637-643 doi:10.1134/s1075701514080029DOI: 10.1134/s1075701514080029
