Ferrorhodonite

CaMn3Fe(Si5O15)
IMA status
  • Approved
IMA symbol
Frdn
Discovered
2015
IMA approved
2016
Also known as
  • Ferrorhodoniet
  • IMA2016-016

Where it forms, where it's found

Type locality
Broken Hill South Mine (BHS Mine
  1. South Mine)
  2. Broken Hill
  3. Broken Hill district
  4. Yancowinna Co.
  5. New South Wales
  6. Australia

-31.9769°, 141.4558°

6recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Transparency
Transparent · Translucent
Colour
Brown-red · pinkish-brown
Streak
White
Tenacity
brittle
Cleavage
Perfect

Perfect on (201), good on (021) and (210) (according to optical data; indexed by analogy with rhodonite).

Fracture
Step-Like
Density
3.71 g/cm³

Optical

Optical type
Biaxial (+) · 2V measured = 80° · 2V calc = 74°
Refractive index
1.731 – 1.745
Surface relief
High
Principal indices
nα 1.731 · nβ 1.736 · nγ 1.745
Pleochroism
Non-pleochroic

The mineral is colourless under the microscope.

Dispersion
r > v, distinct
UV response
Not fluorescent.
Michel-Lévy diagramhighlighted lineδ = 0.0140
Attainable Michel-Lévy rangeΔ ∈ [0, t·δmax]140 nm1st order
Δ = 0Δmax
Thin-section mosaic70 grains · random 3D orientations
PPLpleochroism per grain
XPLindependent extinctions · rotate the stage
Interference simulatorsingle grain · PPL ↔ XPL
PPLpleochroism only · colour blends on rotation
XPLinterference colour · extinct every 90°
Retardation140 nm
Order1st order
XPL colour

Crystallography

Crystal system
Triclinic
Space group
#2
Cell parameters
a = 6.6766 Å · b = 7.6754 Å · c = 11.8032 Å
Cell angles
α = 105.501 ° · β = 92.275 ° · γ = 93.919 °
Ratio a:b:c
1 : 1.150 : 1.768
Unit cell volume
580.44 ų
Z
1
Morphology

Well-shaped crystals were not observed, single-crystal grains are thick tabular to short prismatic, with rounded edges.

Twinning

Microtwinning is observed under the microscope; by analogy with rhodonite it is considered as a twinning on (111).

Parting
Perfect on (111), i.e. along the twinning plane.
Type-locality form

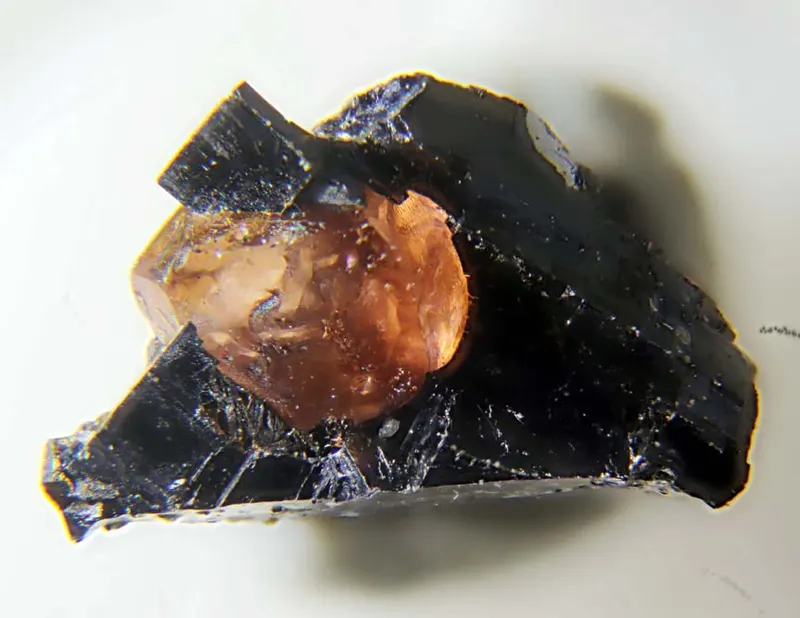

Ferrorhodonite forms granular aggregates composed by thick tabular to short prismatic crystals, with rounded edges,up to 2 cm across.

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
8OOxygenOxygen1515.999239.985
37.43%
25MnManganeseManganese354.938164.814
25.71%
14SiSiliconSilicon528.085140.425
21.90%
26FeIronIron155.84555.845
8.71%
20CaCalciumCalcium140.07840.078
6.25%
Total641.147100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Ferrorhodoniet
  • IMA2016-016

In other languages

German
Ferrorhodonit · IMA 2016-016

Classification

Strunz
10th ed.

9.DK

  • 9SilicatesClass
  • 9.DInosilicatesDivision
  • 9.DKInosilicates with 5-periodic single chainsGroup
  • 9.DKFerrorhodoniteSpecies

Group, growth & confusion

In the same group
3 members

Literature, links & citation

Citations
  1. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter 32. Mineralogical Magazine, 80 (5) 915-922 doi:10.1180/minmag.2016.080.084DOI: 10.1180/minmag.2016.080.084
  2. 2017Shchipalkina, Nadezhda V., Chukanov, Nikita V., Pekov, Igor V., Aksenov, Sergey M., McCammon, Catherine, Belakovskiy, Dmitry I., Britvin, Sergey N., Koshlyakova, Natalya N., Schäfer, Christof, Scholz, Ricardo, Rastsvetaeva, Ramiza K. (2017) Ferrorhodonite, CaMn3Fe[Si5O15], a new mineral species from Broken Hill, New South Wales, Australia. Physics and Chemistry of Minerals, 44 (5) 323-334 doi:10.1007/s00269-016-0860-3 DOI: 10.1007/s00269-016-0860-3
  3. 2019Shchipalkina, Nadezhda V., Pekov, Igor V., Chukanov, Nikita V., Biagioni, Cristian, Pasero, Marco (2019) Crystal chemistry and nomenclature of rhodonite-group minerals. Mineralogical Magazine, 83 (6) 829-835 doi:10.1180/mgm.2019.65DOI: 10.1180/mgm.2019.65
  4. 2020(2020) Ferrorhodonite. Handbook of Mineralogy. Mineralogical Society of America
