Folvikite

Sb5+Mn3+(Mg,Mn2+)10O8(BO3)4
IMA status
  • Approved
IMA symbol
Fvk
Discovered
1987
IMA approved
2016
Also known as
  • Folvikiet
  • IMA2016-026
  • Unnamed (Mg-Mn-Sb Oxyborate)

Where it forms, where it's found

Geological setting

Skarn

Type locality
Kitteln Mine
  1. Nordmark Odal Field
  2. Filipstad
  3. Värmland County
  4. Sweden

59.8321°, 14.1242°

1recorded occurrences
Source · OpenStreetMap

Physical

Hardness
123456789106/ 10 MOHS
  1. 1Talc
  2. 2Gypsum
  3. 3Calcite
  4. 4Fluorite
  5. 5Apatite
  6. 6Orthoclase
  7. 7Quartz
  8. 8Topaz
  9. 9Corundum
  10. 10Diamond
Colour
Black to dark reddish-brown
Streak
Reddish-brown
Tenacity
brittle
Density
4.14 g/cm³

Optical

Optical type
Biaxial
Pleochroism
Strong

Observed in plane-polarized light: AB = brown (intermediate), OB = dark brown (maximum), ON = honey brown (minimum).

Notes

Indeterminate optic sign due to pervasive twinning

Crystallography

Crystal system
Monoclinic
Space group
P2
Cell parameters
a = 5.377(1) Å · b = 6.211(1) Å · c = 10.939(2) Å
Cell angles
β = 94.399(9) °
Ratio a:b:c
1 : 1.155 : 2.034
Unit cell volume
364.22 ų
Z
1
Type-locality form

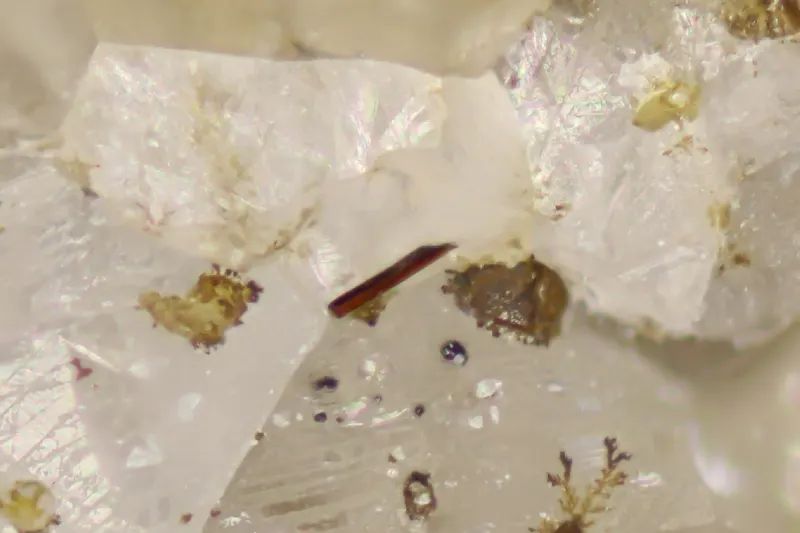

As striated prismatic crystals up to 0.3 mm in calcite

Chemical composition

Constituent elements
Mass composition breakdown
ElementAtoms At. mass g/mol Mass g/molMass share
25MnManganeseManganese1154.938604.318
45.36%
8OOxygenOxygen2015.999319.980
24.02%
12MgMagnesiumMagnesium1024.305243.050
18.24%
51SbAntimonyAntimony1121.760121.760
9.14%
5BBoronBoron410.81043.240
3.24%
Total1332.348100.00%

Mass share = atoms × atomic mass ÷ molar mass × 100

From IMA formula

Synonyms

  • Folvikiet
  • IMA2016-026
  • Unnamed (Mg-Mn-Sb Oxyborate)

In other languages

German
Folvikit · IMA 2016-026

Classification

Strunz
10th ed.

6.AB.35

  • 6BoratesClass
  • 6.AMonoboratesDivision
  • 6.ABBO3, with additional anions; 1(D) + OH, etc.Group
  • 6.AB.35FolvikiteSpecies

Group, growth & confusion

In the same group
4 members

Literature, links & citation

Citations
  1. 2013Raade, Gunnar, Folvik, Harald (2013) On an unnamed Mg-Mn-Sb oxyborate from the blatterite locality of the Kitteln Mine, Nordmark, Filipstad, Värmland, Sweden. Norsk Bergverksmuseum Skrift, 50. 49-54
  2. 2016Hålenius, U., Hatert, F., Pasero, M., Mills, S. J. (2016) New minerals and nomenclature modifications approved in 2016, CNMNC Newsletter 32. Mineralogical Magazine, 80 (5) 915-922 doi:10.1180/minmag.2016.080.084DOI: 10.1180/minmag.2016.080.084
  3. 2018Folvik, Harald O. (2018) Folvikitt-et nytt mineral fra Kittelgruvan i Nordmark, Filipstad [Folvikite - a new mineral from Kittelgruvan in Nordmark, Filipstad]. STEIN. Magasin for populærgeologi, 45 (3). 32-34
  4. 2018Cooper, Mark A., Raade, Gunnar, Ball, Neil A., Abdu, Yassir A., Hawthorne, Frank C., Rowe, Ralph (2018) Folvikite, Sb5+Mn3+(Mg,Mn2+)10O8(BO3)4, a new oxyborate mineral from the Kitteln mine, Nordmark ore district, Värmland, Sweden: description and crystal structure. Mineralogical Magazine, 82 (4) 821-836 doi:10.1180/minmag.2017.081.059 DOI: 10.1180/minmag.2017.081.059
  5. 2021(2021) Folvikite. Handbook of Mineralogy. Mineralogical Society of America
